5-Axis Taper Flanged Risers
Jergens 5-Axis Risers raise, position, and locate the part off the machine or rotary table so that the part is accessible for machining on all five sides.
Features, Benefits, & Product Specifications:
-
Materials & Finishes:
- 1018 Carbon Steel, Black Oxide
- Aluminum, Blue Anodized
-
Thickness Tolerance: ±0.002" (0.05mm)
-
Mounts to our QLS grids & tables using Fixture-Pro® Locating Keys & LHCS
-
Mounts to our 5-Axis Subplates with center bore, timing pin, & LHCS or QLS shoulder screws
Note(s):
Part No.'s 5RS200007 & 5RS200010 are designed to work with rotary tables. If intended for use on our 5-Axis Subplates, (4) extra mounting holes are needed. Call (877) 426-2504 for assistance.
5-Axis Taper Flanged Risers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Material | A (mm) | C (mm) | D (mm) | E Bottom Center Bore | Mounting Type | Mounting Grid | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5RS200007 |
|

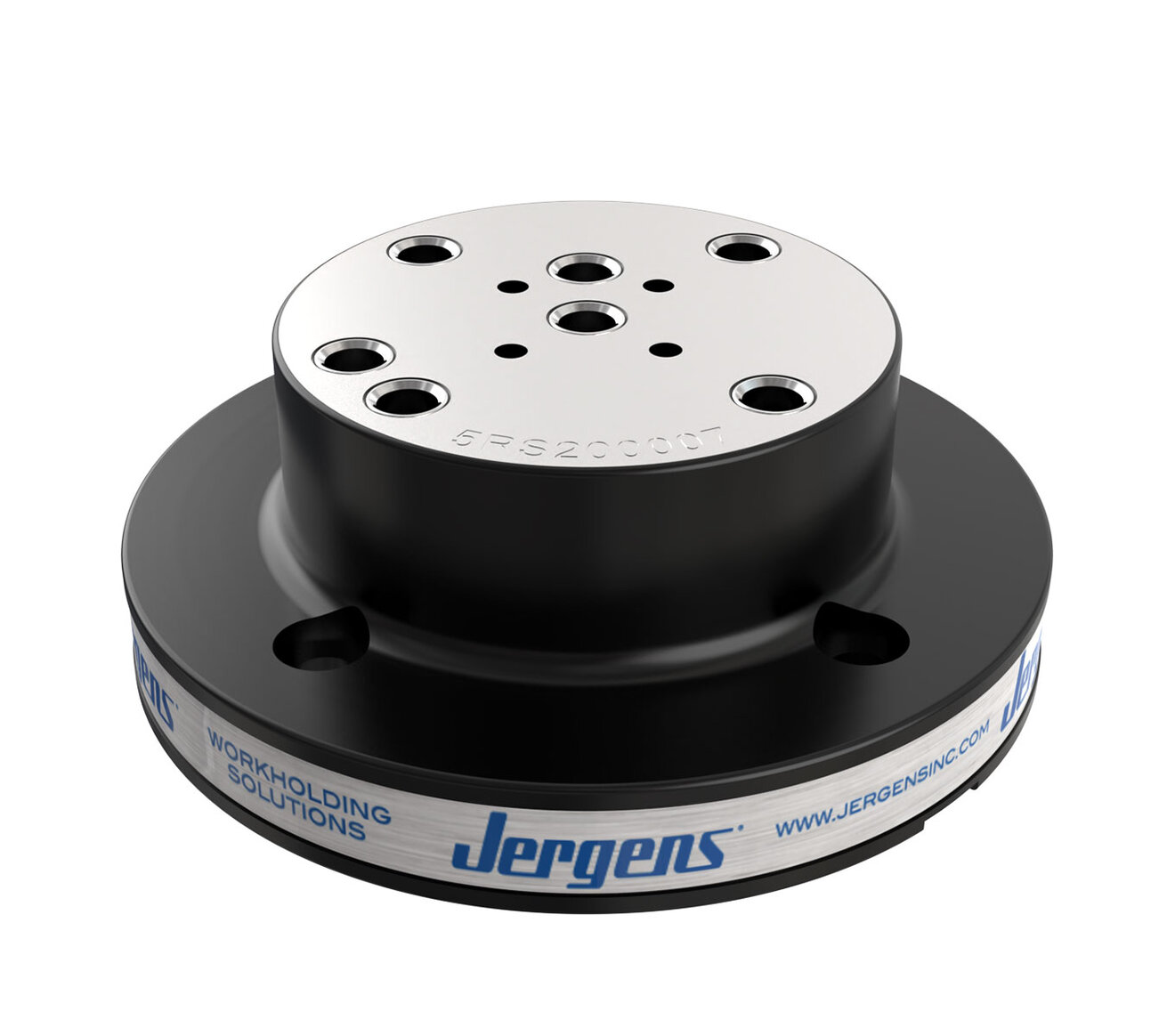

Metric | Straight Flanged | Steel | 200 | 75 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 10.9 |
| 5RS200008 |
|
Metric | Straight Flanged | Steel | 200 | 125 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 16.4 |
| 5RS200010 |
|
Metric | Straight Flanged | Aluminum | 200 | 75 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 3.8 |
| 5RS200011 |
|
Metric | Straight Flanged | Aluminum | 200 | 125 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 5.6 |
| 5RS250003 |
|

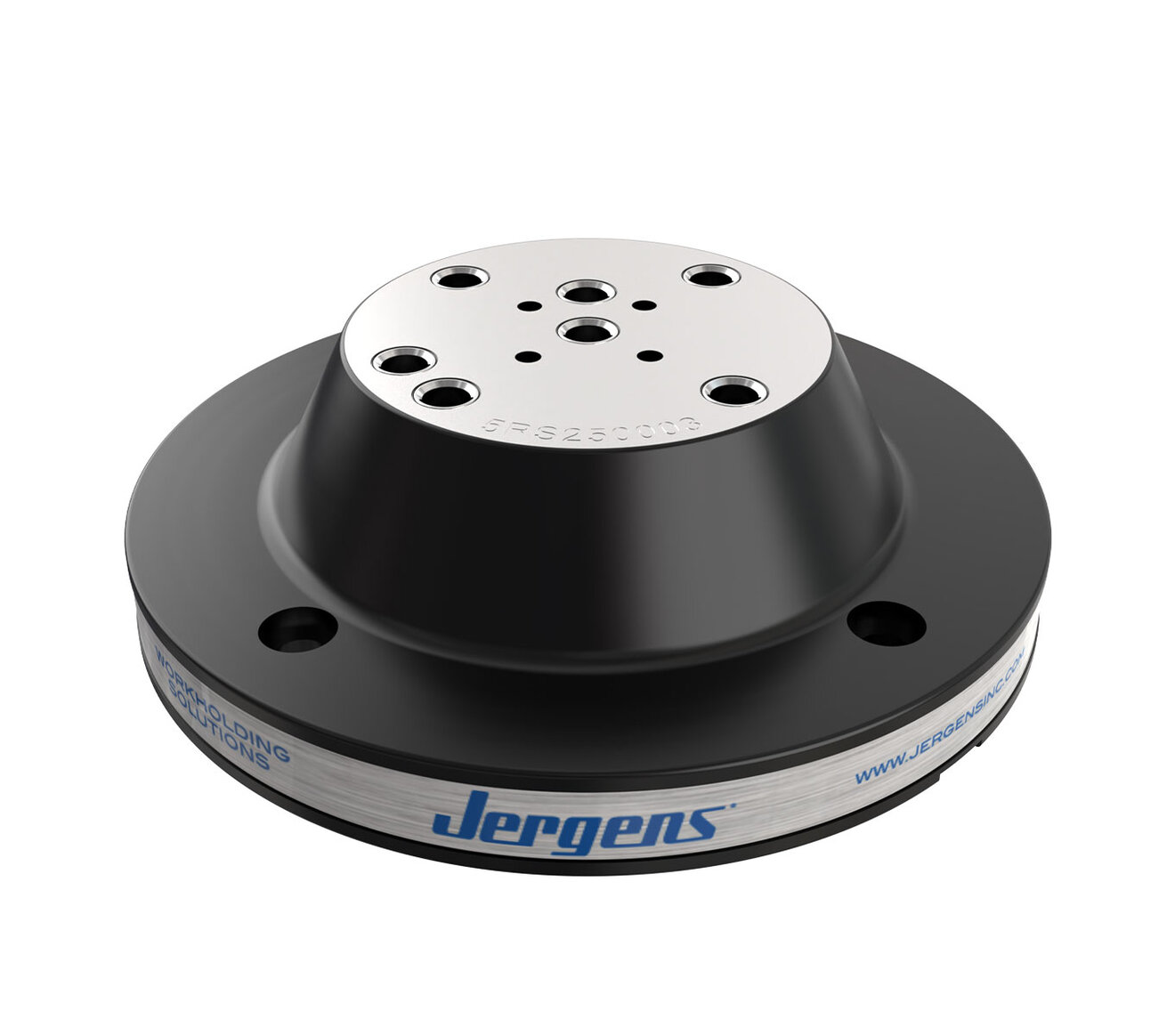

Metric | Tapered Flange | Steel | 250 | 75 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 16.7 |
| 5RS250004 |
|
Metric | Tapered Flange | Steel | 250 | 125 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 24.1 |
| 5RS250007 |
|
Metric | Tapered Flange | Aluminum | 250 | 75 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 5.78 |
| 5RS250008 |
|
Metric | Tapered Flange | Aluminum | 250 | 125 | 130 | Center (50H7), Keyway, Timing Pin | QLS, 12MM SHCS | 12MM X 50MM | 8.36 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
