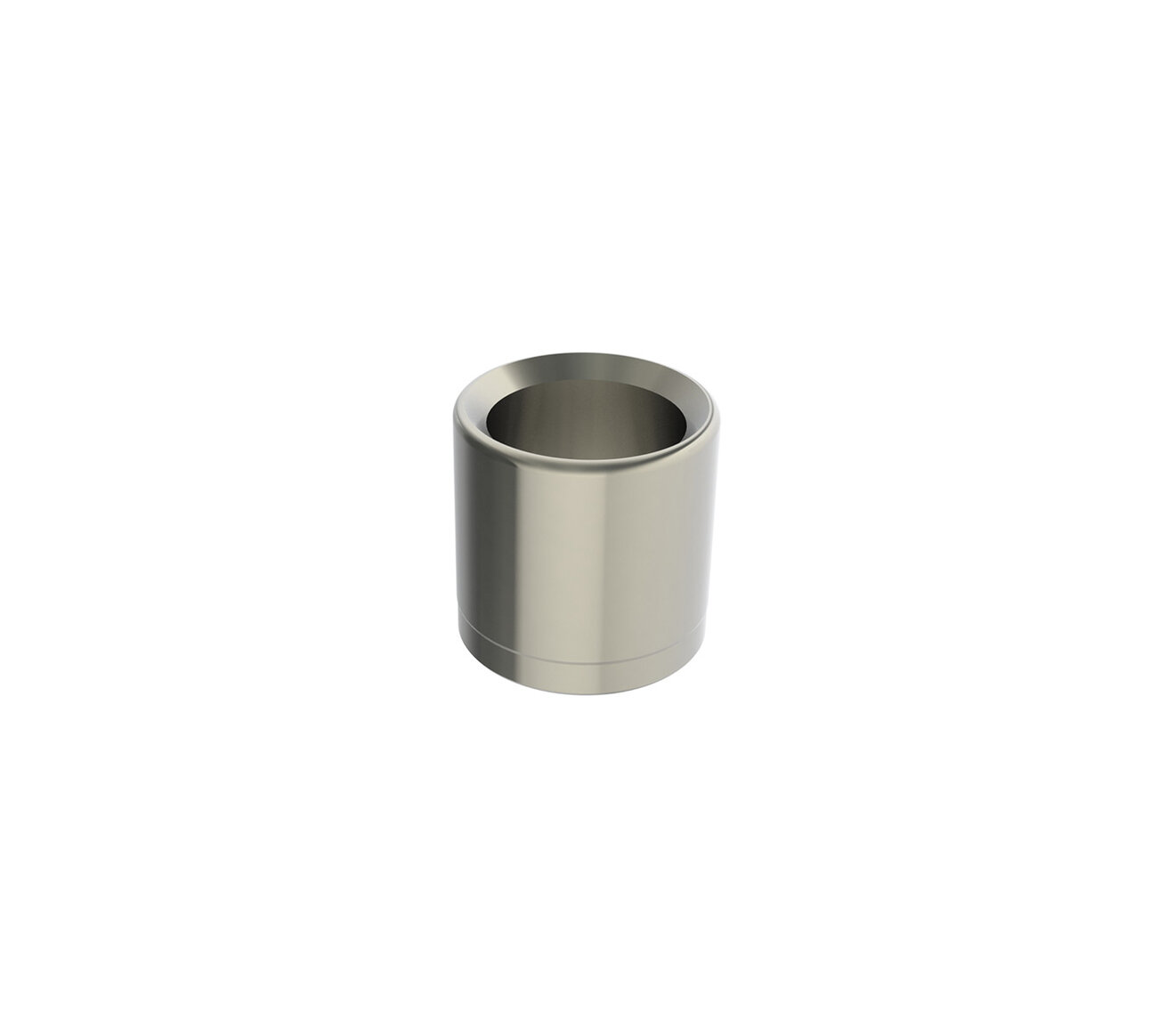

5-Axis Quick Locating System (QLS) Bushings
Jergens 5-Axis components allow users to mount directly to a T-slot with our special through-hole machine keys, QLS bushings, and QLS shoulder screws. All hardware mounting methods can quickly be converted over and mounted to a different machine tool the next time the components are used.
Features, Benefits, & Product Specifications:
-
Material: 1018 Carbon Steel
-
Finish: Hardened & Ground
-
Concentric within 0.0002" (0.005mm)
5-Axis Quick Locating System (QLS) Bushings
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|
| 5BS1210 |
|
Metric | 16 | 12 | 10 | 0.005 |
| 5BS1212 |
|
Metric | 16 | 12 | 12 | 0.009 |
| 5BS1216 |
|
Metric | 16 | 12 | 16 | 0.009 |
| 5BS1232 |
|
Metric | 16 | 12 | 32 | 0.023 |
