5-Axis Mini Style Risers
Jergens 5-Axis Risers raise, position, and locate the part off the machine or rotary table so that the part is accessible for machining on all five sides.
Features, Benefits, & Product Specifications:
-
Materials & Finishes:
- 1018 Carbon Steel, Black Oxide
- Aluminum, Anodized
-
Thickness Tolerance: ±0.002" (0.05mm)
-
Mounts to our QLS grids and tables using Fixture-Pro® Locating Keys & LHCS
-
Mounts to our 5-Axis Subplates with center bore, timing pin, & LHCS or QLS shoulder screws
Note(s):
5-Axis Mini Style Risers are designed for use with small pallet machine tools and the 75mm platform top tooling.
5-Axis Mini Style Risers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Material | A (mm) | B (mm) | C (mm) | D (mm) | Bottom Center Bore | Mounting Type | Grid | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5RS130001 |
|

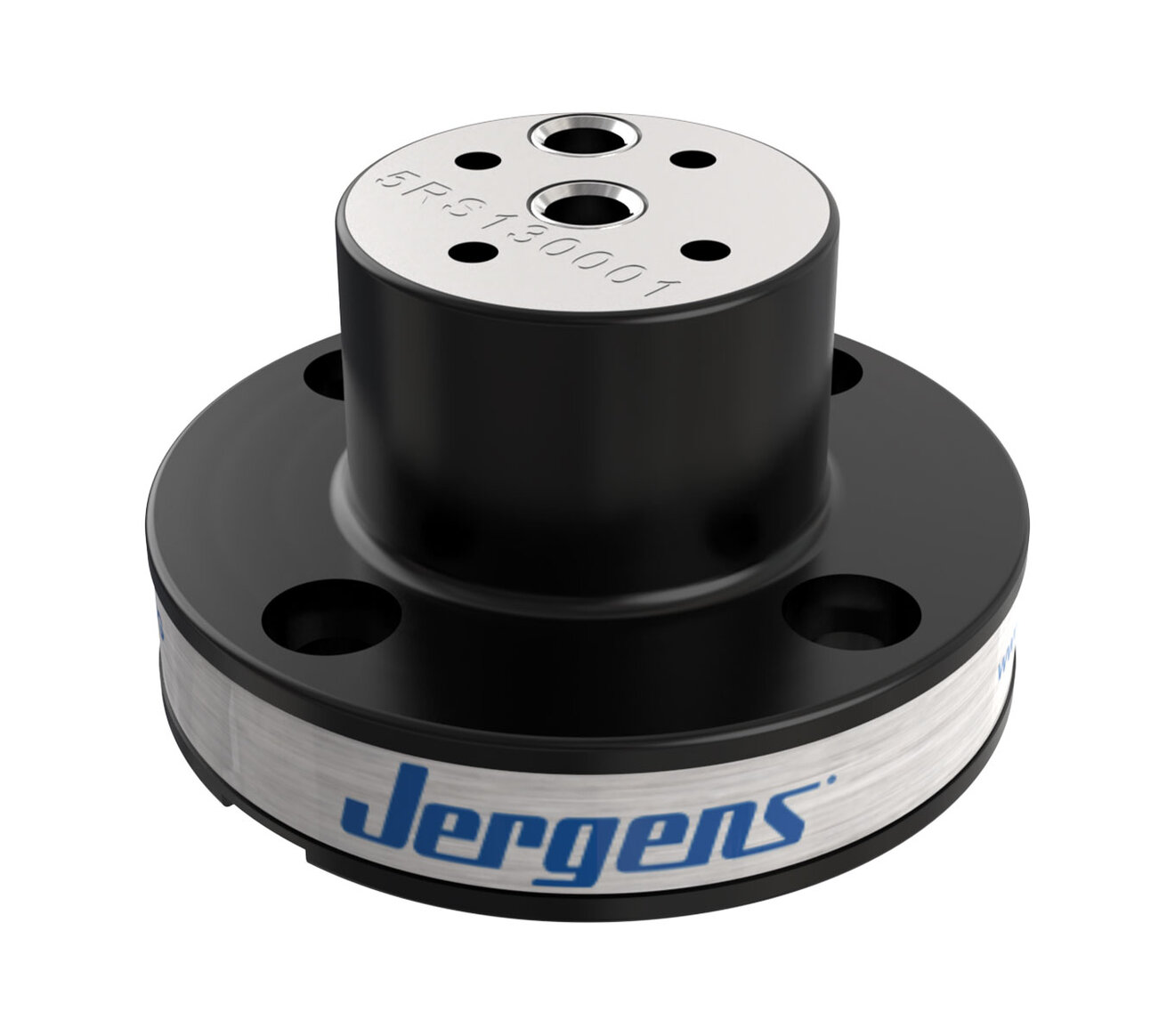

Metric | MINI | Steel | 130 | 50 | 75 | 70.3 | 50H7 | QLS, 12MM SHCS | 50mm x 50mm | 3.72 |
| 5RS130004 |
|

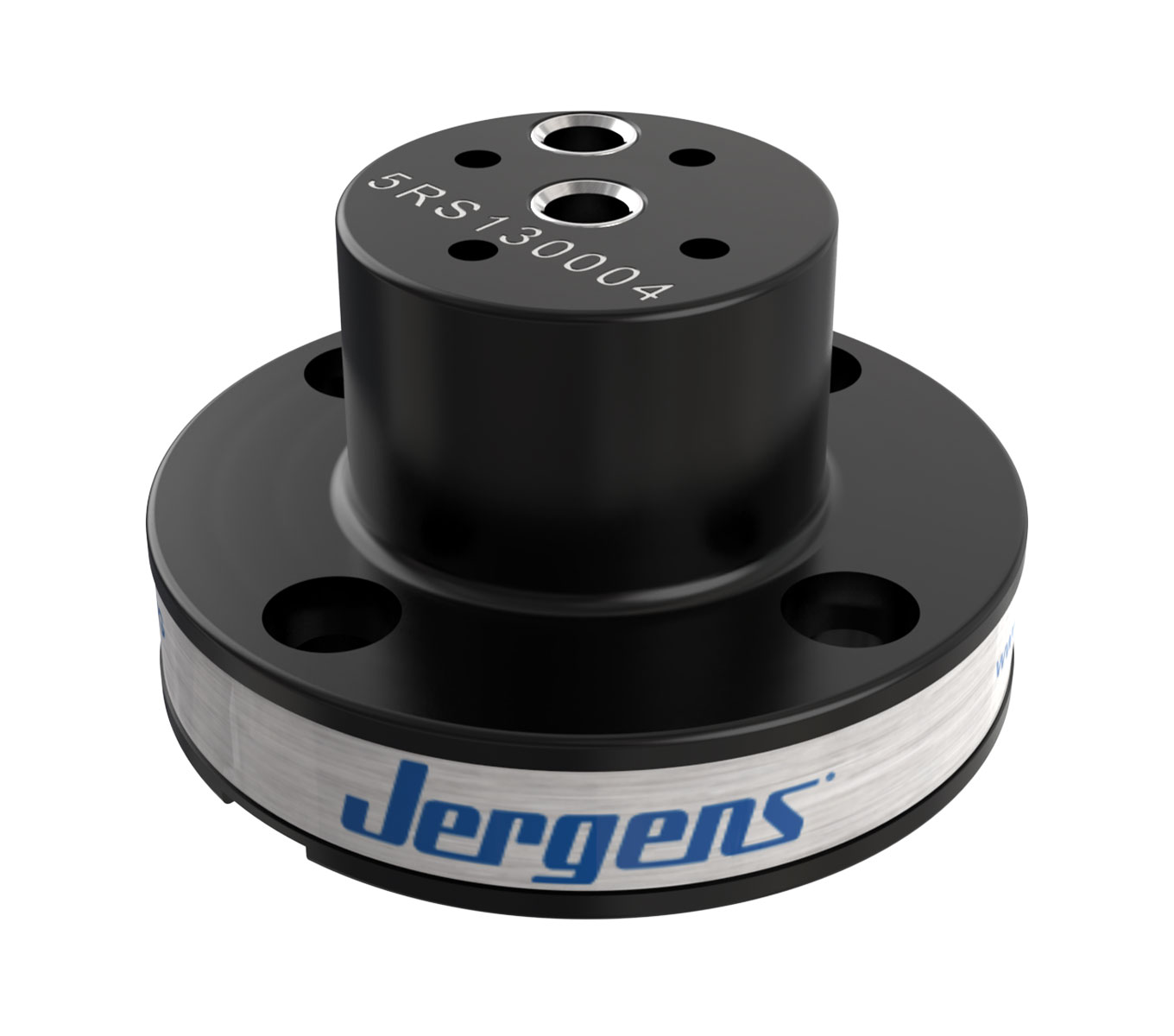

Metric | MINI | Aluminum | 130 | 50 | 75 | 70.3 | 50H7 | QLS, 12MM SHCS | 50mm x 50mm | 1.29 |
