5-Axis Barbell Style Risers
Jergens 5-Axis Risers raise, position, and locate the part off the machine or rotary table so that the part is accessible for machining on all five sides.
Features, Benefits, & Product Specifications:
-
Materials & Finishes:
- 1018 Carbon Steel, Black Oxide
- Aluminum, Anodized
-
Thickness Tolerance: ±0.002" (0.05mm)
-
Mounts to our QLS grids and tables using Fixture-Pro® Locating Keys & LHCS
-
Mounts to our 5-Axis Subplates with center bore, timing pin, & LHCS or QLS shoulder screws
5-Axis Barbell Style Risers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Material | A (mm) | B (mm) | C (mm) | D (mm) | Bottom Center Bore | Mounting Type | Grid | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5RS130002 |
|
Metric | Barbell - Low | Steel | 130 | 50 | 75 | 130 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 12.82 |
| 5RS130003 |
|
Metric | Barbell - Tall | Steel | 130 | 50 | 125 | 130 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 16.8 |
| 5RS130005 |
|
Metric | Barbell - Low | Aluminum | 130 | 50 | 75 | 130 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 4.44 |
| 5RS130006 |
|
Metric | Barbell - Tall | Aluminum | 130 | 50 | 125 | 130 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 5.82 |

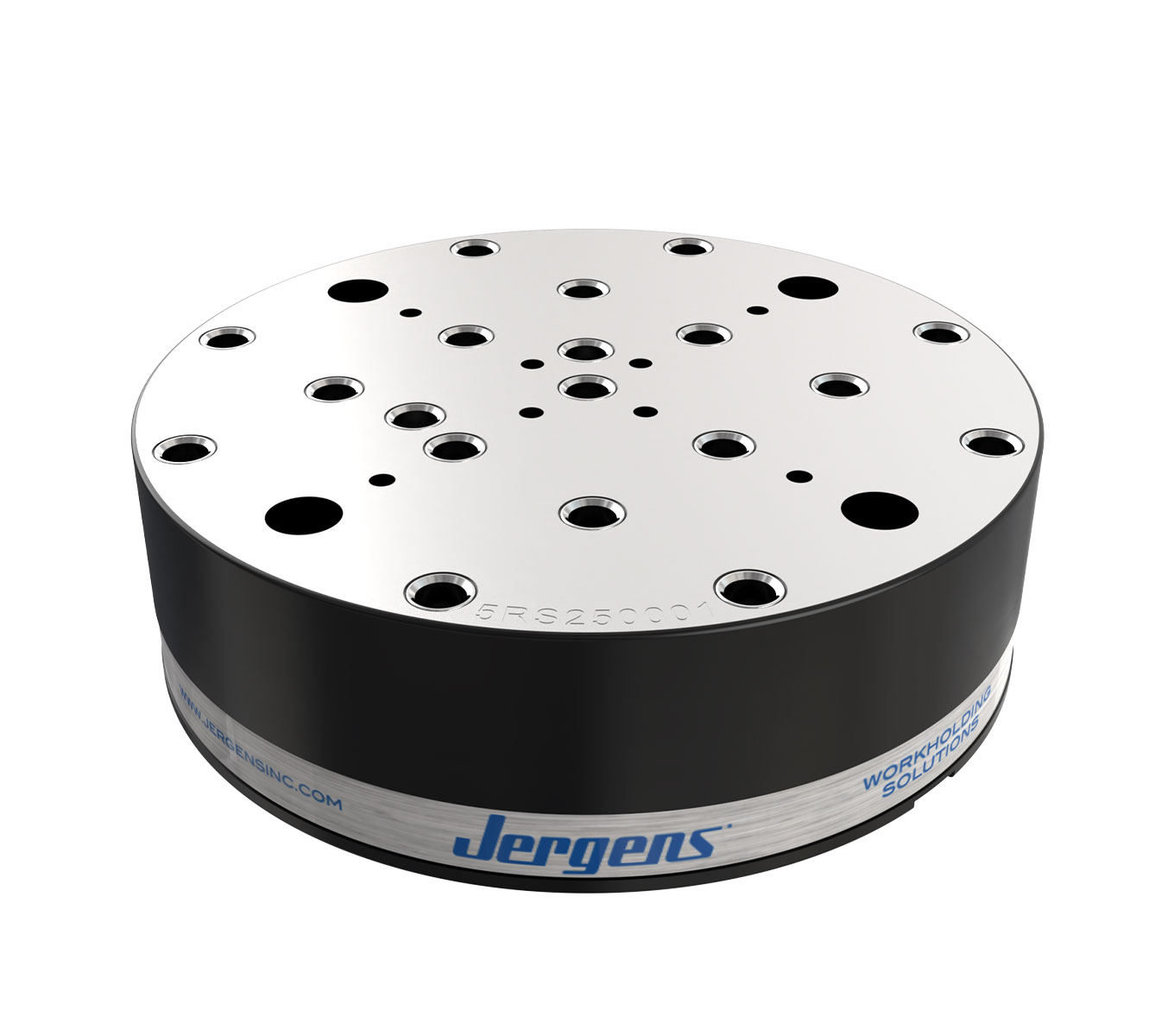

| 5RS250001 |
|
Metric | Barbell - Low | Steel | 250 | 50 | 75 | 250 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 88.6 |
| 5RS250002 |
|
Metric | Barbell - Tall | Steel | 250 | 50 | 125 | 250 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 93.3 |
| 5RS250005 |
|
Metric | Barbell - Low | Aluminum | 250 | 50 | 75 | 250 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 20.5 |

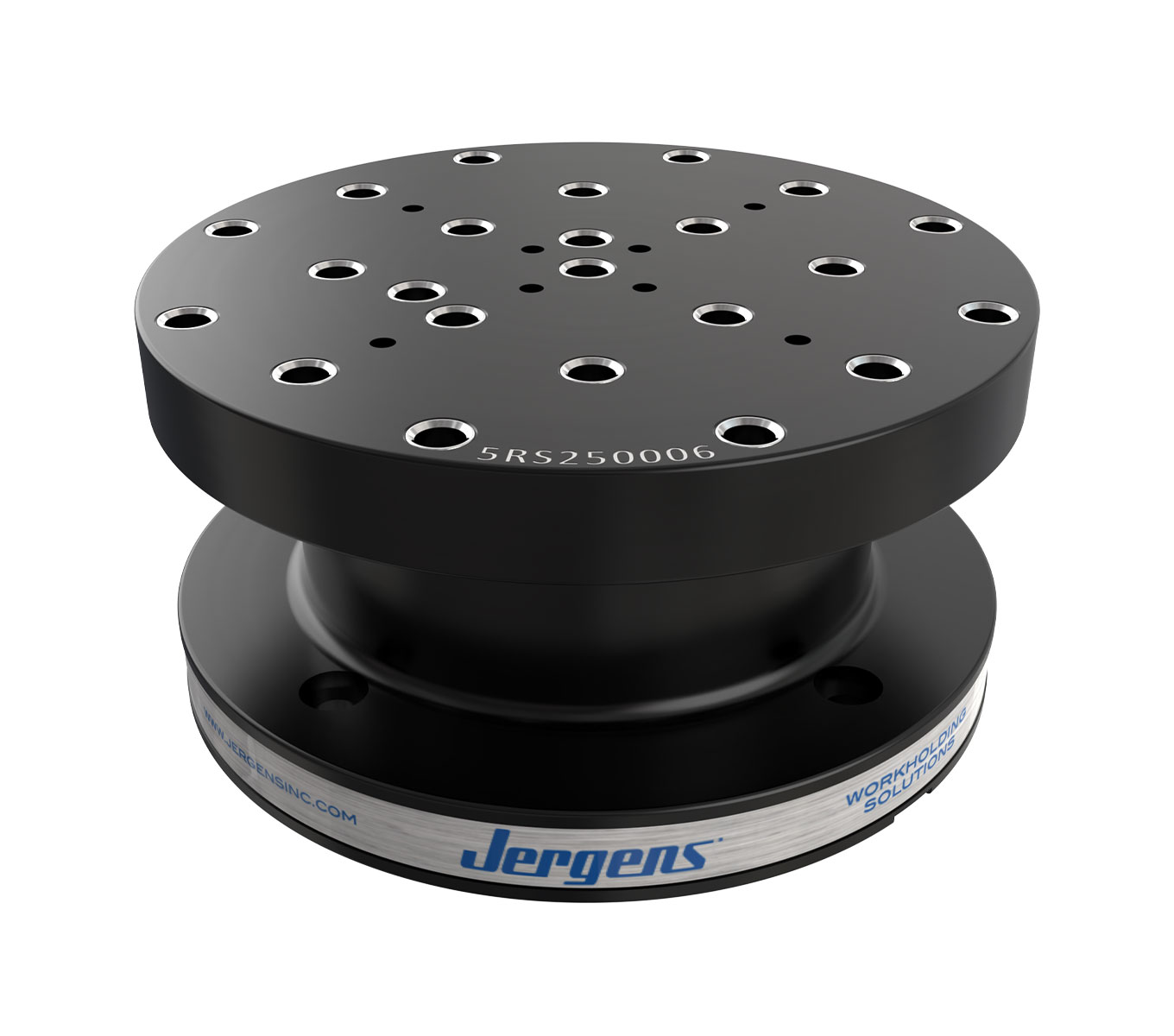

| 5RS250006 |
|
Metric | Barbell - Tall | Aluminum | 250 | 50 | 125 | 250 | 50H7 | QLS, 12MM LHCS | 50mm x 50mm | 25.34 |
