500 LB CAP Horizontal Toggle Clamps with Additional Locking Mechanism

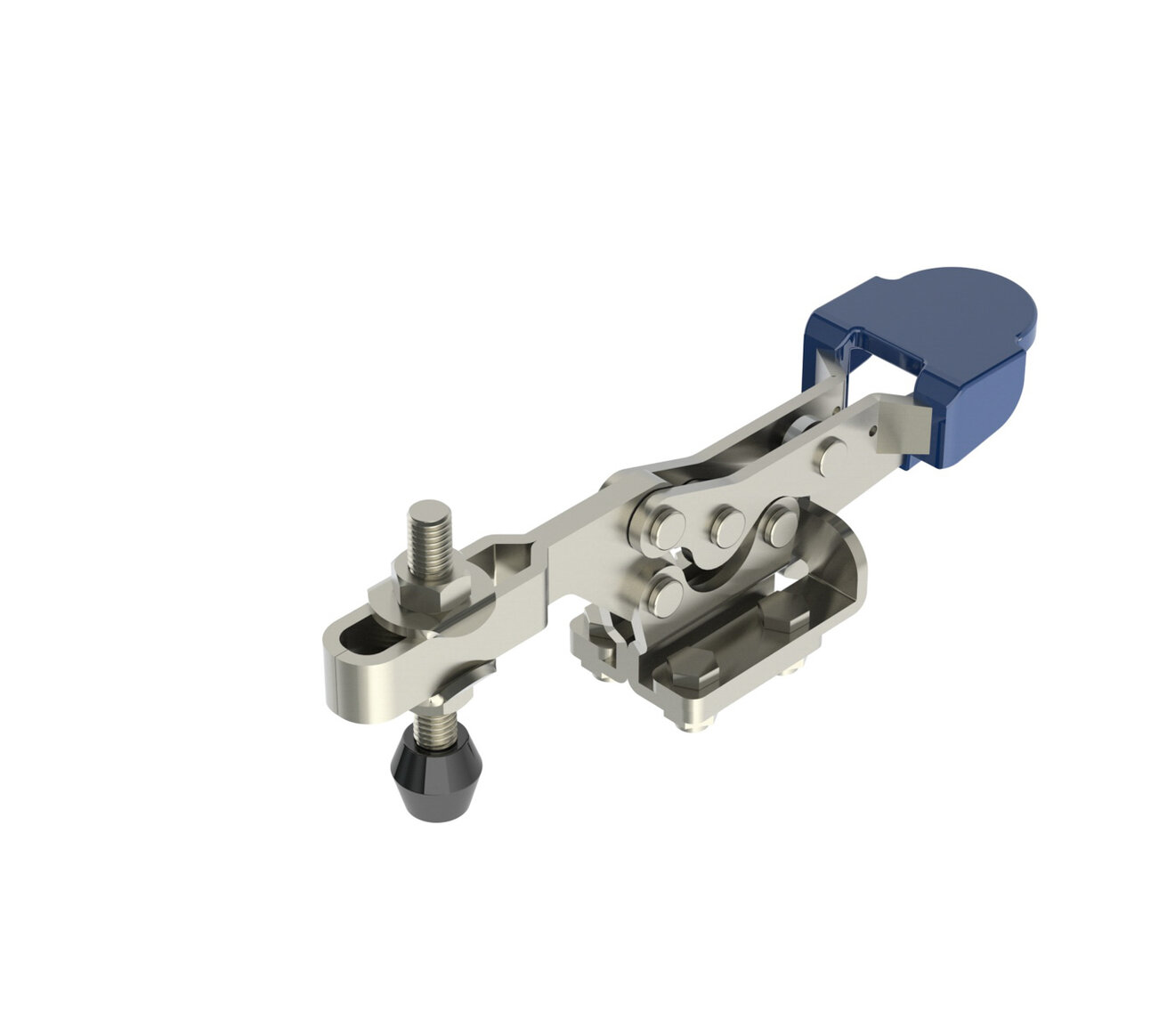

Jergens Horizontal Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. Unlike the handle and the clamping bar of our vertical action toggle clamps, the parts of the horizontal clamps move in opposite directions.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: PVC Dipped
-
Holding capacity up to 500 lbs
-
Handle features a low-height design and requires less overhead clearance
-
Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
-
Additional locking mechanism ensures that the clamp remains locked in any condition
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
500 LB CAP Horizontal Toggle Clamps with Additional Locking Mechanism

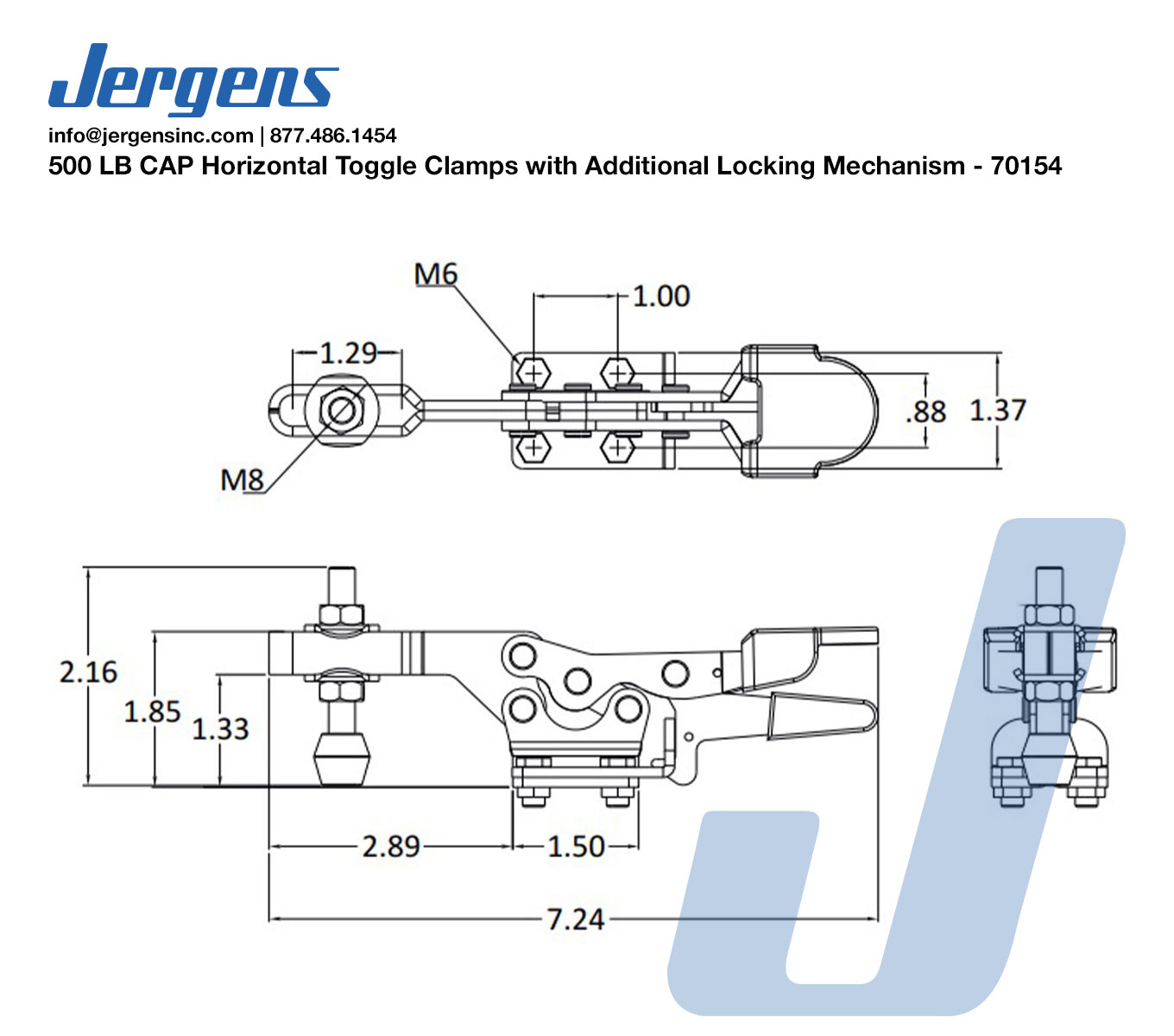

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 70154 | Inch | Flanged | Adjustable U-Bar | 70° | 90° | 500 | 0.71 |
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 70154 | Metric | Flanged | Adjustable U-Bar | 70° | 90° | 2.20 | 0.32 |
