5" Heavy Duty Machine Vise

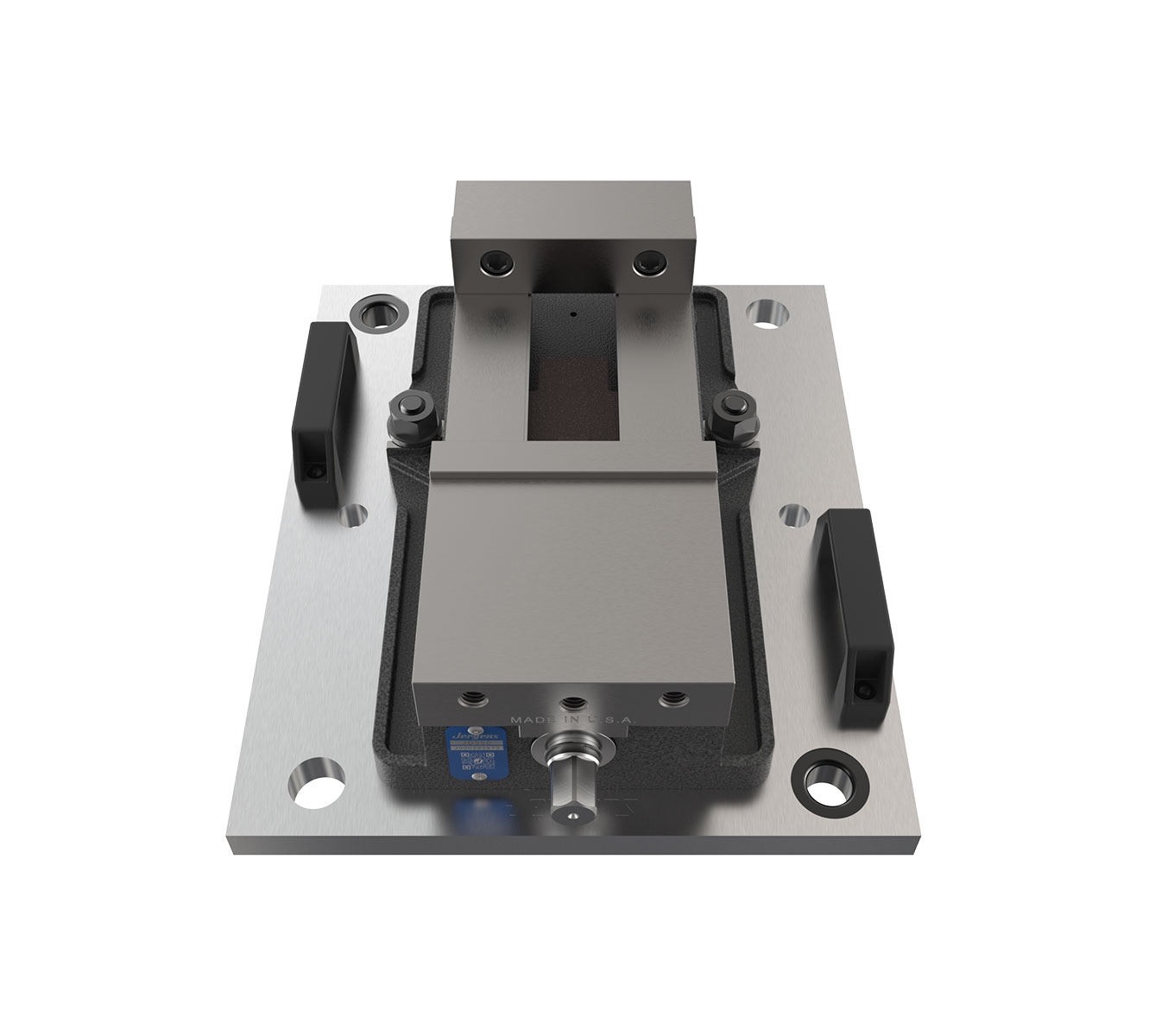

Jergens 5” Heavy Duty Machine Vise is an ideal choice for small to medium milling applications. It is approximately 30% lighter than popular 6” machine vises, making it easier to handle when the additional part capacity of a 6” vise is not needed. This versatile vise is equally at home on toolroom mills as it is on CNC production machines.
Features, Benefits, & Product Specifications:
-
Body Material: Stress Relieved 80,000 PSI Ductile Iron
-
Flame hardened vise bed
-
Hardened jaw plate
-
Movable jaw design resists lifting
-
Nickel plated lead screw for long life
-
Needle bearing facilitates ease of use even at high clamping force
-
Includes heavy duty swivel handle
-
Made in the U.S.A.
5" Heavy Duty Machine Vise
Select a part number for CAD drawings, price and stock availability.

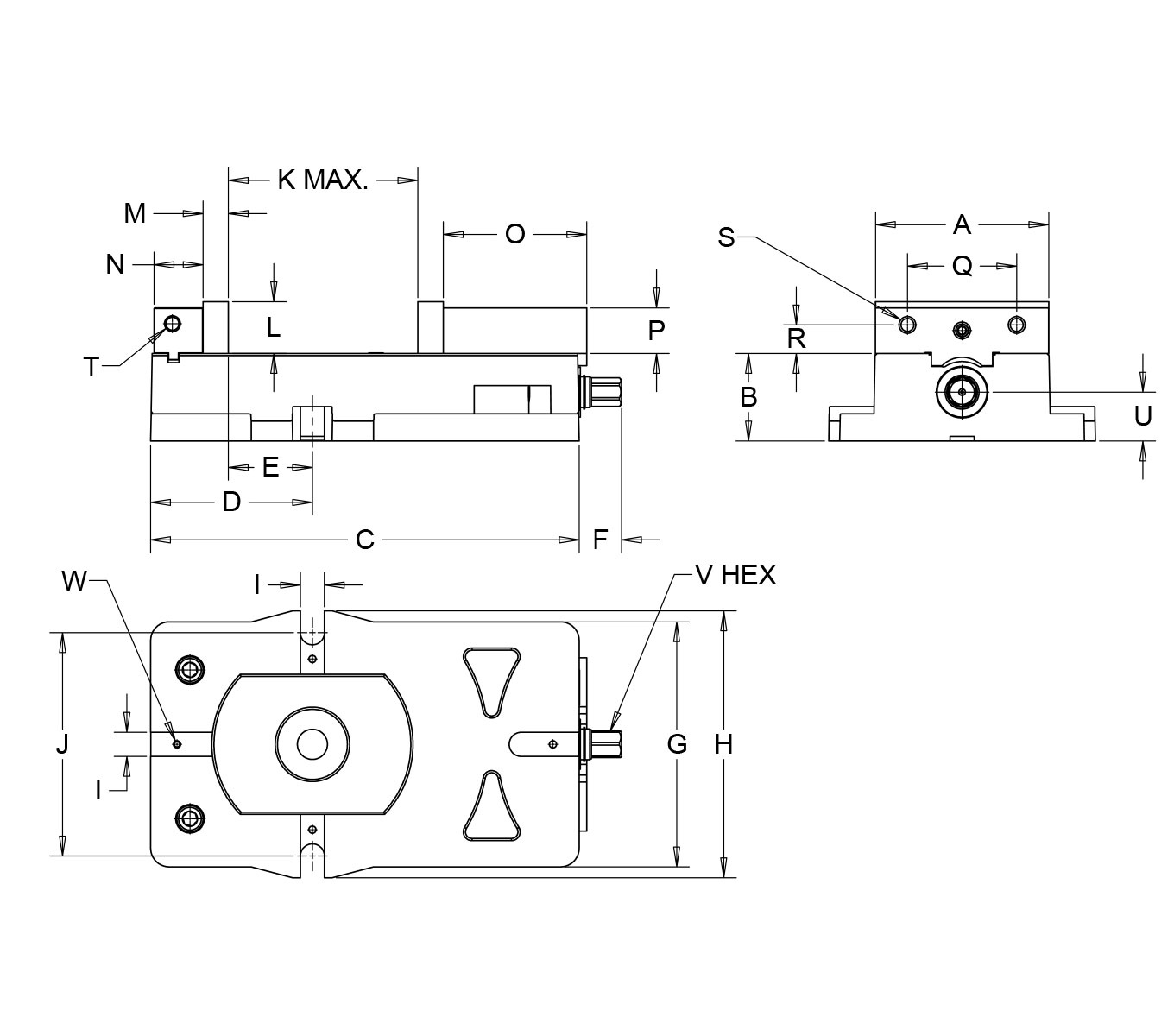

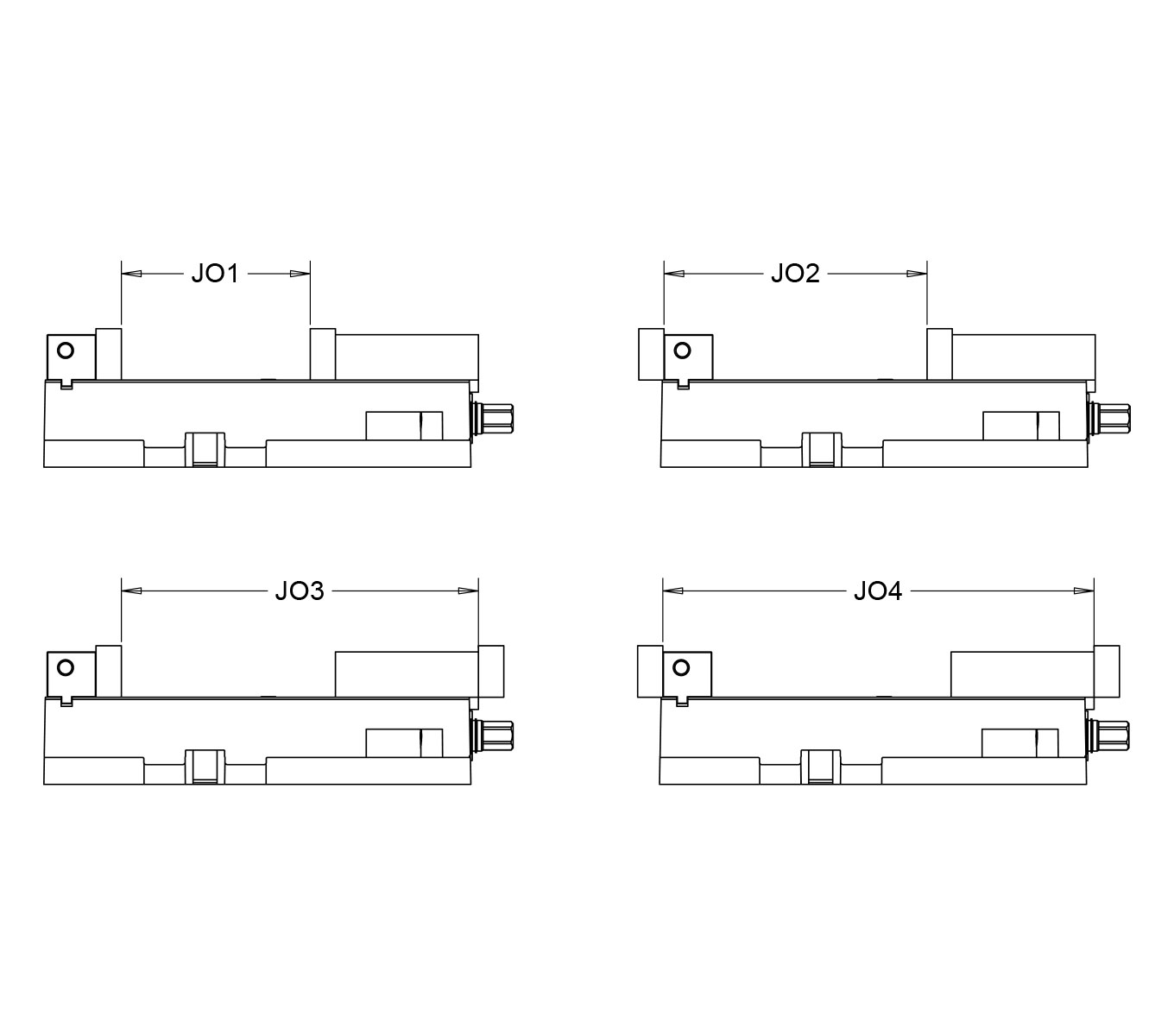

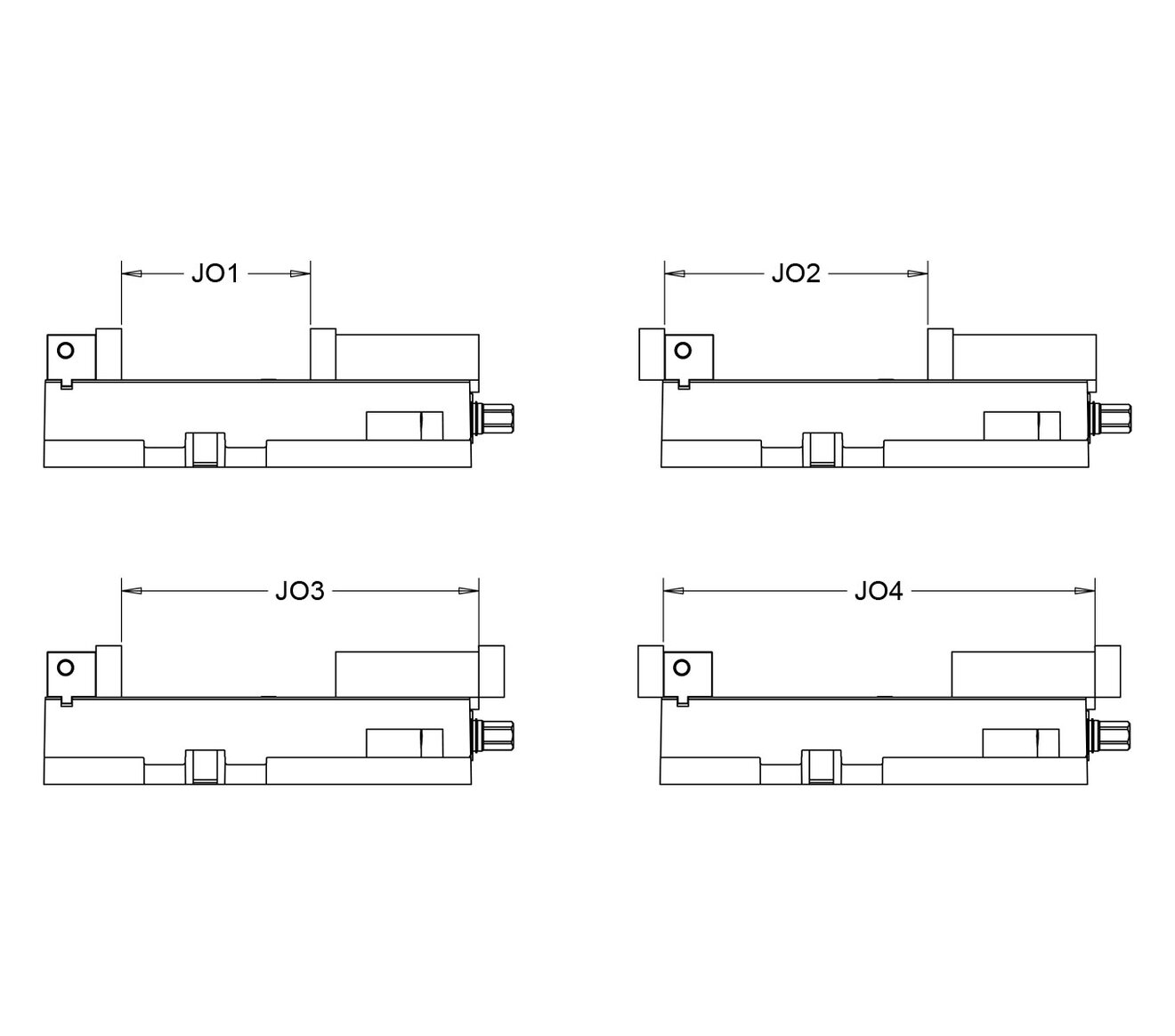

| Part Number | CAD | Unit | JO1 | JO2 | JO3 | JO4 | A (In) | B (In) | C (In) | D (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | L (In) | M (In) | N (In) | O (In) | P (In) | Q (In) | R (In) | S | T | U (In) | V (In) | W | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JD550 |
|
Inch | 5.3 | 7.13 | 9.83 | 11.95 | 5 | 2.5 | 12.25 | 4.625 | 1.21 | 7 | 7.62 | 0.688 | 6.375 | 5.3 | 1.48 | 0.725 | 1.4 | 4.1 | 1.3 | 3.125 | 0.815 | 7/16-14 | 7/16-14 | 1.395 | 0.75 | 1/4-20 | 46 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
