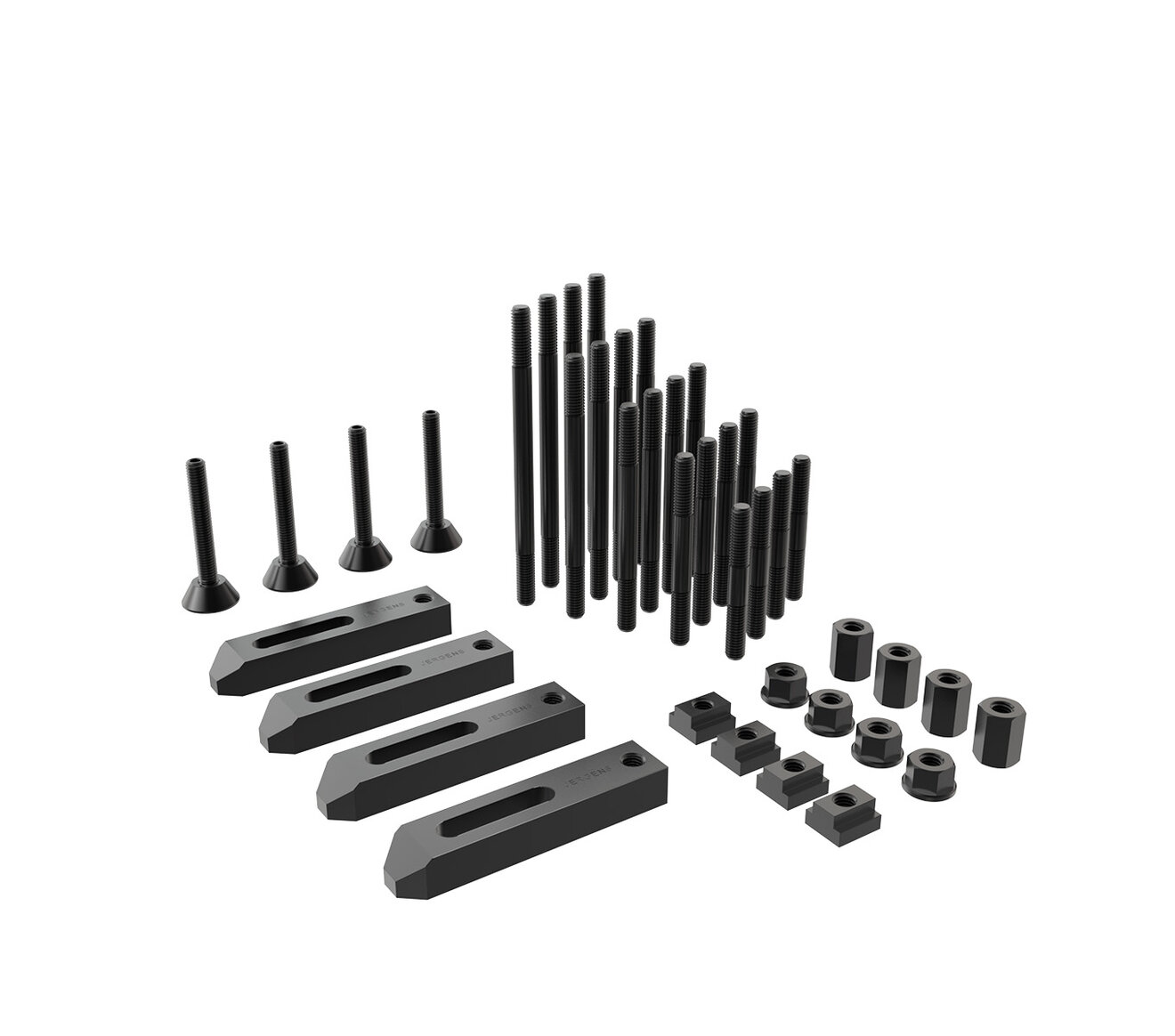

40 Piece Set-Up Kits
Jergens 40 Piece Set-Up Kits contain the same quality components as the 60 Piece Set-Up Kits but without the Steel Step Blocks and Coarse Pitch Steel Heel Straps.
Each 40 Piece Set-Up Kit includes:
-
(14) Table Saver T-Nuts
-
(20) Studs:
-
(4) 4" Length Studs
-
(4) 5" Length Studs
-
(4) 6" Length Studs
-
(4) 7" Length Studs
-
(4) 8" Length Studs
-
-
(4) Adjustable Clamp Heels
-
(4) Flange Nuts
-
(4) Coupling Nuts
-
(4) Taper Nose Straps
-
(1) Wooden Holder (see Notes for more info)
Note(s):
-
Part No.'s 45022, 45025, 45028, & 45031 T-nuts are not hardened due to thin wall.
-
Part No.'s 45022, 45023, 45027, 45028, & 45029 include a wood holder.
Documents
40 Piece Set-Up Kits
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Wood Holder | T-Slot Width (In) | Thread Size | Strap Clamp | Adjustable Clamp Heel | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 45021 | Inch | No | 9/16 | 3/8-16 | 5/8 x 1 1/4 x 5 | 3/8-16x3 | 12 | |
| 45022 | Inch | Yes | 7/16* | 3/8-16 | 5/8 x 1 1/4 x 5 | 3/8-16x3 | 12 | |
| 45023 | Inch | Yes | 1/2 | 3/8-16 | 5/8 x 1 1/4 x 5 | 3/8-16x3 | 12 | |
| 45024 | Inch | No | 11/16 | 1/2-13 | 7/8 x 1 1/4 x 6 | 1/2-13 x 4 | 20 | |
| 45025 | Inch | No | 9/16* | 1/2-13 | 7/8 x 1 1/4 x 6 | 1/2-13 x 4 | 20 | |
| 45026 | Inch | No | 5/8 | 1/2-13 | 7/8 x 1 1/4 x 6 | 1/2-13 x 4 | 20 | |
| 45027 | Inch | Yes | 13/16 | 5/8-11 | 7/8 x 1 1/2 x 7 | 5/8-11 x 5 | 30 | |
| 45028 | Inch | Yes | 11/16* | 5/8-11 | 7/8 x 1 1/2 x 7 | 5/8-11 x 5 | 30 | |
| 45029 | Inch | Yes | 3/4 | 5/8-11 | 7/8 x 1 1/2 x 7 | 5/8-11 x 5 | 30 | |
| 45030 | Inch | No | 1 1/16 | 3/4-10 | 1 x 1 1/2 x 6 | 3/4-10 x 6 | 40 | |
| 45031 | Inch | No | 13/16* | 3/4-10 | 1 x 1 1/2 x 6 | 3/4-10 x 6 | 40 | |
| 45032 | Inch | No | 7/8 | 3/4-10 | 1 x 1 1/2 x 6 | 3/4-10 x 6 | 40 |
