4" (100mm) 4-Sided Production Vise Columns

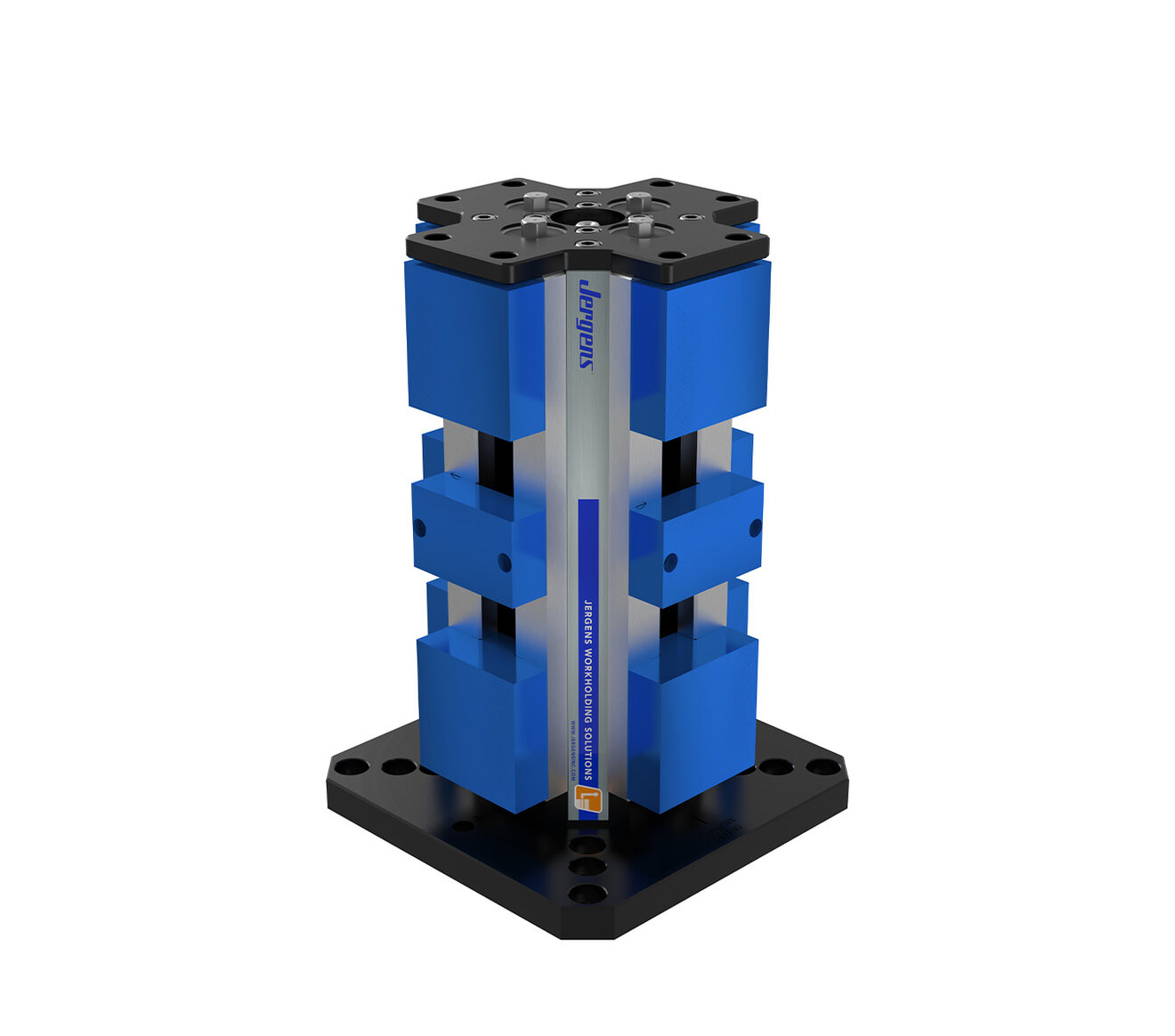

Jergens 4-Sided Production Vise Columns have (8) stations for holding parts. The Universal Base mounts directly to most HMC tables using the provided mounting holes on 80mm or 100mm centers. Further reduce set-up times by adding the Jergens Ball Lock® Mounting System to your HMC. Exchange your vise columns and any other fixture in less than a minute. Location of all fixtures will repeat within ±0.0005 (±0.013mm) or better.
Features, Benefits, & Product Specifications:
-
Fastest quick-change jaw system
-
Multiple mounting systems available
-
Full jaw travel
-
Hardened stainless steel rails support jaws & resist wear
-
Fully sealed lead screw assembly
-
Supplied with machinable soft jaws (available with hard jaws)
-
Custom mounting patterns & base sizes are available upon request
Note(s):
The bases on Universal Columns are provided with (2) sets of mounting holes to fit grids or T-Slots on 80mm and 100mm centers.
4" (100mm) 4-Sided Production Vise Columns

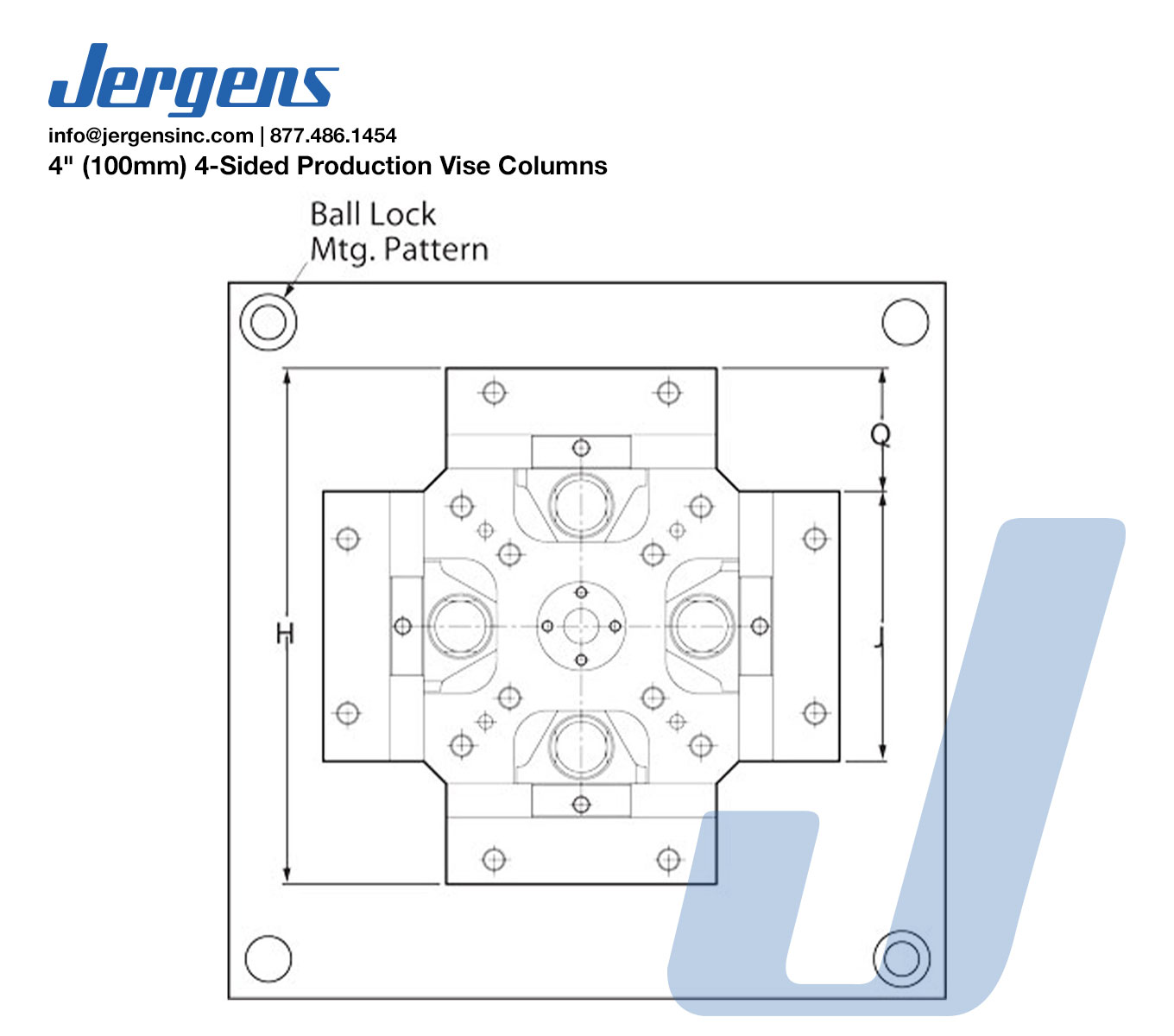

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Mounting | H (In) | J (In) | Q (In) | Base Width (In) | Base Length (In) | Ball-Lock Mtg Pattern | Mounting Pattern 1 | Mounting Pattern 2 | Mounting Pattern 3 | Weight (lbs) | Ball-Lock Shank Part Number | Shank Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49403 |
|
Inch | Ball Lock Base | 9.56 | 4.00 | 2.80 | 15.75 | 15.75 | 14 x 14 | n/a | n/a | n/a | 132 | 49602 | 20mm x 1" |
| 49475 |
|
Inch | Universal Base | 9.56 | 4.00 | 2.75 | 11.81 | 11.81 | n/a | 80mm | 100mm | 125mm | 122 | - | - |
| Part Number | CAD | Unit | Mounting | H (mm) | J (mm) | Q (mm) | Base Length (mm) | Base Width (mm) | Ball Lock Mtg Pattern | Mounting Pattern 1 | Mounting Pattern 2 | Mounting Pattern 3 | Weight (kgs) | Ball Lock Shank Part Number | Shank Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49475 |
|
Metric | Universal Base | 240 | 100 | 70 | 300 | 300 | n/a | 80mm | 100mm | 125mm | 55 | - | - |
| 69403 | Metric | Ball Lock Base | 240 | 100 | 70 | 400 | 400 | 350 x 350 | n/a | n/a | n/a | 60 | 49652 | 20mm x 25mm |
