375 LB CAP Pulling Action Latch Toggle Clamps with Compact Flanged Base & J Hook

Jergens Pull Action Latch Toggle Clamps are designed for sealing chambers, doors, mold closures, or other applications requiring closure mechanisms. The handle can be moved to place the clamping U-Bolt or hook around the opposing latch and then pulled down to reach the locked position. The threaded hook or U-Bolt type bars offer an adjustment feature.

Features, Benefits, & Product Specifications:
  • Body Material & Finish: Low Carbon Steel, Zinc Plated
  • Handle: PVC Dipped
  • Holding capacity up to 375 lbs
  • Used for applications where a straight pulling action is required
  • Compact flanged base for lower profile areas
  • J-hook enables precise grasping of cylindrical workpieces
Note(s):

Documents

375 LB CAP Pulling Action Latch Toggle Clamps with Compact Flanged Base & J Hook

Action Latch Toggle Clamps

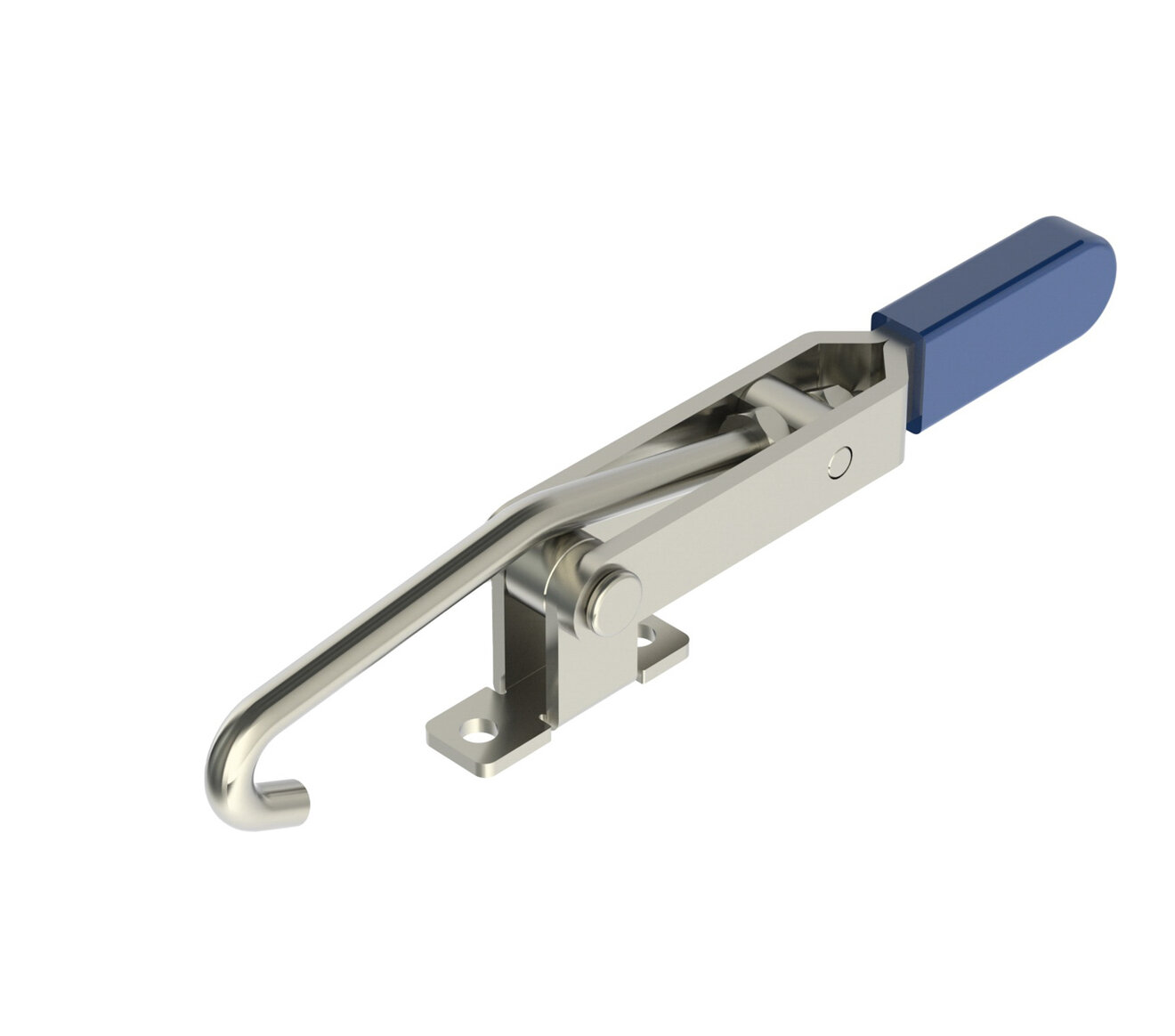

  • Action Latch Toggle Clamps

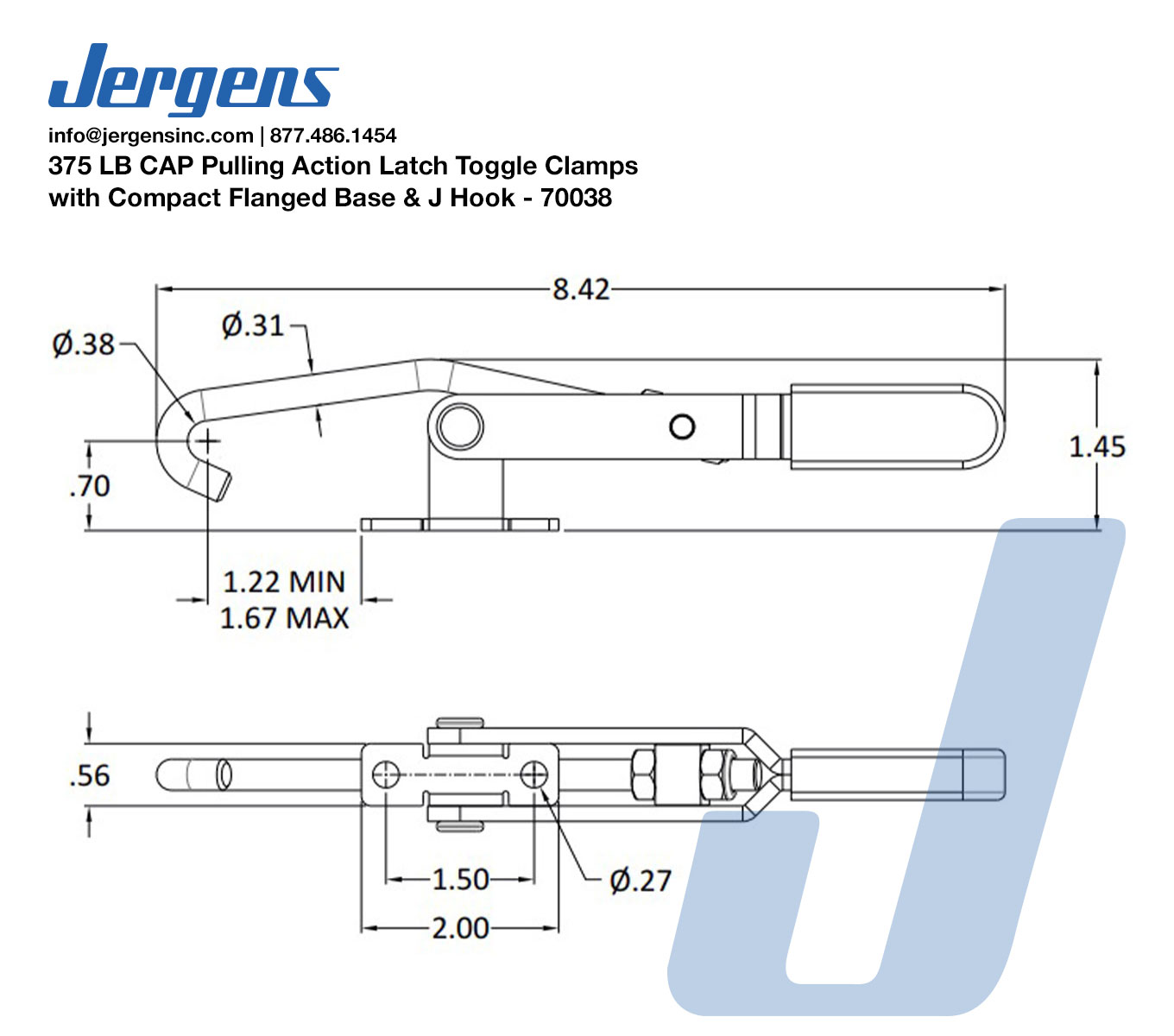

  • Line Art 375 LB CAP Pulling Action Latch Toggle Clamps with Compact Flanged Base & J Hook

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Drawing Movement (in) Holding Capacity (lbs) Weight (lbs)
70038 icon_cad Inch 4.00 375 0.61
Part Number CAD Unit Drawing Movement (mm) Holding Capacity (kN) Weight (kg)
70038 icon_cad Metric 102 1.67 0.28
