340 LB CAP Pulling Action Latch Toggle Clamps

Jergens Pull Action Latch Toggle Clamps are designed for sealing chambers, doors, mold closures, or other applications requiring closure mechanisms. The handle can be moved to place the clamping U-Bolt or hook around the opposing latch and then pulled down to reach the locked position. The threaded hook or U-Bolt type bars offer an adjustment feature.

Features, Benefits, & Product Specifications:
  • Body Materials & Finishes:
    • Low Carbon Steel, Zinc Plated
    • 304 Stainless Steel
  • Handle: PVC Dipped
  • Holding capacity up to 340 lbs
  • Used for applications where a straight pulling action is required
Note(s):

Documents

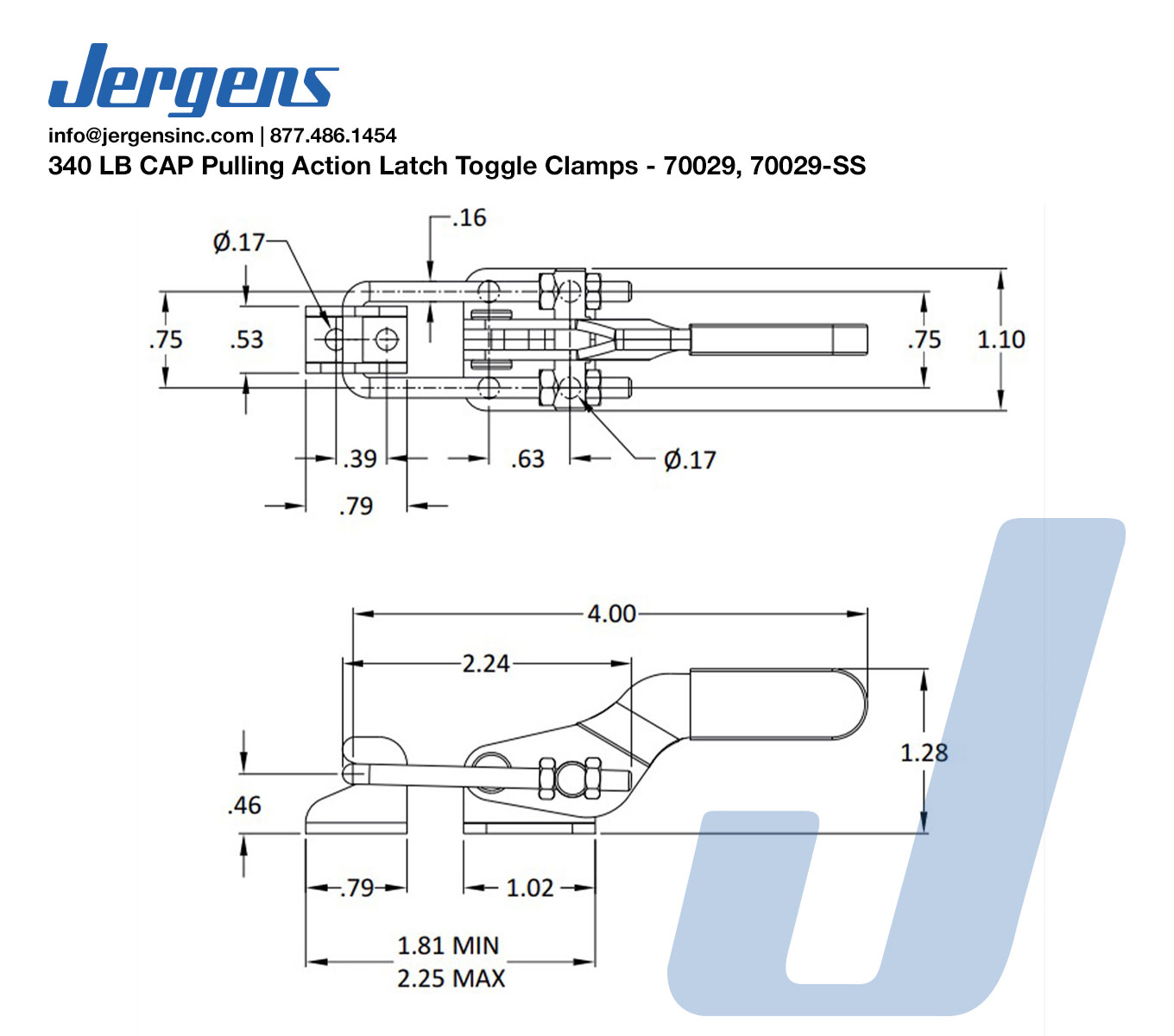

340 LB CAP Pulling Action Latch Toggle Clamps

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Drawing Movement (In) Holding Capacity (lbs) Weight (lbs)
70029 Inch 1.06 340 0.22
70029-SS Inch 1.06 340 0.22
Part Number CAD Unit Drawing Movement (mm) Holding Capacity (kN) Weight (kgs)
70029 Metric 27 1.50 0.10
70029-SS Metric 27 1.50 0.10
