337 LB CAP T-Handle Horizontal Toggle Clamps with Additional Locking Mechanism

Jergens Horizontal Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. Unlike the handle and the clamping bar of our vertical action toggle clamps, the parts of the horizontal clamps move in opposite directions.

Features, Benefits, & Product Specifications:
  • Body Materials & Finishes:
    • Low Carbon Steel, Zinc Plated
    • 304 Stainless Steel
  • Handle: PVC Dipped T-handle for easier gripping
  • Holding capacity up to 337 lbs
  • Handle features a low-height design and requires less overhead clearance
  • Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
  • Additional locking mechanism ensures that the clamp remains locked in any condition

Note(s):
  • "Holding Capacity" measurement applies to the U-Bar position closest to the handle.
  • ⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

337 LB CAP T-Handle Horizontal Toggle Clamps with Additional Locking Mechanism

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Base Arm Handle Moves Bar Opens Holding Capacity (lbs) Weight (lbs)

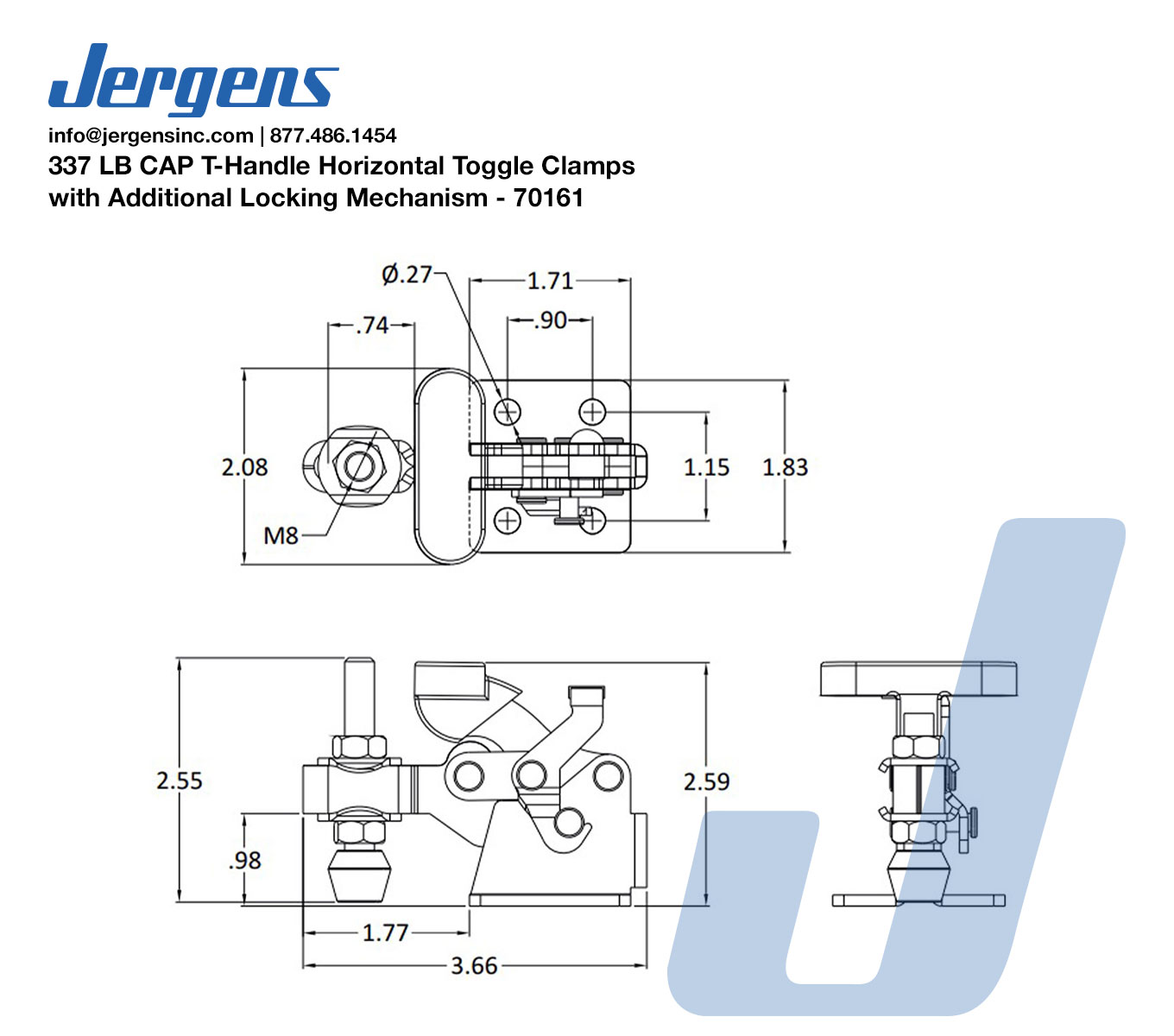

70161 Inch Flanged Adjustable U-Bar 175° 92° 337 0.55

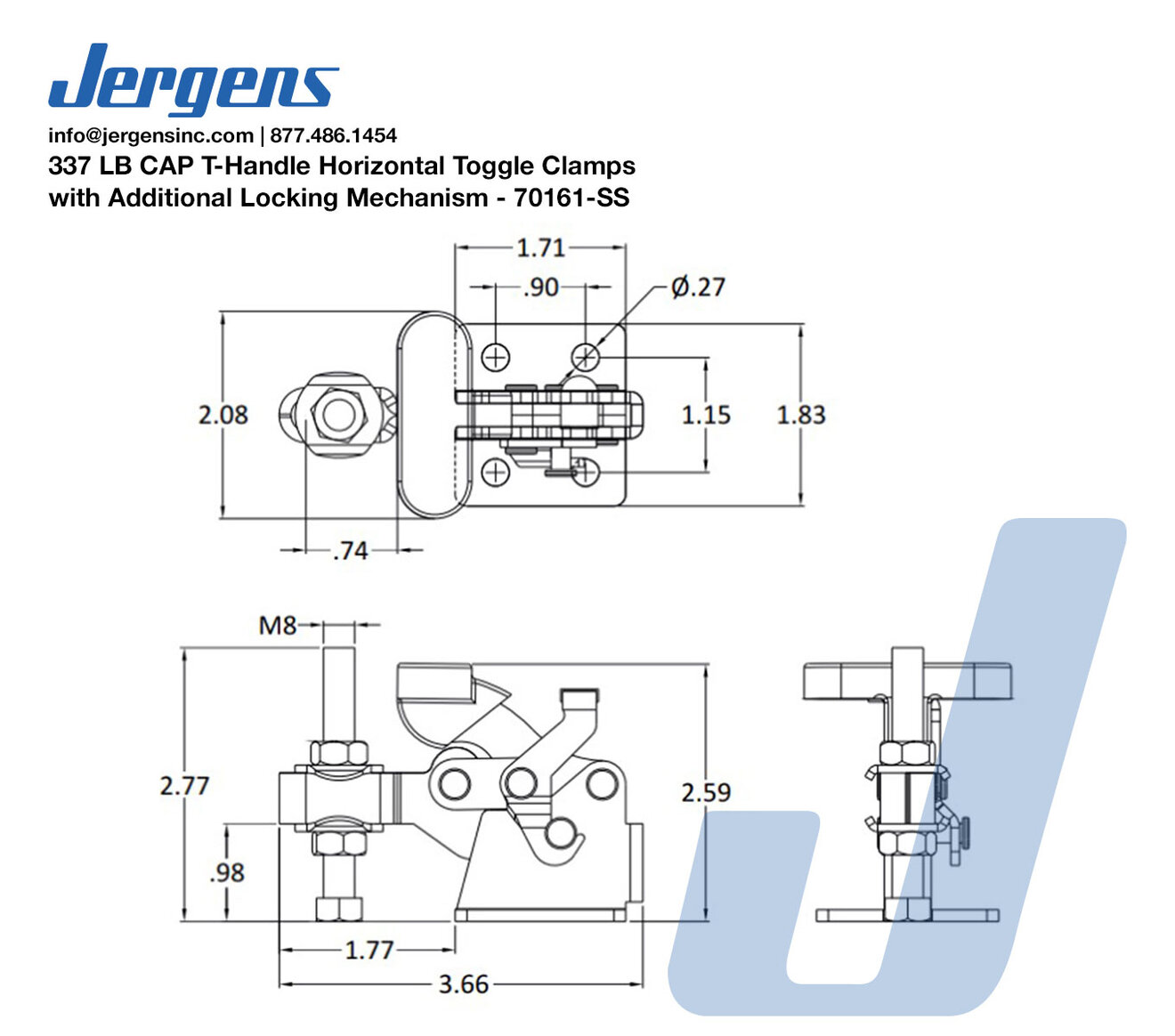

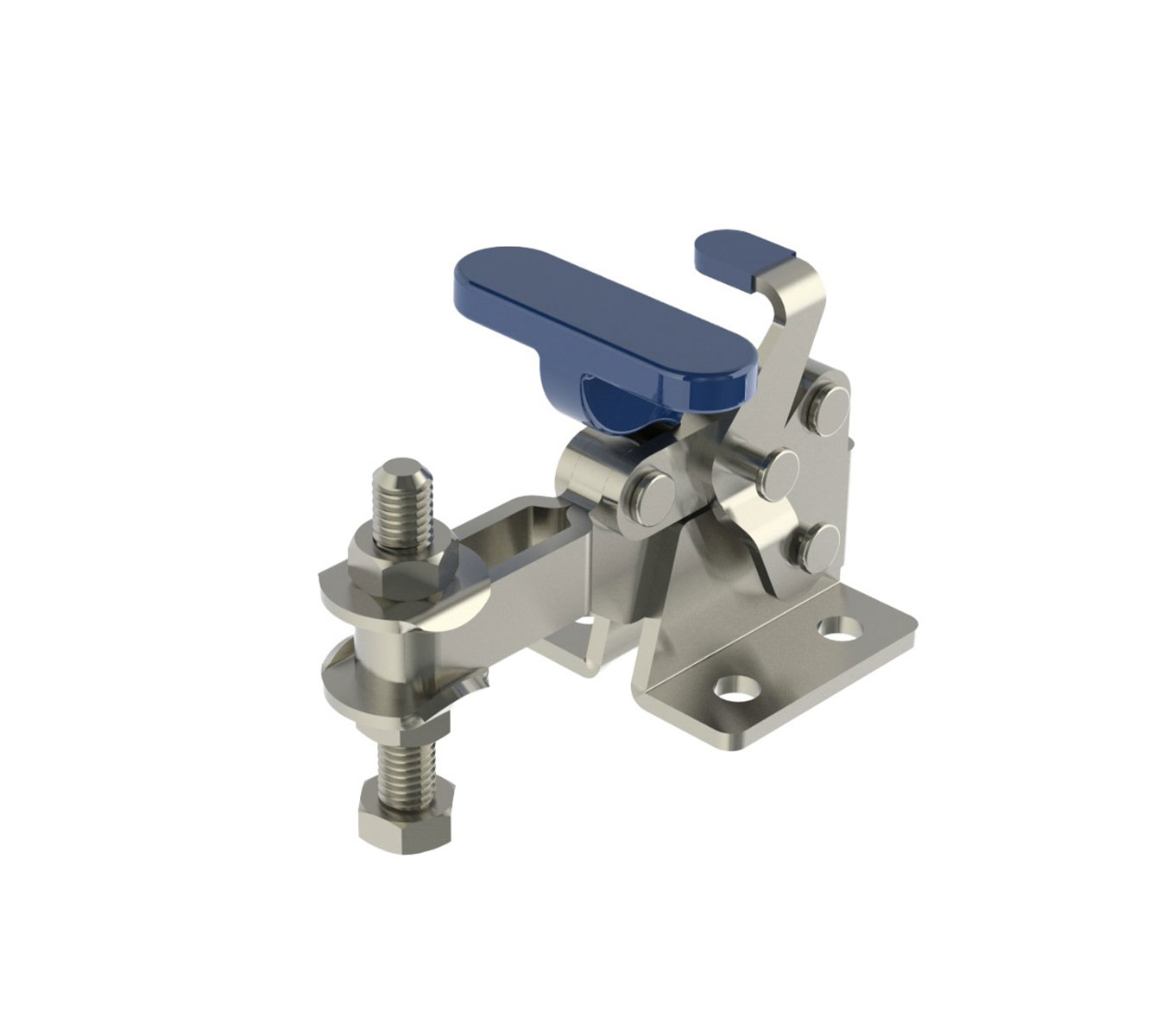

70161-SS Inch Flanged Adjustable U-Bar 175° 92° 337 0.55
Part Number CAD Unit Base Arm Handle Moves Bar Opens Holding Capacity (kN) Weight (kgs)
70161 Metric Flanged Adjustable U-Bar 175° 92° 1.50 0.25
70161-SS Metric Flanged Adjustable U-Bar 175° 92° 1.50 0.25
