300 LB CAP Straight Line Action Toggle Clamps with Flanged Base

Jergens Straight Line Action Toggle Clamps feature a straight-line or push/pull toggle clamping action design. The push/pull handle is easy to operate and moves the plungers of the clamp in and out along its axis. Most of these clamps can be locked in (2) positions, allowing you to use them as either push or pull clamps.


Features, Benefits, & Product Specifications:
  • Body Material & Finish: Low Carbon Steel, Zinc Plated
  • Handle: Molded
  • Holding capacity up to 300 lbs
  • Ideal for applications with limited space
  • Uses a straight-line or push/pull action which presses against the side of a workpiece to hold it in place

Note(s):

300 LB CAP Straight Line Action Toggle Clamps with Flanged Base

Straight Line Action Toggle Clamps with Flanged Base
  • Straight Line Action Toggle Clamps with Flanged Base

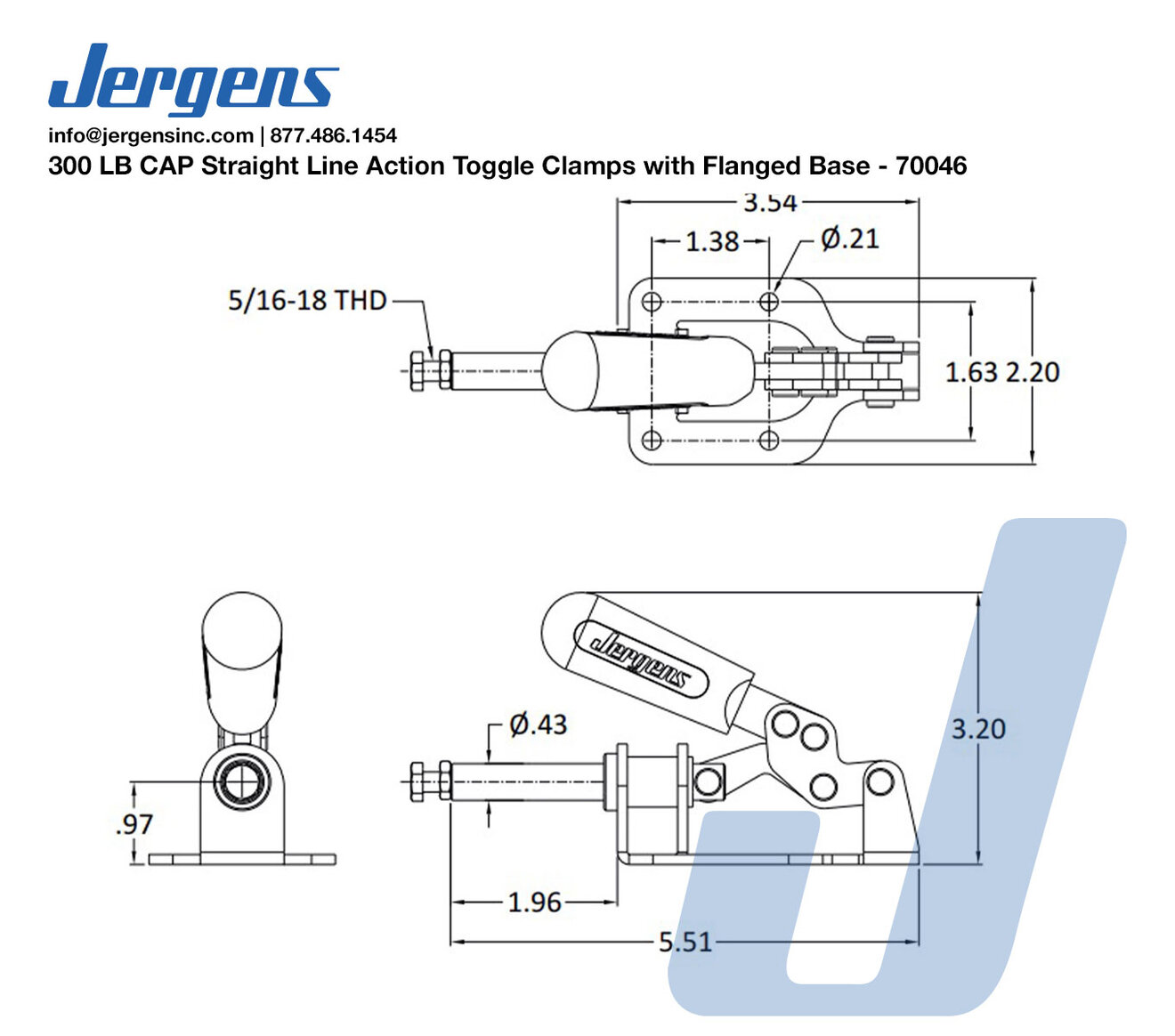

  • Line Art 300 LB CAP Straight Line Action Toggle Clamps with Flanged Base

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Plunger Travel (in) Holding Capacity (lbs) Weight (lbs)
70046 icon_cad Inch 1.25 300 0.66
Part Number CAD Unit Plunger Travel (mm) Holding Capacity (kN) Weight (kg)
70046 icon_cad Metric 32 1.33 0.30
