300 LB CAP Straight Line Action Toggle Clamps

Jergens Straight Line Action Toggle Clamps feature a straight-line or push/pull toggle clamping action design. The push/pull handle is easy to operate and moves the plungers of the clamp in and out along its axis. Most of these clamps can be locked in (2) positions, allowing you to use them as either push or pull clamps.

Features, Benefits, & Product Specifications:
  • Body Materials & Finishes:
    • Low Carbon Steel, Zinc Plated
    • 304 Stainless Steel
  • Handle: Molded
  • Holding capacity up to 300 lbs
  • Ideal for applications with limited space
  • Uses a straight-line or push/pull action which presses against the side of a workpiece to hold it in place
Note(s):

Documents

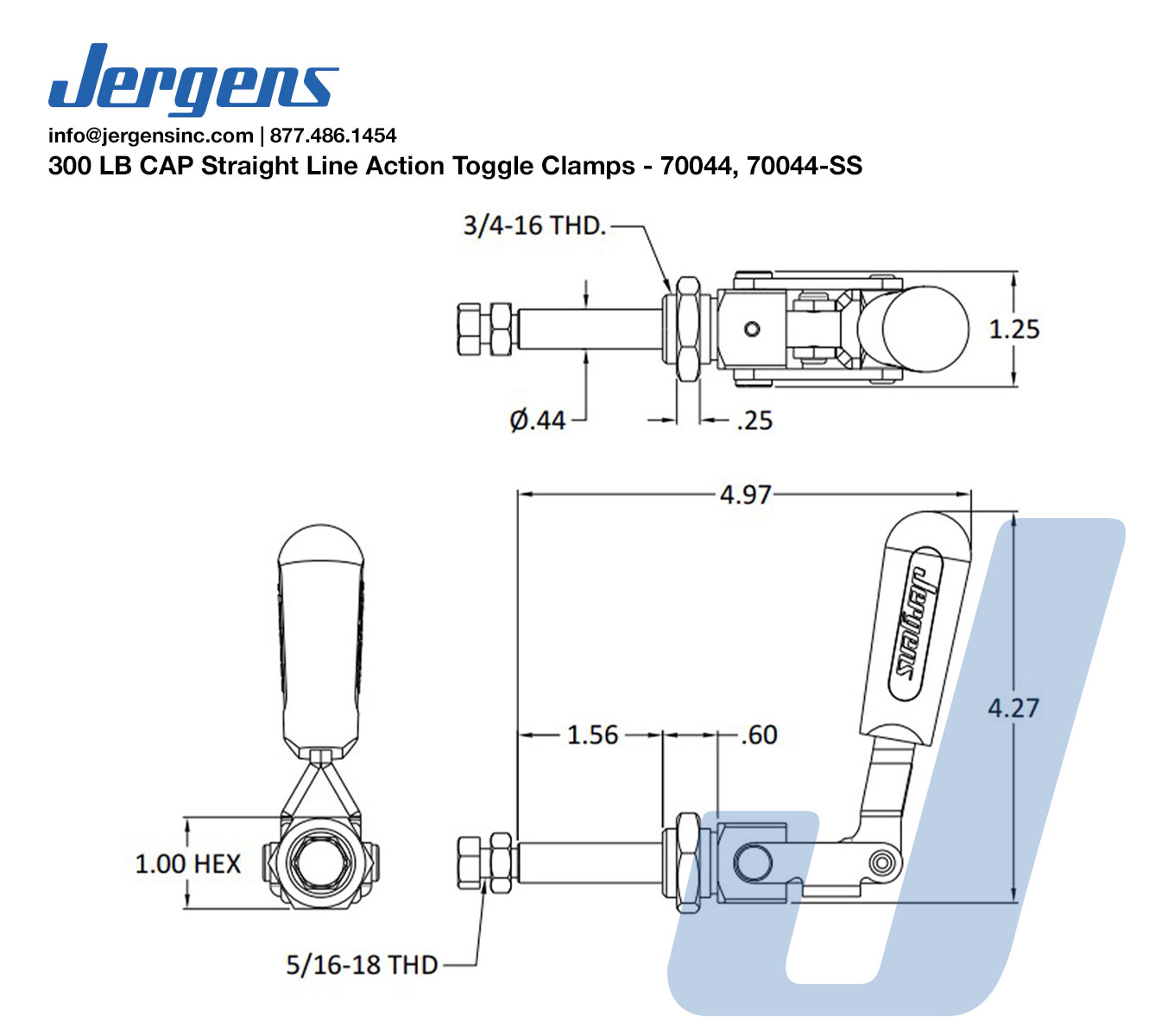

300 LB CAP Straight Line Action Toggle Clamps

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Plunger Travel (in) Holding Capacity (lbs) Weight (lbs)
70044 icon_cad Inch 1.50 300 0.44
70044-SS Inch 1.50 300 0.44
Part Number CAD Unit Plunger Travel (mm) Holding Capacity (kN) Weight (kgs)
70044 icon_cad Metric 38 1.33 0.20
70044-SS Metric 38 1.33 0.20
