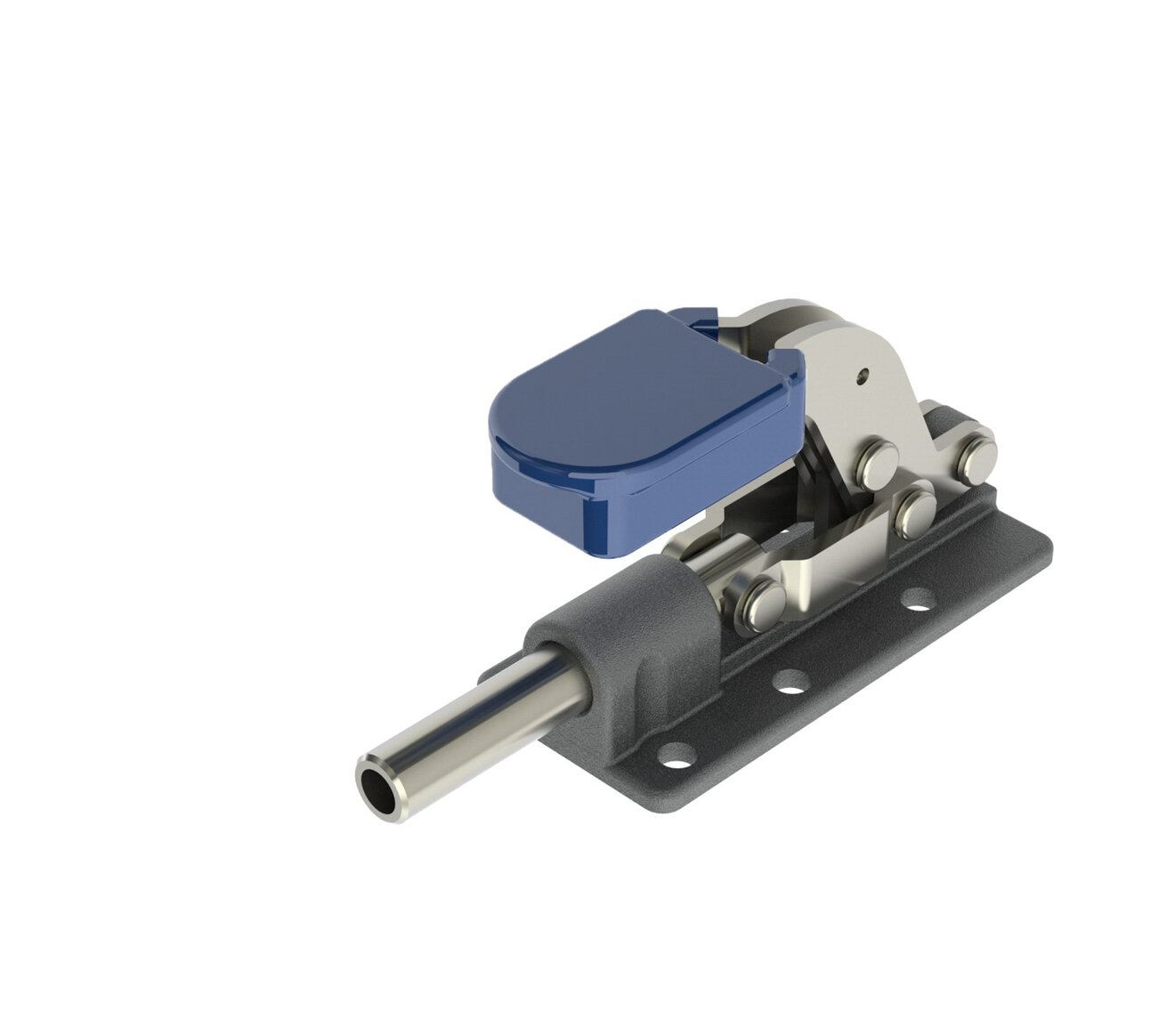

2,500 LB CAP Straight Line Action Toggle Clamps with Additional Locking Mechanism
Jergens Straight Line Action Toggle Clamps feature a straight-line or push/pull toggle clamping action design. The push/pull handle is easy to operate and moves the plungers of the clamp in and out along its axis. Most of these clamps can be locked in (2) positions, allowing you to use them as either push or pull clamps.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: PVC Dipped
-
Holding capacity up to 2,500 lbs
-
Ideal for applications with limited space
-
Uses a straight-line or push/pull action which presses against the side of a workpiece to hold it in place
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
2,500 LB CAP Straight Line Action Toggle Clamps with Additional Locking Mechanism

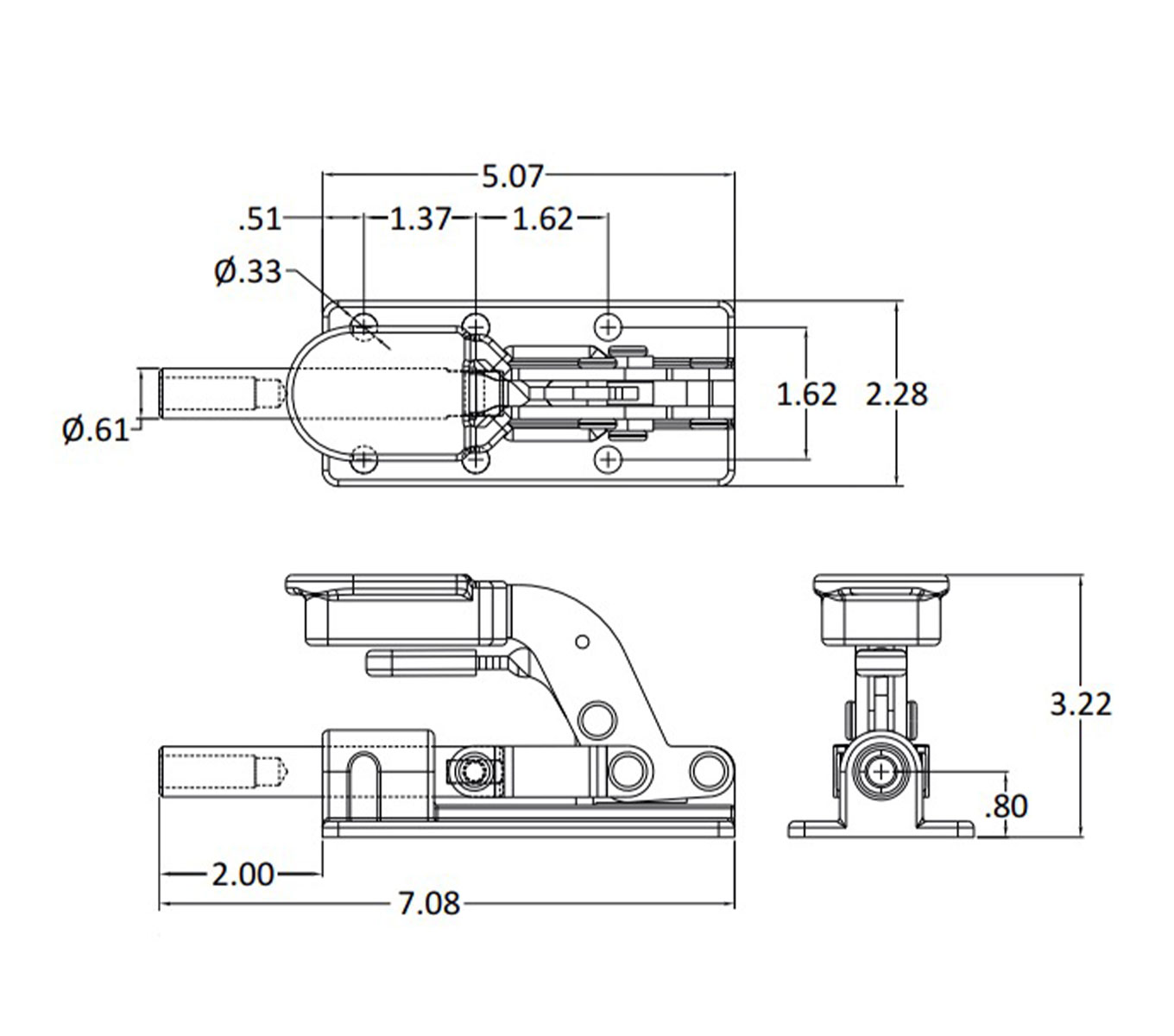

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Plunger Travel (in) | Plunger Thread | Holding Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 70159 | Inch | 2.00 | 3/8-16 | 2,500 | 1.96 |
| Part Number | CAD | Unit | Plunger Travel (mm) | Plunger Thread | Holding Capacity (kN) | Weight (kgs) |
|---|---|---|---|---|---|---|
| 70159 | Metric | 51 | M10 x 1.5 | 11.40 | 0.89 |
