130mm Vise Jaw Sets
Insert Jaw Sets for 130mm Self-Centering Vise:
-
-INSJ Material: Thru Hardened Alloy Steel
-
Includes serrated inserts
-
Alternate insert styles available (see Related Products)
-
Set includes (2) jaws

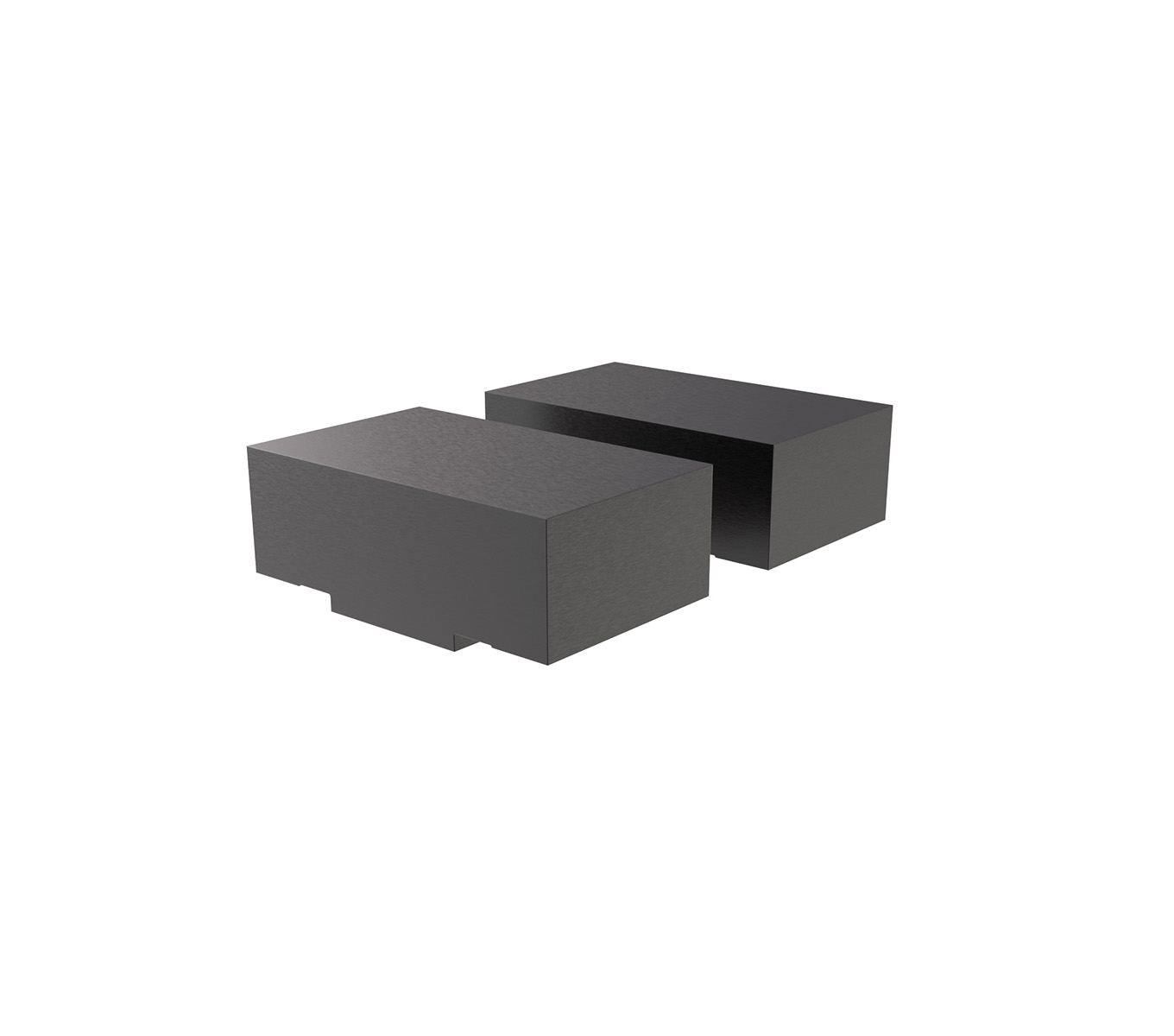

Soft Jaw Sets for 130mm Self-Centering Vise:
-
-ASJ Material & Finish: High Strength Aluminum, Blue Anodized
-
-SSJ Material & Finish: Low Carbon Steel, Black Oxide
-
Set includes (2) jaws
Step Jaw Sets for 130mm Self-Centering Vise:
-
-HSJ Material & Finish: Thru Hardened Alloy Steel, Black Oxide
-
Set includes (2) jaws
Note:
- Moveable jaw sets available wth gibs for tighter tolerances within rails. Add "SC" to base part number. Example: "49421SC"
130mm Self-Centering Vise Jaw Sets_LineArt
130mm Vise Jaw Sets
| Part Number | CAD | Unit | Type | Material | Compatibility | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5CV13041-ASJ |
|
Metric | Soft Jaws | Aluminum | Hydraulic or Self-Centering | 130 | 74 | 26 | 12 | - | - | - | - | |
| 5CV13041-ASJ-50 | Metric | Soft Jaws | Aluminum | Self-Centering | 130 | 74 | 50 | 36 | - | - | - | - | ||
| 5CV13041-INSJ |
|
Metric | Insert Jaws | Alloy Steel | Self-Centering | 130 | 60 | 30 | 27 | 5.5 | 6.7 | 25 | 12.7 | |
| 5CV13041-INSJ-L | Metric | Insert Jaws | Alloy Steel | Self-Centering | 130 | 60 | 36 | 33 | 5.5 | 6.7 | 25 | 12.7 | ||
| 5CV13041-SSJ |
|
Metric | Soft Jaws | Steel | Hydraulic or Self-Centering | 130 | 74 | 26 | 12 | - | - | - | - | |
| 5CV13041-SSJ-50 | Metric | Soft Jaws | Steel | Self-Centering | 130 | 74 | 50 | 36 | - | - | - | - |
