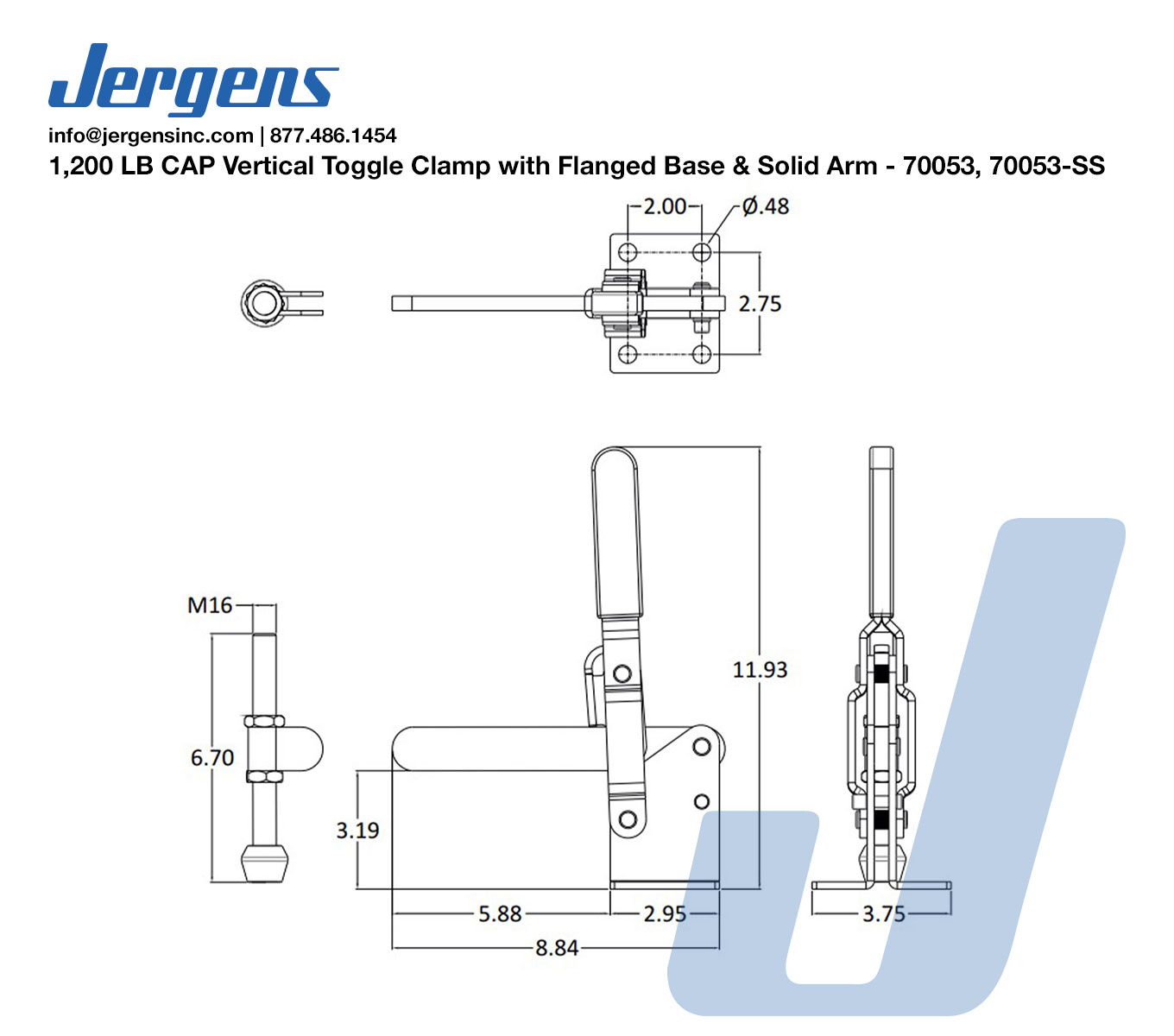

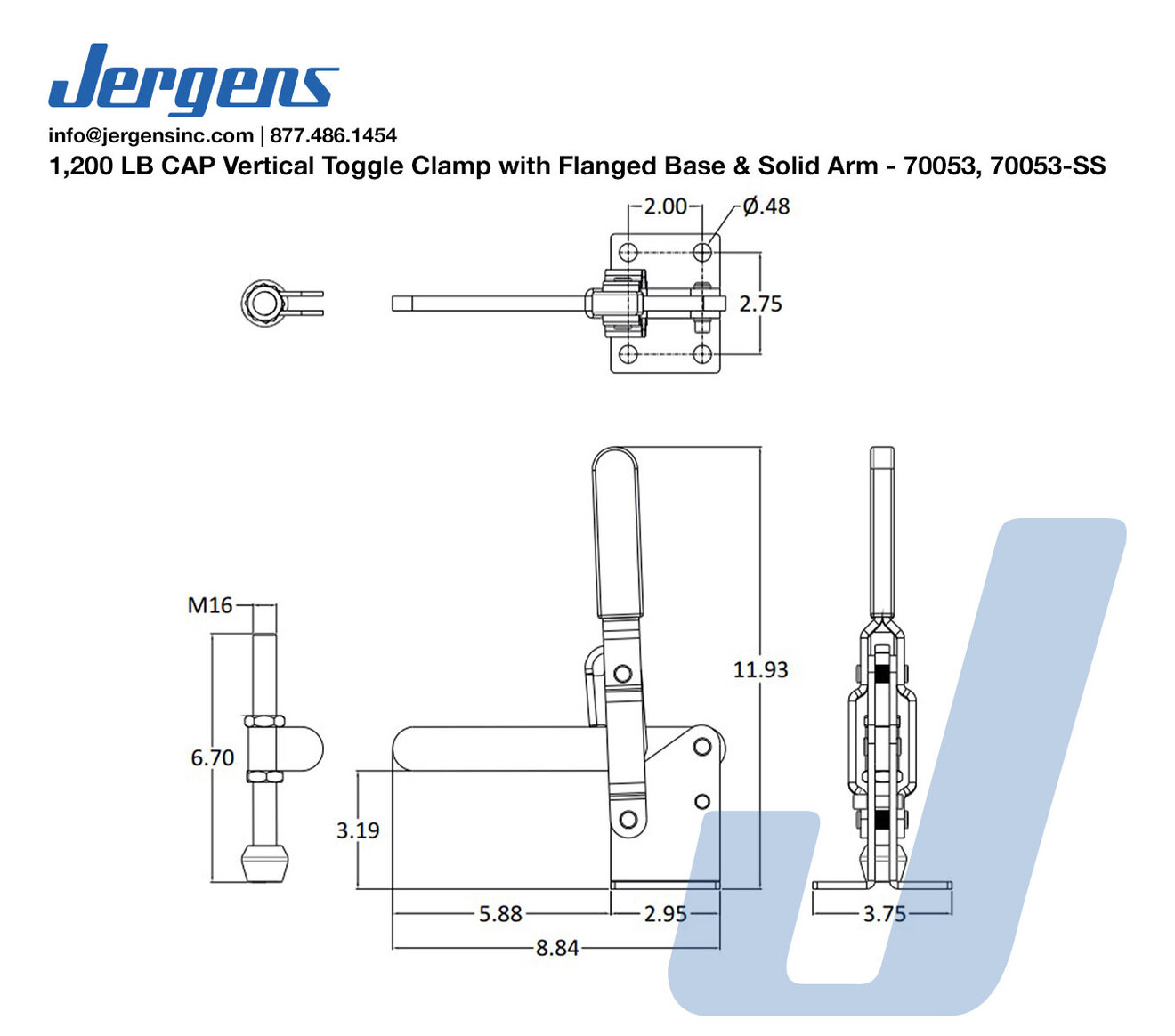

1,200 LB CAP Vertical Toggle Clamp with Flanged Base & Solid Arm
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading the workpiece.
Features, Benefits, & Product Specifications:
-
Body Materials & Finishes:
-
Low Carbon Steel, Zinc Plated
-
304 Stainless Steel
-
-
Handle: PVC Dipped
-
Holding capacity up to 1200 lbs
-
Vertical handles are designed with a minimum of 90° opening angle
-
The solid arm allows for fixed spindle location
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
1,200 LB CAP Vertical Toggle Clamp with Flanged Base & Solid Arm
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|

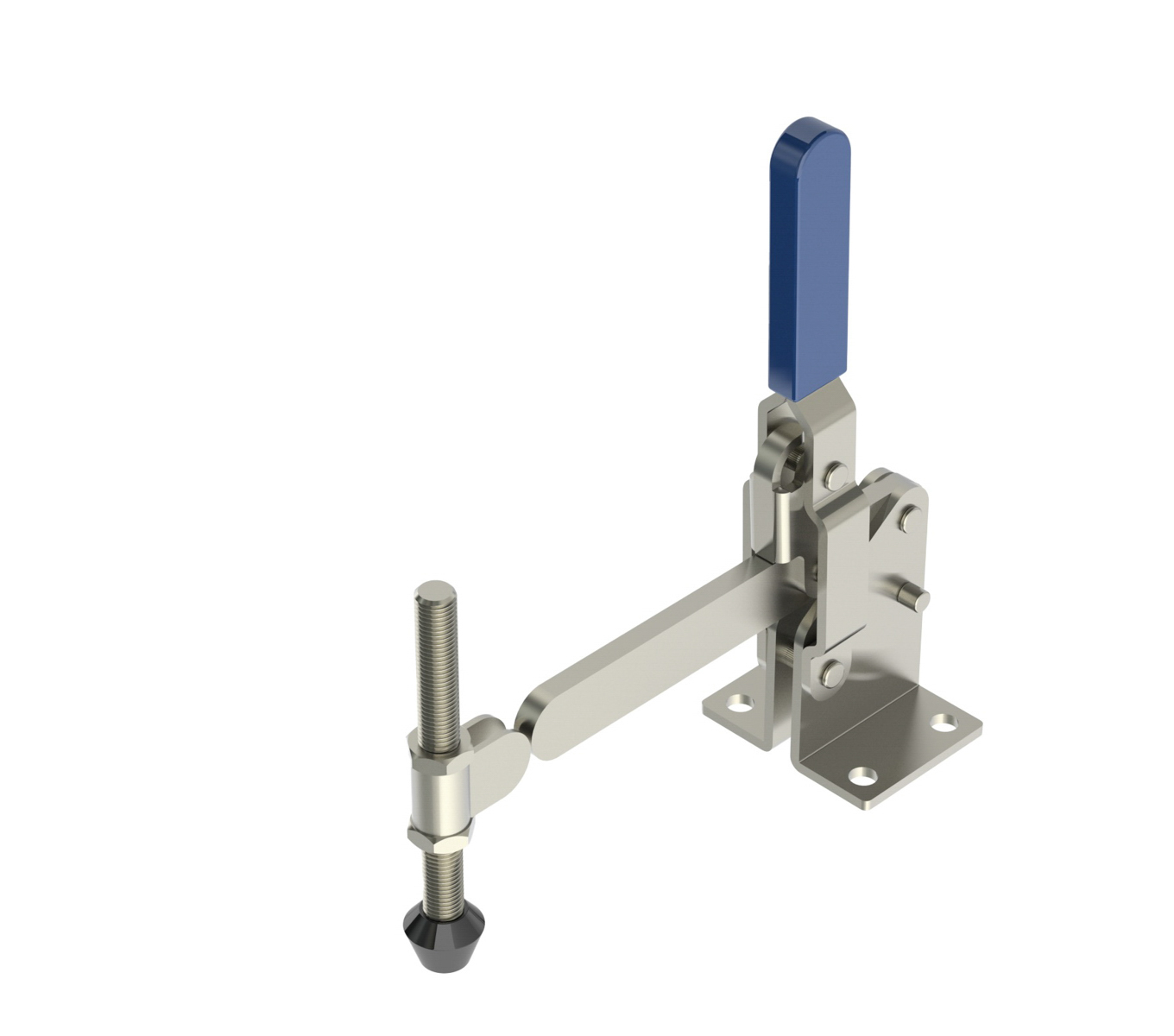

| 70053 | Inch | Flanged | Solid | 70° | 140° | 1200 | 4.41 | |

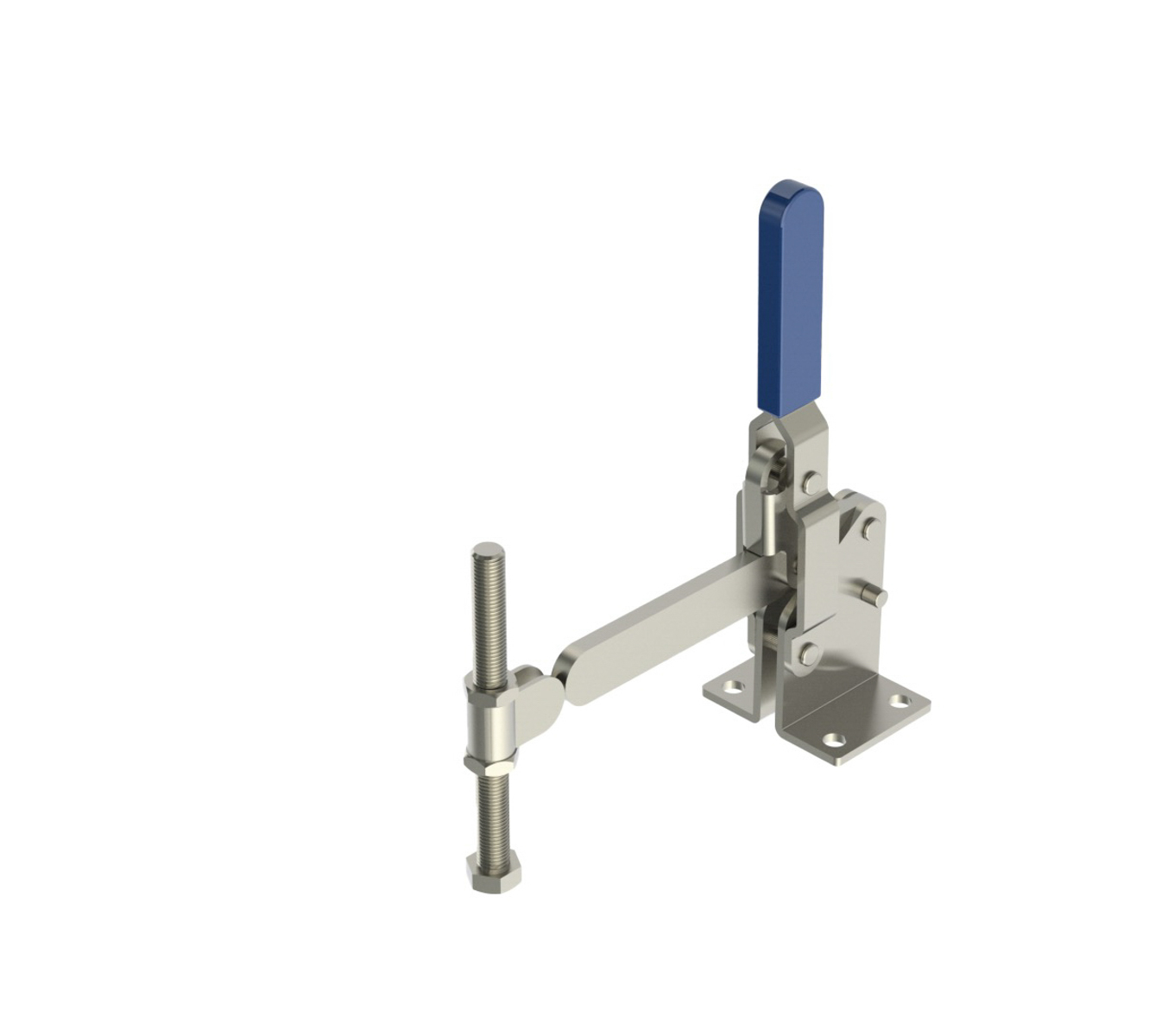

| 70053-SS | Inch | Flanged | Solid | 70° | 140° | 1200 | 4.41 |
| Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 70053 | Metric | Flanged | Solid | 70° | 140° | 5.40 | 2.00 | |
| 70053-SS | Metric | Flanged | Solid | 70° | 140° | 5.40 | 2.00 |
