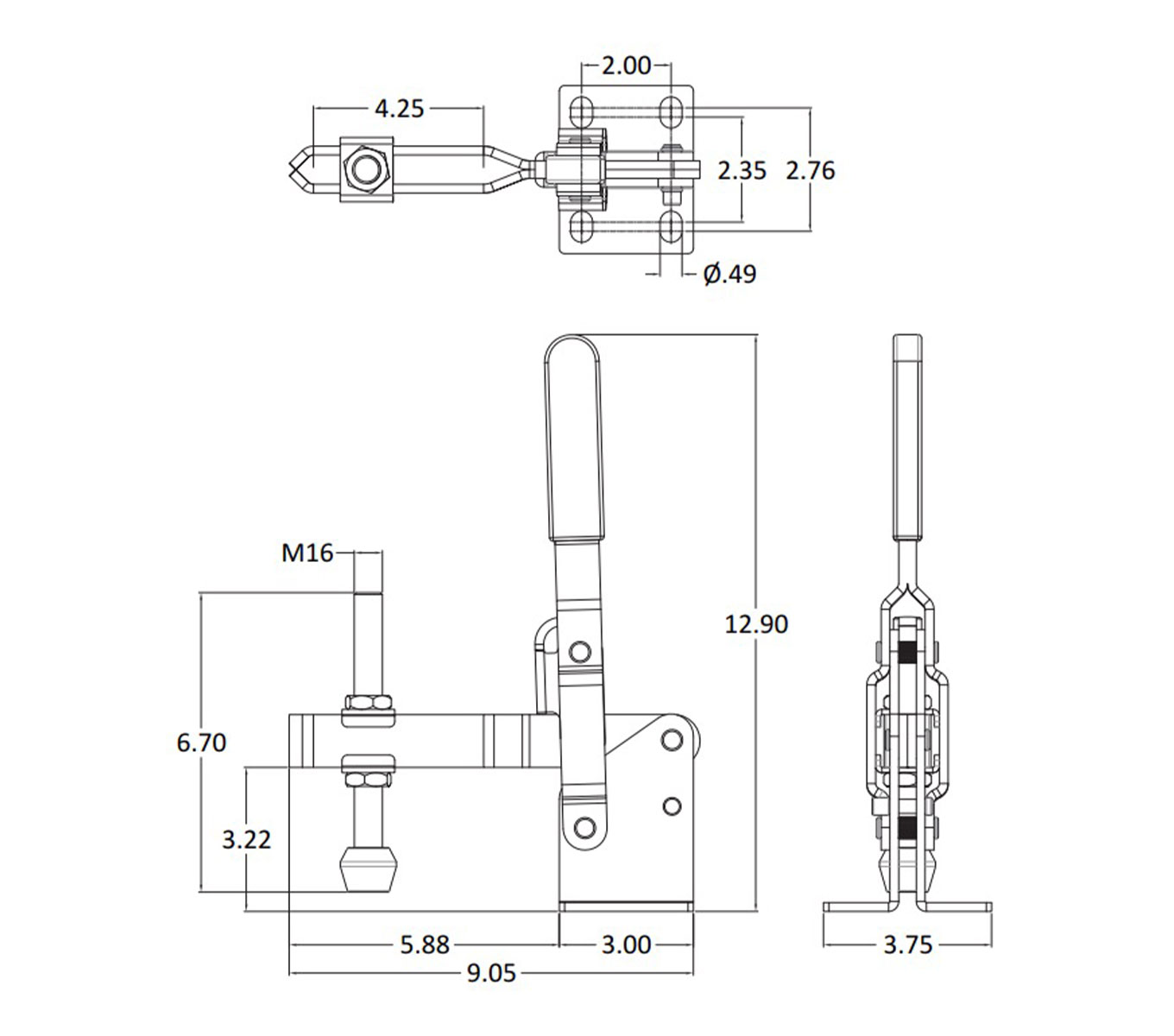

1200 LB CAP Vertical Toggle Clamp with Flanged Base & Adjustable U-Bar
Jergens Vertical Hold Down Action Toggle Clamps hold the workpiece with a downward clamping action. The clamp exhibits a minimum of 90° opening angle giving full clearance for loading and unloading the workpiece.
Features, Benefits, & Product Specifications:
-
Body Material & Finish: Low Carbon Steel, Zinc Plated
-
Handle: PVC Dipped T-handle for easier gripping
-
Holding capacity up to 1200 lbs
-
Vertical handles are designed with a minimum of 90° opening angle
-
Adjustable U-Bar enables the user to adjust the clamp for various workpiece sizes
Note(s):
-
"Holding Capacity" measurement applies to the U-Bar position closest to the handle.
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
1200 LB CAP Vertical Toggle Clamp with Flanged Base & Adjustable U-Bar
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (lbs) | Weight (lbs) |
---|---|---|---|---|---|---|---|---|
70016 | Inch | Flanged | Adjustable U-Bar | 70° | 140° | 1200 | 4.90 |
Part Number | CAD | Unit | Base | Arm | Handle Moves | Bar Opens | Holding Capacity (kN) | Weight (kgs) |
---|---|---|---|---|---|---|---|---|
70016 | Metric | Flanged | Adjustable U-Bar | 70° | 140° | 5.40 | 2.20 |
