12 Station Production Vise Columns

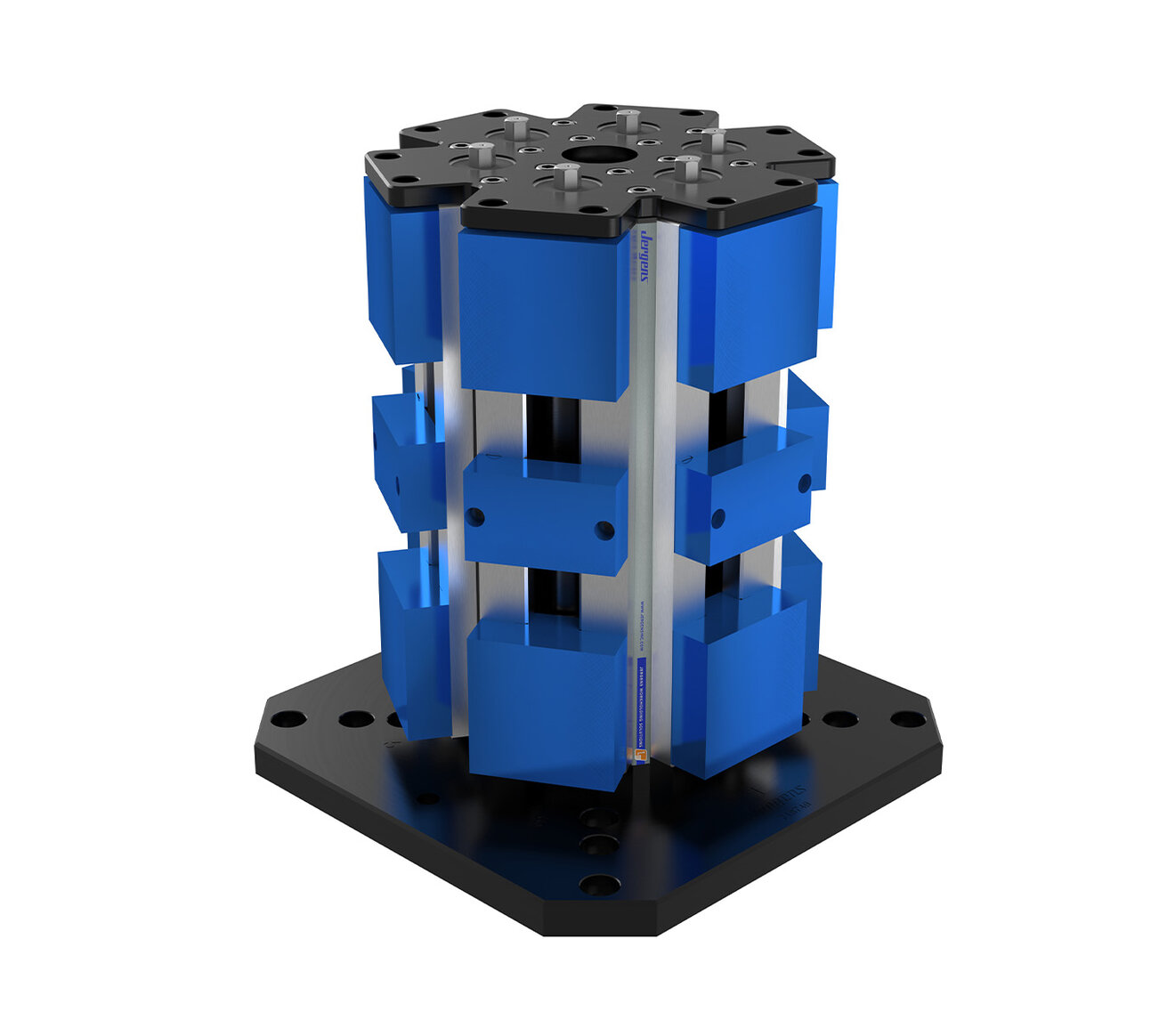

Jergens 12 Station Production Vise Columns provide (12) stations to maximize the number of parts per load. Available with bases to fit directly onto your machine table or to a Ball Lock® Subplate.
Features, Benefits, & Product Specifications:
-
Reduce part processing costs by machining (3) sides of (12) parts
-
Increase unattended machine time
-
Improve part throughput
-
One-piece column with hardened stainless steel guideways
-
Full jaw travel permits clamping a larger variety of parts
-
Custom mounting patterns & base sizes are available upon request
Note(s):
- Max Jaw Opening: Larger parts can be clamped by machining jaws to fit the workpiece.
- Mounting Pattern 1 and Mounting Pattern 2: The bases on Universal Columns are provided with (2) sets of mounting holes to fit grids or T-Slots on 80mm and 100mm centers
12 Station Production Vise Columns
Select a part number for CAD drawings, price and stock availability.

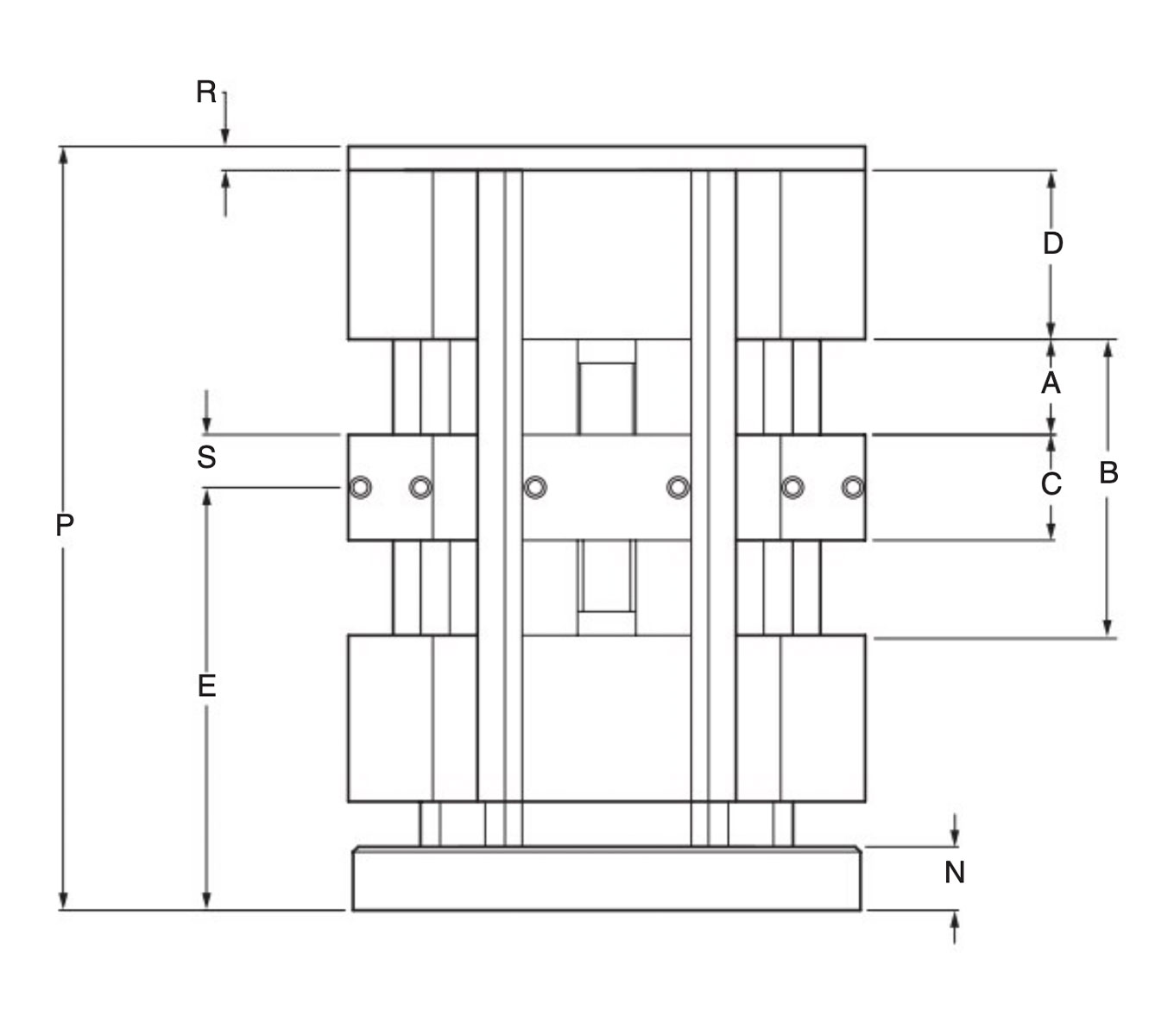

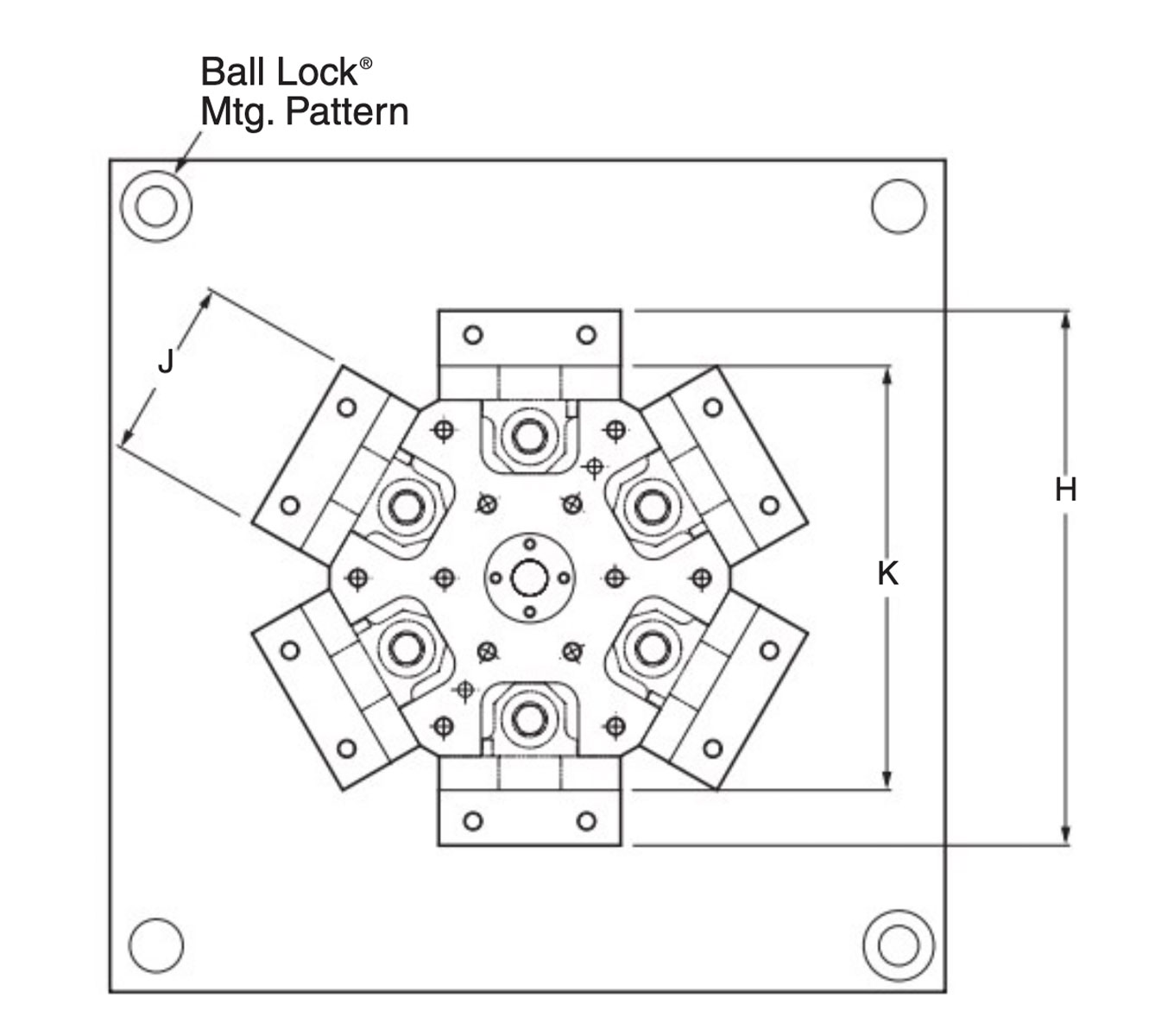

| Part Number | CAD | Unit | Vise Size | Compatibility | Max Jaw Opening A (In) | Max Jaw Opening B (In) | Fixed Jaw Width C (In) | Moveable Jaw Length D (In) | Base to Center of Fixed Jaw E (In) | Overall Width H (In) | Jaw Width J (In) | Outside Rail to Rail K (In) | Base Plate Thickness N (In) | Overall Height P (In) | Top Plate Thickness R (In) | Center to Face S (In) | Base Length and Width (In) | Ball Lock Mounting Pattern | Mounting Pattern 1 | Mounting Pattern 2 | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49413 | Inch | 4" | Ball Lock Base | 2.25 | 7 | 2.50 | 4 | 8.50 | 11.81 | 4 | 9.37 | 1 | 17.56 | 0.56 | 1.25 | 15.75 | 14 x 14 | - | - | 206 | |
| 49414 | Inch | 6" | Ball Lock Base | 3.50 | 10 | 3.00 | 5 | 11.00 | 16.91 | 6 | 14.01 | 1 | 22.56 | 0.56 | 1.50 | 19.68 | 17 x 17 | - | - | 335 | |
| 49477 | Inch | 4" | Universal Base | 2.25 | 7 | 2.50 | 4 | 8.50 | 11.81 | 4 | 9.37 | 1 | 17.56 | 0.56 | 1.25 | 15.75 | - | 80MM | 100MM | 206 | |
| 49478 | Inch | 6" | Universal Base | 3.50 | 10 | 3.00 | 5 | 11.00 | 16.91 | 6 | 14.01 | 1 | 22.56 | 0.56 | 1.50 | 19.68 | - | 80MM | 100MM | 355 |
