1,000 LB CAP Pulling Action Vertical Latch Toggle Clamps
Jergens Pull Action Latch Toggle Clamps are designed for sealing chambers, doors, mold closures, or other applications requiring closure mechanisms. The handle can be moved to place the clamping U-Bolt or hook around the opposing latch and then pulled down to reach the locked position. The threaded “hook” or “U-Bolt” type bars offer an adjustment feature. The clamps can withstand loads ranging up to 7,700 lbs.
Jergens True-Lok™ Toggle Clamps encompass a range of standard styles and sizes. Manufactured using quality materials, the highly efficient setup of True-Lok™ enables you to work quickly and accurately.
- Vertical, Horizontal, Push/Pull, and Latch styles are available
- Corrosion Resistant Stainless Steel clamps are available
- Quality materials and workmanship
- Industry-standard designs
- The most popular sizes and styles
- Off-the-shelf availability
- Competitively priced – providing outstanding value
Documents

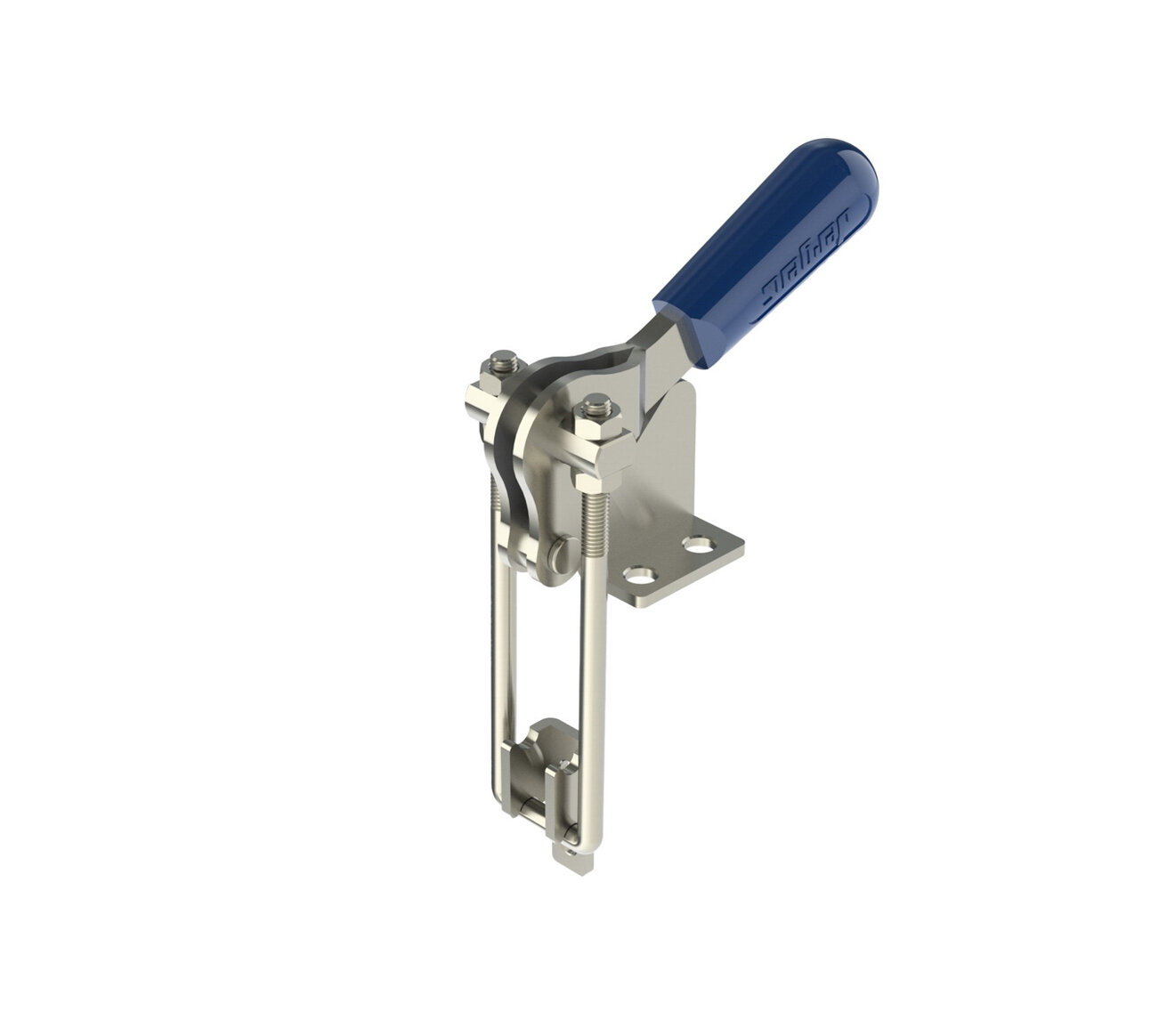

1,000 LB CAP Pulling Action Vertical Latch Toggle Clamps
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Drawing Movement (In) | Holding Capacity (lbs) | Weight (lbs) |
---|---|---|---|---|---|
70035 | Inch | 2.25 | 1,000 | 0.68 | |
70035-SS | Inch | 2.25 | 1,000 | 0.68 |
Part Number | CAD | Unit | Drawing Movement (mm) | Holding Capacity (kN) | Weight (kgs) |
---|---|---|---|---|---|
70035 | Metric | 57 | 4.45 | 0.31 | |
70035-SS | Metric | 57 | 4.45 | 0.31 |
