5-Axis Subplates

Jergens 5-Axis Subplates mount to machine table with center bore and do not include mounting holes.
Features, Benefits, & Product Specifications:
  • Material: 1018 Carbon Steel
  • Thickness Tolerance: ±0.005
  • Flat & parallel within 0.0005"/ft. (0.013mm)
  • Includes pre-installed QLS Bushings


Documents

5-Axis Subplates

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Style A (mm) B (mm) Subplate Thickness (mm) Locating Method Timing Pin Part Number Mounting Type Grid Weight (kgs)
5QP130020 icon_cad Metric VMC 130 250 35 Center (50H7), Timing Pin 5LP1225001 12mm SHCS 50mm x 50mm 9.01
5QP250020 icon_cad Metric VMC 250 340 35 Center (12MM), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 23.47
5SP130 icon_cad Metric Round 130 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 2.86
5SP160 icon_cad Metric Round 160 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 4.7
5SP210 icon_cad Metric Round 210 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 8.54
5SP250 icon_cad Metric Round 250 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 12
5SP310 icon_cad Metric Round 310 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 19

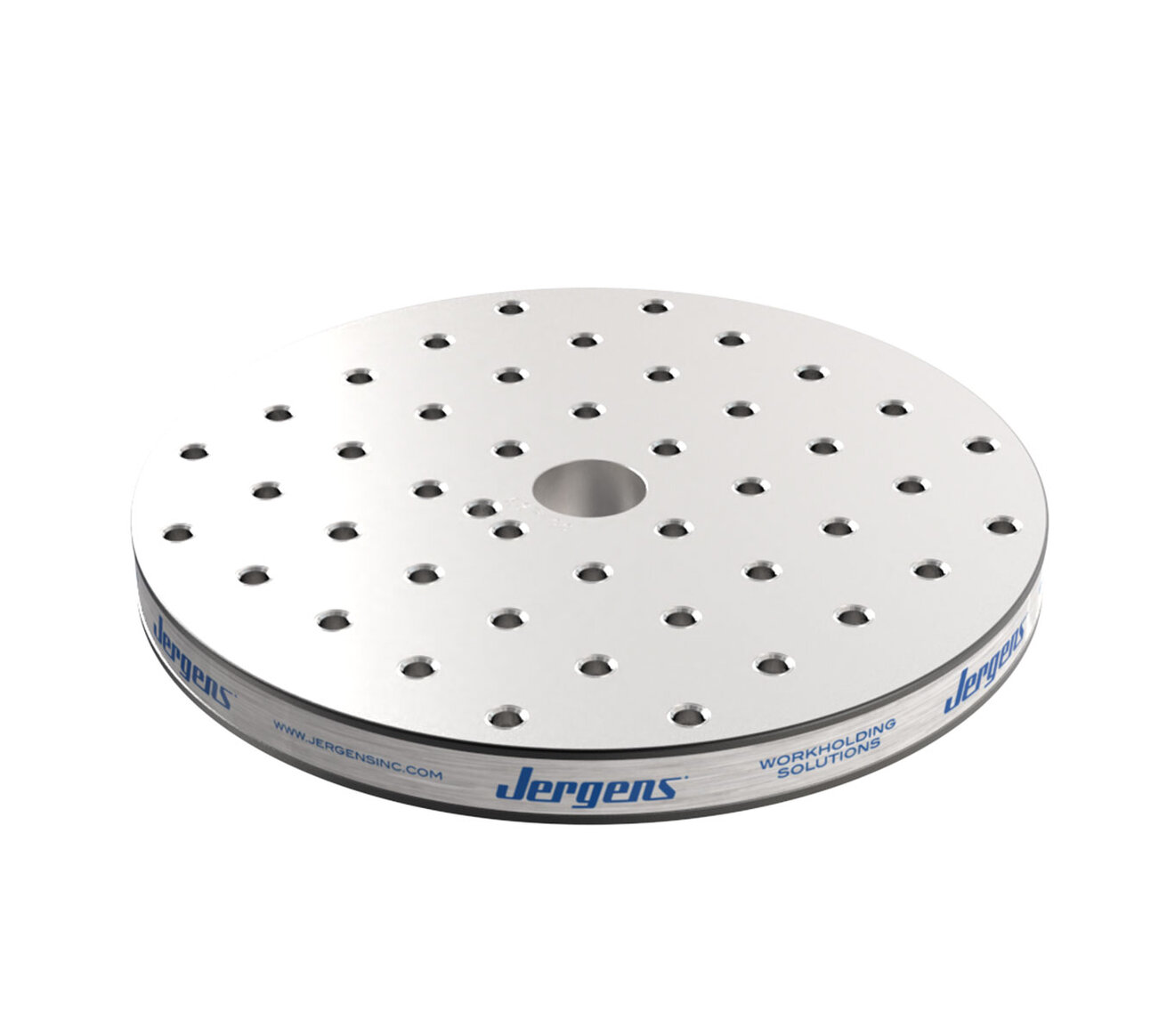

5SP400 icon_cad Metric Round 400 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 31.95

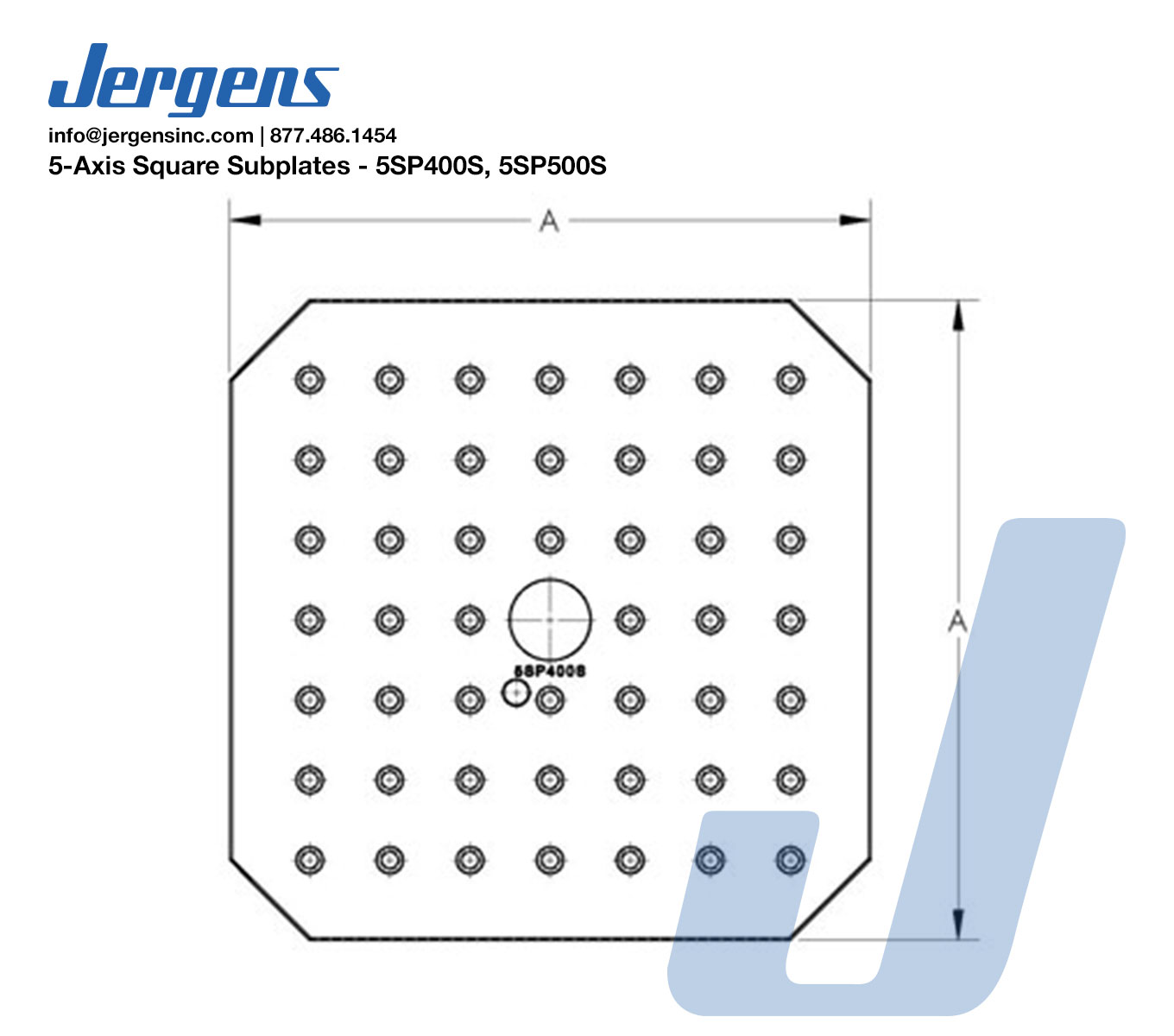

5SP400S icon_cad Metric Square 400 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 39.9
5SP500 icon_cad Metric Round 500 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 50.3

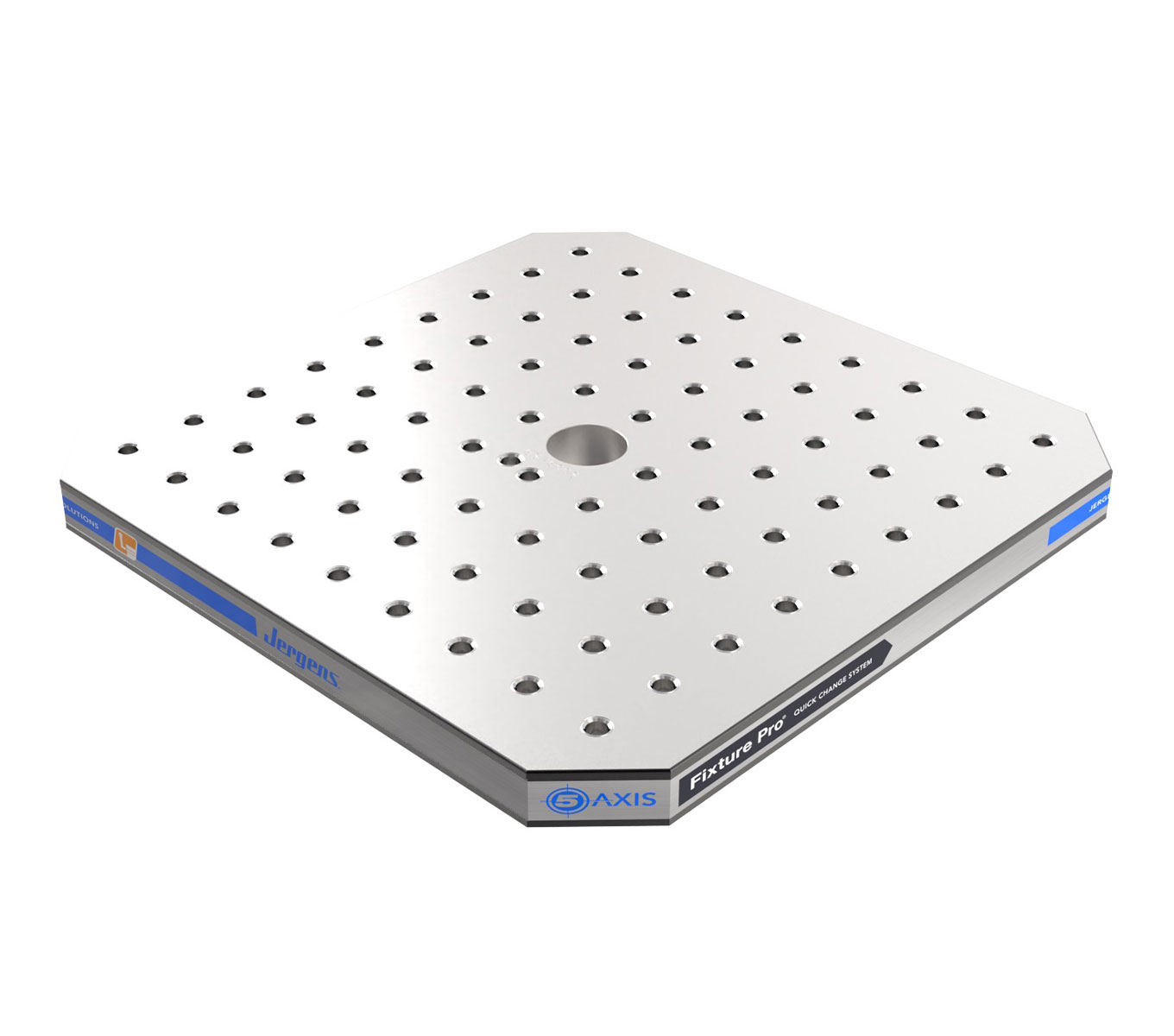

5SP500S icon_cad Metric Square 500 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 12MM X 50MM 63.2
5SP630 icon_cad Metric Round 630 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 80.2
5SP800 icon_cad Metric Round 800 - 35 Center (50H7), Timing Pin 5LP1225001 12MM SHCS 50MM X 50MM 134.4
