5-Axis Locating Pins
Jergens 5-Axis Locating Pins locate subplates to machine rotary tables, risers to subplates, and mount Fixture-Pro® top tooling directly to a rotary table.
Features, Benefits, & Product Specifications:
-
Material: 1018 Carbon Steel
-
Tolerance: ±0.0002" (0.005mm)
5-Axis Locating Pins

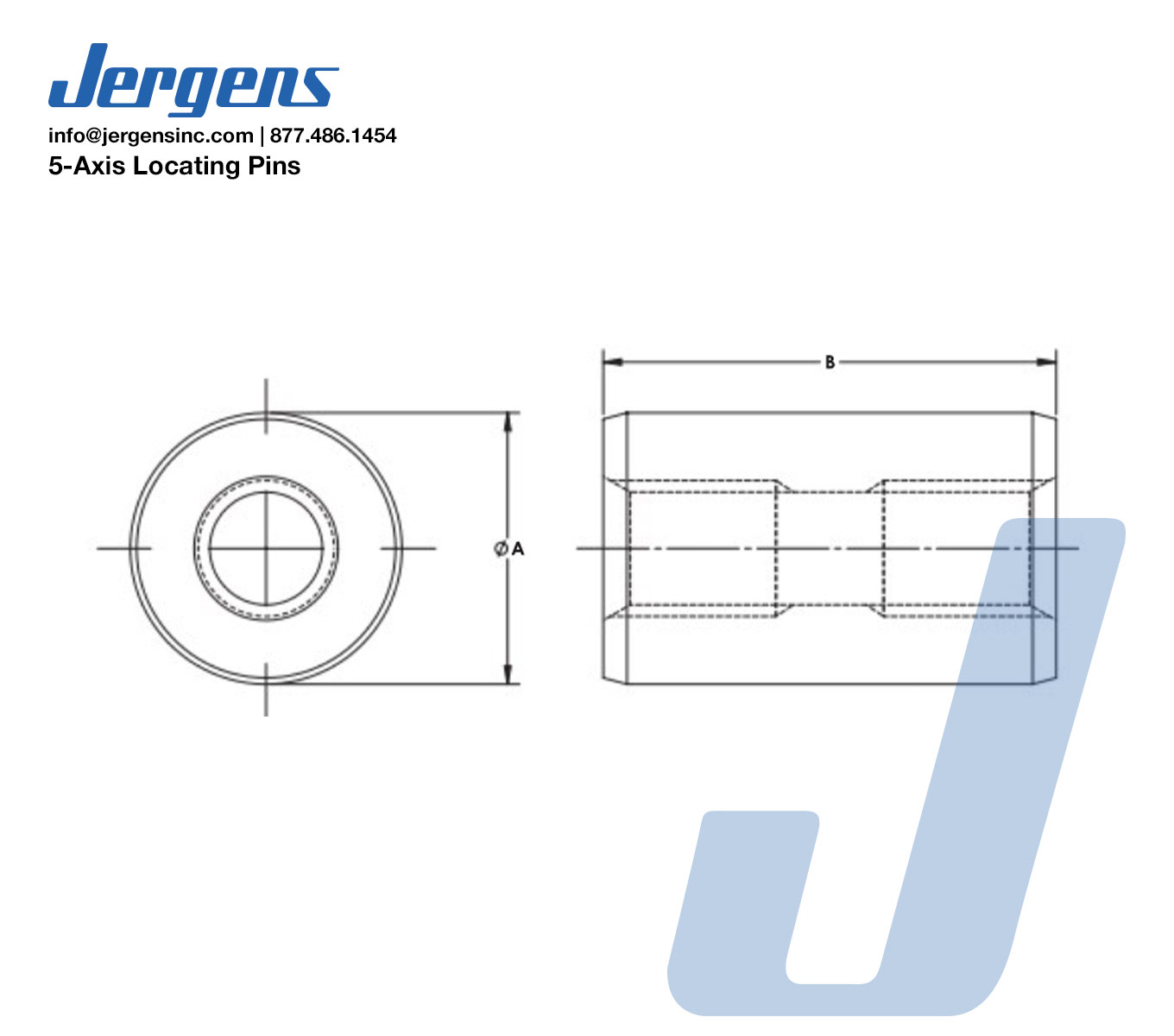

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Type | A (mm) | B (mm) | C (mm) | D (mm) | Screw Size | Thread Size | Style | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5LP1220 |
|
Metric | QLS Dowel Pin | 12 | 20 | - | - | - | M6 | - | 0.014 |
| 5LP1220001 |
|
Metric | Diamond Timing Pin | 12 | 20 | - | - | - | M6 | - | 0.014 |
| 5LP1225 |
|
Metric | QLS Dowel Pin | 12 | 25 | - | - | - | M6 | - | 0.018 |
| 5LP1225001 |
|
Metric | Diamond Timing Pin | 12 | 25 | - | - | - | M6 | - | 0.018 |
| 5LP1230 |
|
Metric | QLS Dowel Pin | 12 | 30 | - | - | - | M6 | - | 0.023 |
| 5LP1230001 |
|
Metric | Diamond Timing Pin | 12 | 30 | - | - | - | M6 | - | 0.023 |
| 5LP123020 | Metric | Center Step Locator | 30 | 12 | 20 | 32 | - | - | B | 0.12 | |
| 5LP12512 |
|
Metric | Center Step Locator | 31.8 | 12 | 12 | 27 | - | - | A | 0.10 |
| 5LP1255020 |
|
Metric | Center Step Locator | 50 | 20 | 31.75 | 40 | M12, 1/2 SHCS | - | B | 0.36 |
| 5LP15012 | Metric | Center Step Locator | 12 | 38.1 | 7 | 22 | - | - | A | 0.13 | |
| 5LP50110 |
|
Metric | Center Locator Pin (Long) | 50 | 110 | - | - | M12, 1/2 SHCS | - | - | 1.52 |
| 5LP50150 | Metric | Center Step Locator | 50 | 38.1 | 5.84 | 43 | M16, 1/4 SHCS | - | B | 0.40 | |
| 5LP50200 | Metric | Center Step Locator | 50 | 50.8 | 6.86 | 43 | M6, 1/4 SHCS | - | B | 0.66 | |
| 5LP5030 | Metric | Center Locator Pin | 50 | 30 | - | - | M12, 1/2 SHCS | - | - | 0.40 | |
| 5LP5040 | Metric | Center Locator Pin | 50 | 40 | - | - | M12, 1/2 SHCS | - | - | 0.54 | |
| 5LP5050 |
|
Metric | Center Locator Pin (Long) | 50 | 50 | - | - | M12, 1/2 SHCS | - | - | 0.68 |
| 5LP5050001 |
|
Metric | Center Step Locator | 50 | 50.8 | 28 | 50 | M12, 1/2 SHCS | - | A | 0.70 |
| 5LP5050002 |
|
Metric | Center Step Locator | 50 | 38.1 | 24 | 50 | M12, 1/2 SHCS | - | B | 0.53 |
| 5LP5070 |
|
Metric | Center Locator Pin (Long) | 50 | 70 | - | - | M12, 1/2 SHCS | - | - | 0.96 |
| 5LP5090 |
|
Metric | Center Locator Pin (Long) | 50 | 90 | - | - | M12, 1/2 SHCS | - | - | 1.24 |
| 5LP60150 | Metric | Center Step Locator | 60 | 38.1 | 19.05 | 56 | M6, 1/4 SHCS | - | B | 0.73 |
