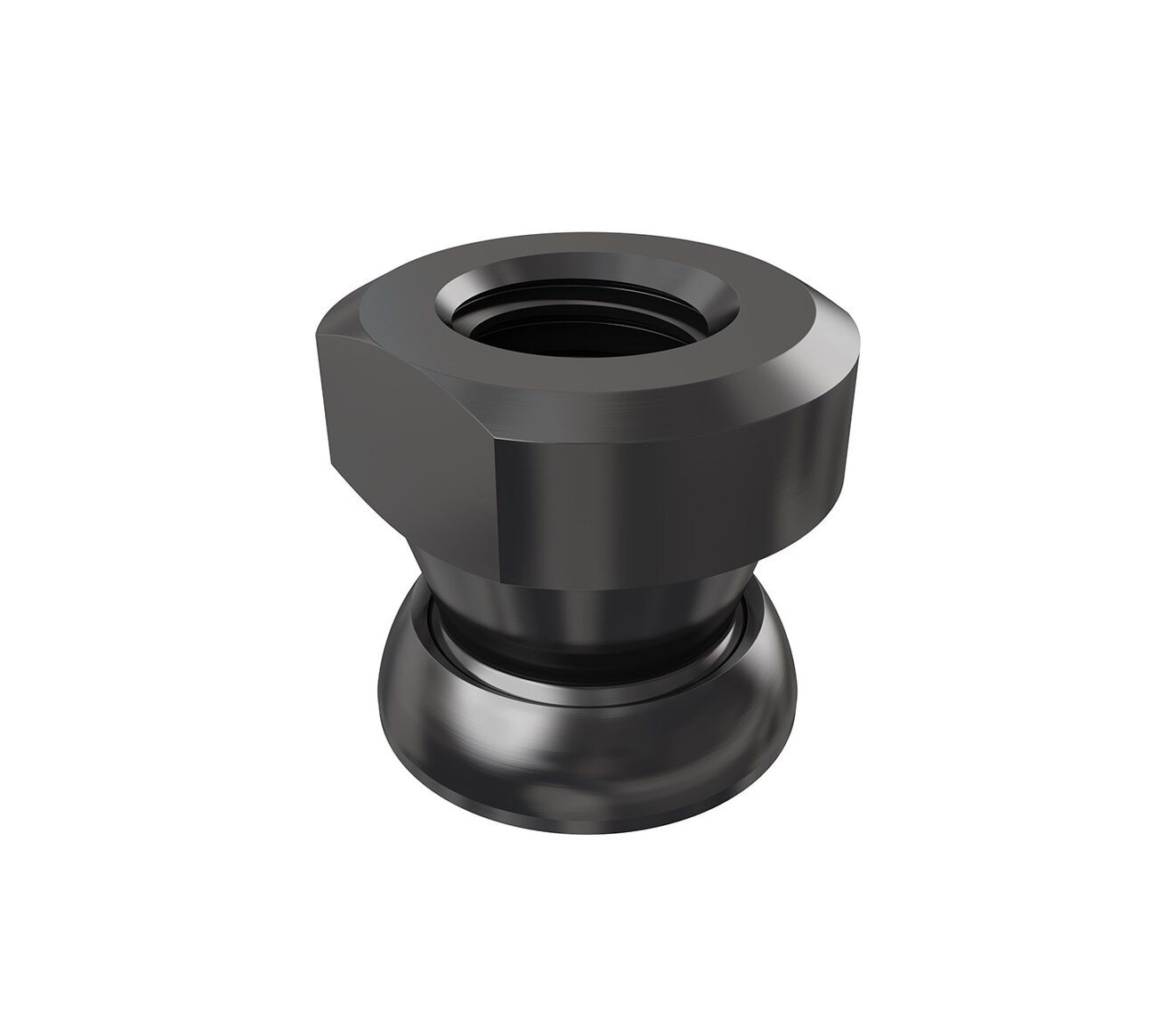

Toggle Pads
Carbide Tipped Toggle Pads provide multiple point contact to compensate for surfaces that are rough or out-of-round. Points will embed themselves in the workpiece, which assures positive gripping. It eliminates possible radial load on the workpiece. Note: Metric Toggle Pads have two flats instead of a hex configuration on the head. Material: 4140 or Carbide insert tip Finish: Black Oxide Heat Treat: Plain Pad Rc 36-40 Thread: 2B-UNC Available in FixturePro Design Software and PartSpec CD
Toggle Pads
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | A | B (In) | C (In) | D (In) | E (In) |
|---|---|---|---|---|---|---|---|---|
| 43502 |
|
Inch | Plain | 1/4-20 | 1/2 | 1/2 | 9/16 | - |
| 43503 |
|
Inch | Plain | 5/16-18 | 9/16 | 11/16 | 5/8 | - |
| 43504 |
|
Inch | Plain | 3/8-16 | 5/8 | 25/32 | 11/16 | - |
| 43505 |
|
Inch | Plain | 1/2-13 | 3/4 | 7/8 | 13/16 | - |
| 43506 |
|
Inch | Plain | 5/8-11 | 7/8 | 1 | 15/16 | - |
| 43507 |
|
Inch | Plain | 3/4-10 | 1 1/16 | 1 5/32 | 1 1/8 | - |
| 43702 |
|
Inch | Serrated | 1/4-20 | 1/2 | 9/16 | 9/16 | 0.055 |
| 43703 |
|
Inch | Serrated | 5/16-18 | 9/16 | 3/4 | 5/8 | 0.055 |
| 43704 |
|
Inch | Serrated | 3/8-16 | 5/8 | 53/64 | 11/16 | 0.055 |
| 43705 |
|
Inch | Serrated | 1/2-13 | 3/4 | 15/16 | 13/16 | 0.055 |
| 43706 |
|
Inch | Serrated | 5/8-11 | 7/8 | 1 1/32 | 15/16 | 0.086 |
| 43707 |
|
Inch | Serrated | 3/4-10 | 1 1/16 | 1 1/4 | 1 1/8 | 0.086 |
| Part Number | CAD | Unit | Style | A | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|
| 43552 |
|
Metric | Plain | M6x1.0 | 12 | 13 | 14 | - |
| 43553 |
|
Metric | Plain | M8x1.25 | 14 | 17 | 16 | - |
| 43554 |
|
Metric | Plain | M10x1.5 | 16 | 18 | 18 | - |
| 43555 |
|
Metric | Plain | M12x1.75 | 22 | 22 | 21 | - |
| 43556 |
|
Metric | Plain | M16x2.0 | 22 | 25 | 24 | - |
| 43557 |
|
Metric | Plain | M20x2.5 | 30 | 29 | 28 | - |
| 43752 |
|
Metric | Serrated | M6x1.0 | 12 | 14 | 14 | 1.4 |
| 43753 |
|
Metric | Serrated | M8x1.25 | 14 | 18 | 16 | 1.4 |
| 43754 |
|
Metric | Serrated | M10x1.5 | 16 | 20 | 18 | 1.4 |
| 43755 |
|
Metric | Serrated | M12x1.75 | 22 | 24 | 21 | 1.4 |
| 43756 |
|
Metric | Serrated | M16x2.0 | 22 | 26 | 24 | 2.2 |
| 43757 |
|
Metric | Serrated | M20x2.5 | 30 | 31 | 28 | 2.2 |
