Top Flange Swing Cylinders

Jergens Top Flange Swing Cylinders are popular and highly adaptable swing style cylinders that contain built-in features which allow users to simplify the design process. They are directly interchangeable with competitive products.
Features, Benefits, & Product Specifications:
  • Clamping capacities from 1,100 lbs - 5,000 lbs max.
  • Versatile manifold mount or conventionally plumbed
  • Single and Double Acting available
  • Available in (3) body sizes
  • Assortment of Swing Cylinder Arms available (see Related Products below)
  • Popular top flange mounting style
  • The piston rotates 90° to the right but may be ordered with 90° left rotation (add -LH to clamp part number) or no rotation (add -SP to clamp part number)
Note(s):
  • WARNING: All swing cylinders must be used with Flow Limit Valves to dampen the rotating action.
  • CAUTION: Don't allow the swing arm to contact the workpiece or fixture while rotating.
Table Callout:
Table 1) Manifold Mounting Dimensions
Table 2) Technical Specifications

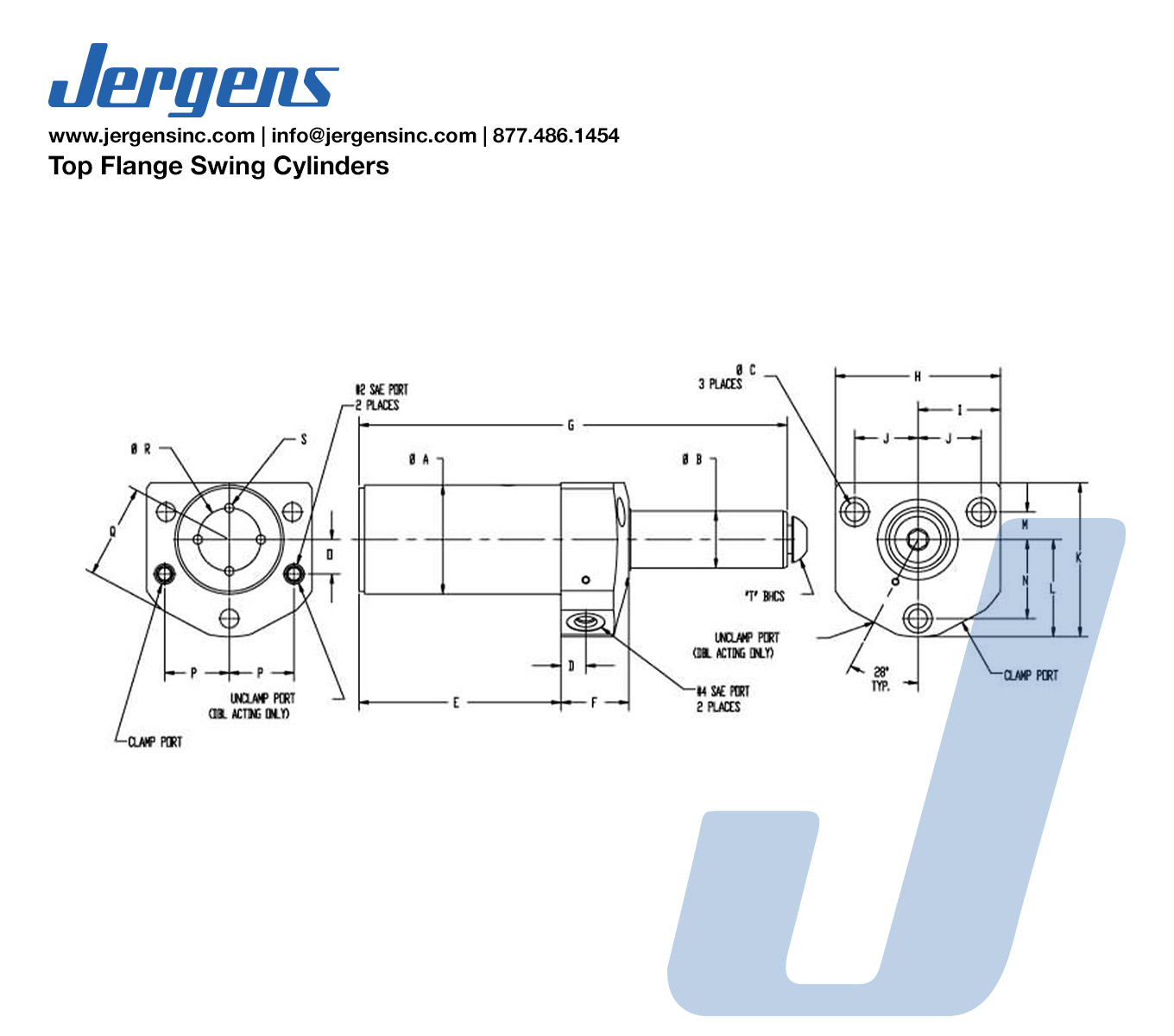

Table 3) Bottom Flange Mount Dimensions


Documents

Top Flange Swing Cylinders

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit A B C D E F G
60660 icon_cad Inch 1.476 1/4-20 0.340 1.030 0.880 0.560 0.845
60662 icon_cad Inch 1.809 5/16-18 0.440 1.250 1.000 0.530 1.050
60664 icon_cad Inch 2.433 3/8-16 0.600 1.720 1.375 0.750 1.410
60670 icon_cad Inch 1.476 1/4-20 0.340 1.030 0.880 0.560 0.845
60672 icon_cad Inch 1.809 5/16-18 0.440 1.250 1.000 0.530 1.050
60674 icon_cad Inch 2.433 3/8-16 0.600 1.720 1.375 0.750 1.410
Part Number CAD Unit Maximum Output Force Stroke Total Stroke Rotating Stroke Clamping Op Volume Clamp Op Volume Unclamp Minimum Operating Pressure (psi) Maximum Operating Pressure (psi) Effective Piston Area
60660 icon_cad Inch 1,100 lbs .79 in .45 in .31 in .23 in3 N/A in3 750 psi 5,000 psi .30
60662 icon_cad Inch 2,600 lbs 1.16 in .64 in .52 in .72 in3 N/A in3 750 psi 5,000 psi .62
60664 icon_cad Inch 5,000 lbs 1.66 in 1.03 in .63 in 1.98 in3 N/A in3 750 psi 5,000 psi 1.18
60670 icon_cad Inch 1,100 lbs .76 in .45 in .31 in .23 in3 .46 in3 500 psi 5,000 psi .30
60672 icon_cad Inch 2,600 lbs 1.16 in .64 in .52 in .72 in3 1.43 in3 500 psi 5,000 psi .62
60674 icon_cad Inch 5,000 lbs 1.66 in 1.03 in .63 in 1.98 in3 4.00 in3 500 psi 5,000 psi 1.18
Part Number CAD Unit A B C D E F G H I J K L M N O P Q R S T Kit
60660 icon_cad Inch 1.43 0.623 0.28 0.38 2.57 1.03 5.28 2.31 1.16 0.88 2.06 1.32 0.34 1.03 0.56 0.85 1.23 0.66 0.136 3/8-24 x 5/8 62360
60662 icon_cad Inch 1.75 0.874 0.34 0.41 3.35 1.06 6.78 2.69 1.35 1.00 2.53 1.63 0.44 1.25 0.53 1.05 1.53 1.00 0.196 1/2-20 x 3/4 62362
60664 icon_cad Inch 2.37 1.247 0.41 0.54 4.40 1.48 9.33 3.60 1.80 1.38 3.35 2.12 0.60 1.72 0.75 1.41 2.04 1.38 0.196 5/8-18 x 1 62364
60670 icon_cad Inch 1.43 0.623 0.28 0.38 2.57 1.03 5.28 2.31 1.16 0.88 2.06 1.32 0.34 1.03 0.56 0.85 1.23 0.66 0.136 3/8-24 x 5/8 62360
60672 icon_cad Inch 1.75 0.874 0.34 0.41 3.35 1.06 6.78 2.69 1.35 1.00 2.53 1.63 0.44 1.25 0.53 1.05 1.53 1.00 0.196 1/2-20 x 3/4 62362
60674 icon_cad Inch 2.37 1.247 0.41 0.54 4.40 1.48 9.33 3.60 1.80 1.38 3.35 2.12 0.60 1.72 0.75 1.41 2.04 1.38 0.196 5/8-18 x 1 62364

Documents and Videos

  • icon_pdf Operating Manual
  • icon_pdf Operating Manual - 81600 ONLY
  • icon_pdf Jergens Production Vise System
  • icon_pdf Jergens Production Vises Features and Benefits
  • icon_pdf Vertical Machine Solutions
  • icon_pdf Horizontal Machine Solutions
  • icon_pdf Hydraulic Production Vises
  • icon_pdf Production Vises

Related Products

  • Swing Cylinder Arms
