T-Bolts

Jergens T-Slot Bolts mate with T-slot nuts to clamp workpieces onto milling machines and positioning tables. Their square head presses against the workpiece, and their threaded rod connects to a T-nut, which fits into a T-slot groove on the machine table.
Features, Benefits, & Product Specifications:
  • Material: Alloy Steel
  • Finish: Black Oxide
  • Heat Treat: RC 34-38
  • Thread: 2A-UNC
  • Available in lengths up to 24"


Documents

T-Bolts

Select a part number for CAD drawings, price and stock availability.

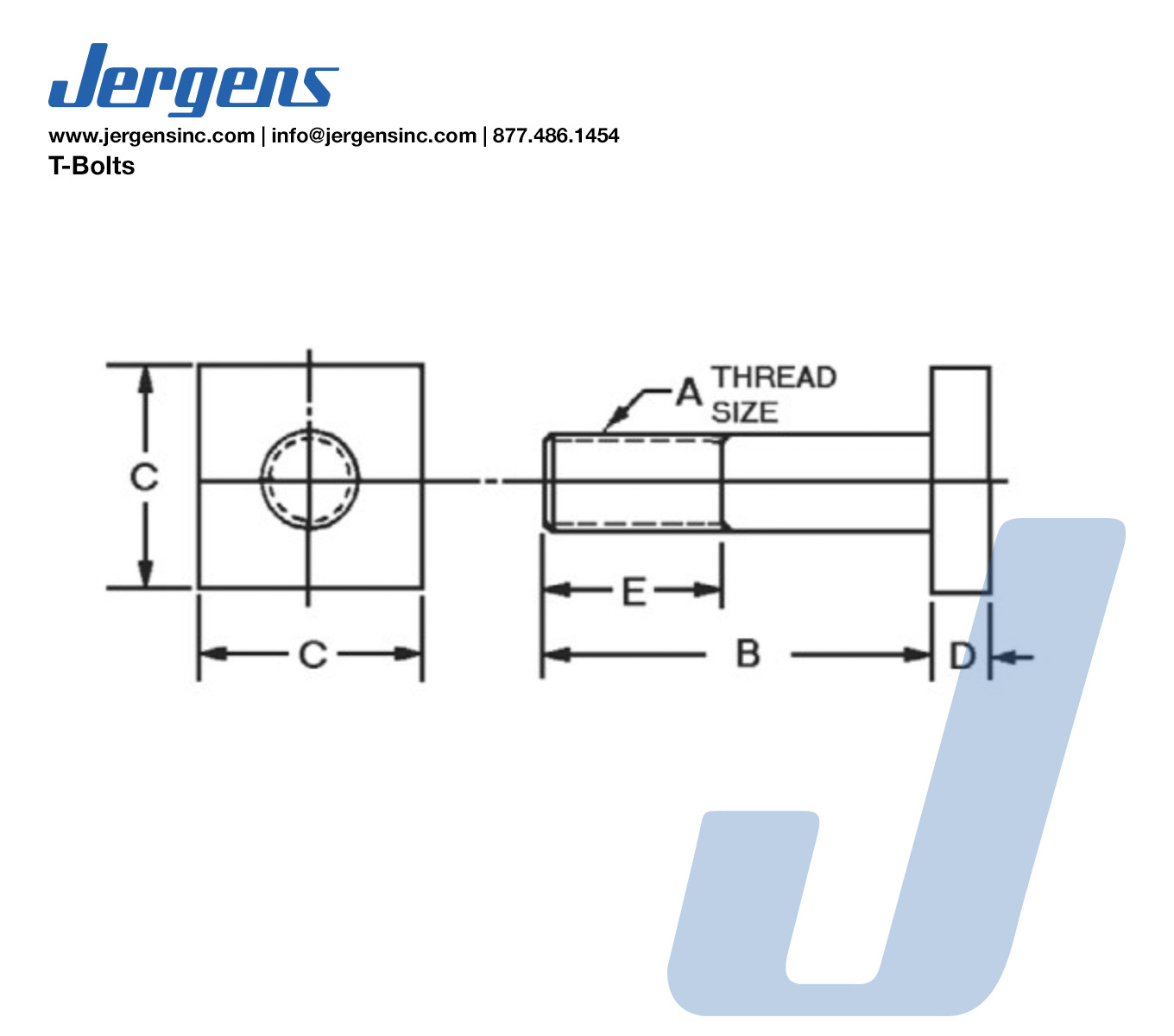

Part Number CAD Unit Thread Size A B (In) C (In) D (In) E (In) Weight (lbs)
42101 icon_cad Inch 3/8-16 1 1/2 11/16 1/4 3/4 0.07
42102 icon_cad Inch 3/8-16 2 11/16 1/4 1 1/4 0.08
42103 icon_cad Inch 3/8-16 2 1/2 11/16 1/4 1 1/4 0.09
42104 icon_cad Inch 3/8-16 3 11/16 1/4 1 1/2 0.11
42105 icon_cad Inch 3/8-16 3 1/2 11/16 1/4 1 1/2 0.12
42106 icon_cad Inch 3/8-16 4 11/16 1/4 1 1/2 0.14
42301 icon_cad Inch 1/2-13 1 1/2 7/8 1/4 3/4 0.12
42302 icon_cad Inch 1/2-13 2 7/8 1/4 1 1/4 0.14
42303 icon_cad Inch 1/2-13 2 1/2 7/8 1/4 1 1/4 0.17
42304 icon_cad Inch 1/2-13 3 7/8 1/4 1 1/2 0.20
42305 icon_cad Inch 1/2-13 3 1/2 7/8 1/4 1 1/2 0.22
42306 icon_cad Inch 1/2-13 4 7/8 1/4 2 0.25
42307 icon_cad Inch 1/2-13 4 1/2 7/8 1/4 2 0.27
42308 icon_cad Inch 1/2-13 5 7/8 1/4 2 0.30
42309 icon_cad Inch 1/2-13 5 1/2 7/8 1/4 2 0.33
42310 icon_cad Inch 1/2-13 6 7/8 1/4 2 0.36
42502 icon_cad Inch 5/8-11 2 1 1/8 3/8 1 1/4 0.28
42503 icon_cad Inch 5/8-11 2 1/2 1 1/8 3/8 1 1/4 0.33
42504 icon_cad Inch 5/8-11 3 1 1/8 3/8 1 1/2 0.37
42505 icon_cad Inch 5/8-11 3 1/2 1 1/8 3/8 1 1/2 0.41
42506 icon_cad Inch 5/8-11 4 1 1/8 3/8 1 1/2 0.44
42507 icon_cad Inch 5/8-11 5 1 1/8 3/8 1 1/2 0.53
42508 icon_cad Inch 5/8-11 6 1 1/8 3/8 1 1/2 0.61
42509 icon_cad Inch 5/8-11 8 1 1/8 3/8 3 0.78
42510 icon_cad Inch 5/8-11 10 1 1/8 3/8 3 0.97
42701 icon_cad Inch 3/4-10 2 1/2 1 1/4 1/2 1 1/4 0.48
42702 icon_cad Inch 3/4-10 3 1 1/4 1/2 1 1/2 0.55
42703 icon_cad Inch 3/4-10 3 1/2 1 1/4 1/2 1 1/2 0.61
42704 icon_cad Inch 3/4-10 4 1 1/4 1/2 1 1/2 0.66
42705 icon_cad Inch 3/4-10 5 1 1/4 1/2 1 1/2 0.78
42706 icon_cad Inch 3/4-10 6 1 1/4 1/2 1 1/2 0.90
42707 icon_cad Inch 3/4-10 8 1 1/4 1/2 3 1.17
42708 icon_cad Inch 3/4-10 10 1 1/4 1/2 3 1.38
42709 icon_cad Inch 3/4-10 12 1 1/4 1/2 3 1.62
42901 icon_cad Inch 1-8 4 1 11/16 11/16 2 1/2 1.25
42902 icon_cad Inch 1-8 5 1 11/16 11/16 2 1/2 1.50
42903 icon_cad Inch 1-8 6 1 11/16 11/16 2 1/2 1.75
42904 icon_cad Inch 1-8 8 1 11/16 11/16 3 2.00
42905 icon_cad Inch 1-8 10 1 11/16 11/16 3 2.50
42906 icon_cad Inch 1-8 12 1 11/16 11/16 3 3
42907 icon_cad Inch 1-8 14 1 11/16 11/16 3 3.50
42911 icon_cad Inch 1-8 7 1 11/16 11/16 2 1/2 1.88
43003 icon_cad Inch 1 1/4-7 8 1 7/8 1 7/8 5 3.65
43004 icon_cad Inch 1 1/4-7 9 1 7/8 7/8 5 4
43005 icon_cad Inch 1 1/4-7 10 1 7/8 7/8 5 4.35
43007 icon_cad Inch 1 1/4-7 14 1 7/8 7/8 5 5.75
43008 icon_cad Inch 1 1/4-7 16 1 7/8 7/8 5 6.45
43009 icon_cad Inch 1 1/4-7 18 1 7/8 7/8 5 7.15
43011 icon_cad Inch 1 1/4-7 22 1 7/8 7/8 5 8.20
43012 icon_cad Inch 1 1/4-7 24 1 7/8 7/8 5 9.25
