Tapered Replaceable Grippers

Jergens Tapered Replaceable Grippers make it easier to modify soft top jaws, strap clamps, or fixtures to hold irregularly shaped material. Tapered Replaceable Grippers can be installed from one side using a combination center drill, a tap, and a box wrench. There is no need to drill through holes from difficult-to-reach locations. Simply drill, tap, and install.

Tapered Hardened Steel Grippers:
  • Available in Pointed and Fine Serrated styles
  • Material: 8620 Steel
  • Finish: Black Oxide
  • Heat Treat: Case Hardened

Tapered Carbide Tipped Grippers:
  • Available in Carbide Tipped style
  • Body Material: 8620 Steel
  • Insert Material: Carbide
  • Finish: Zinc Plated


Tapered Replaceable Grippers

Select a part number for CAD drawings, price and stock availability.

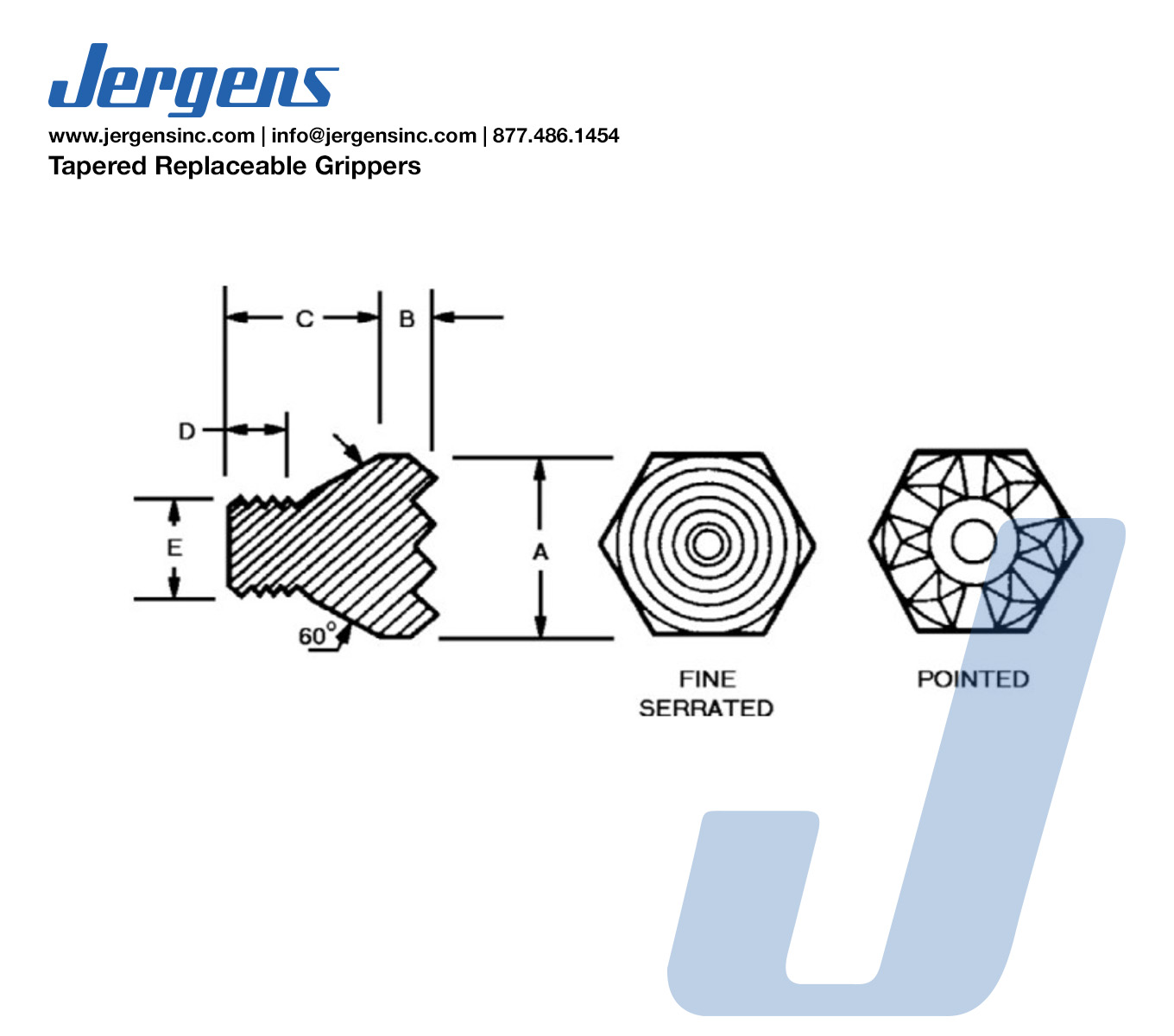

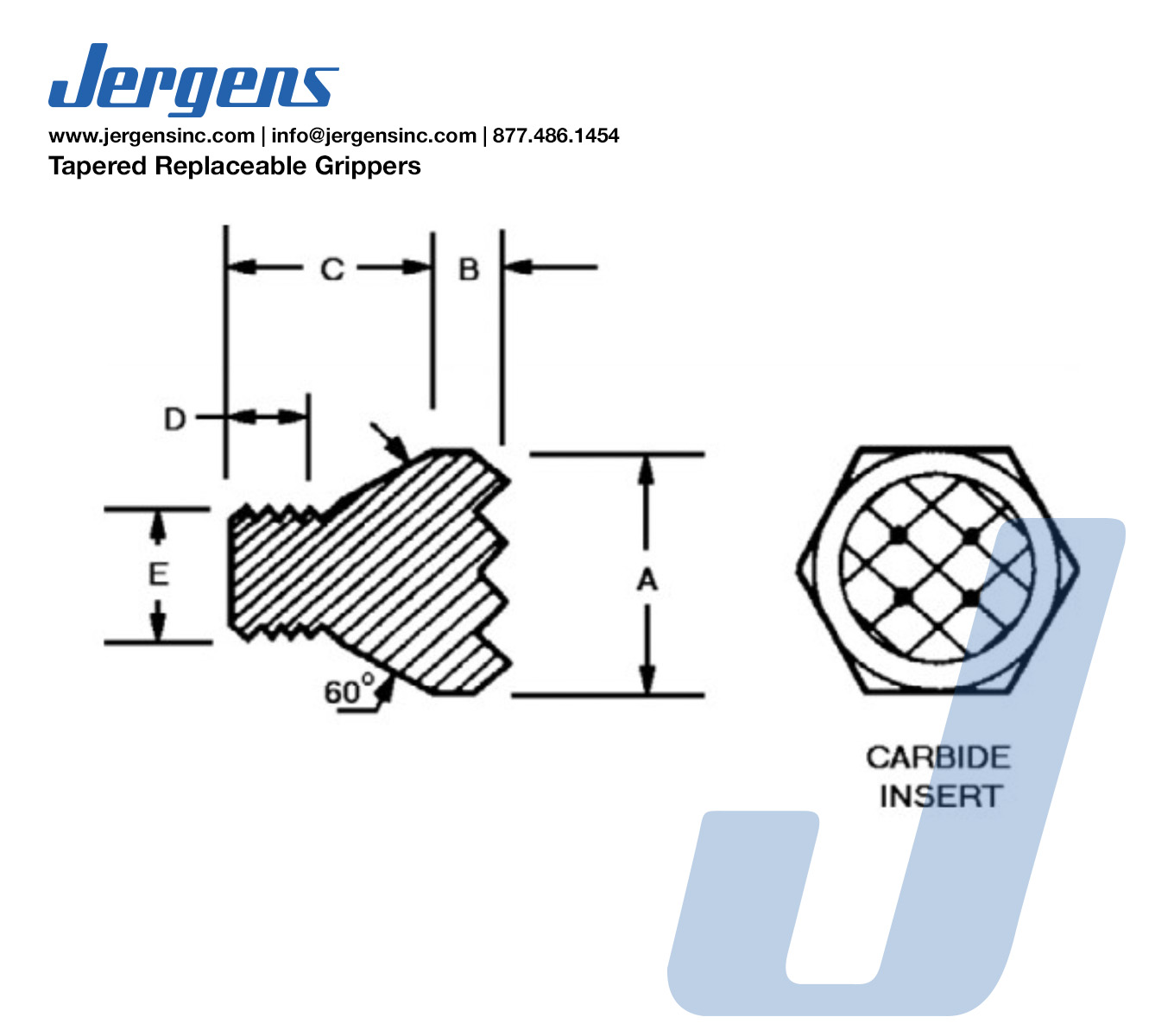

Part Number CAD Unit Type A (In) B (In) C (In) D (In) Thread E Center Drill Drill Diameter (In)
23801 icon_cad Inch Serrated 5/16 0.093 0.32 0.19 8-32 4 0.310
23802 icon_cad Inch Serrated 1/2 0.125 0.46 0.25 1/4-28 6 0.498
23803 icon_cad Inch Serrated 3/4 0.187 0.7 0.38 3/8-16 8 0.745
23811 icon_cad Inch Pointed 5/16 0.093 0.32 0.19 8-32 4 0.310
23812 icon_cad Inch Pointed 1/2 0.125 0.46 0.25 1/4-28 6 0.498
23813 icon_cad Inch Pointed 3/4 0.187 0.7 0.38 3/8-16 8 0.745

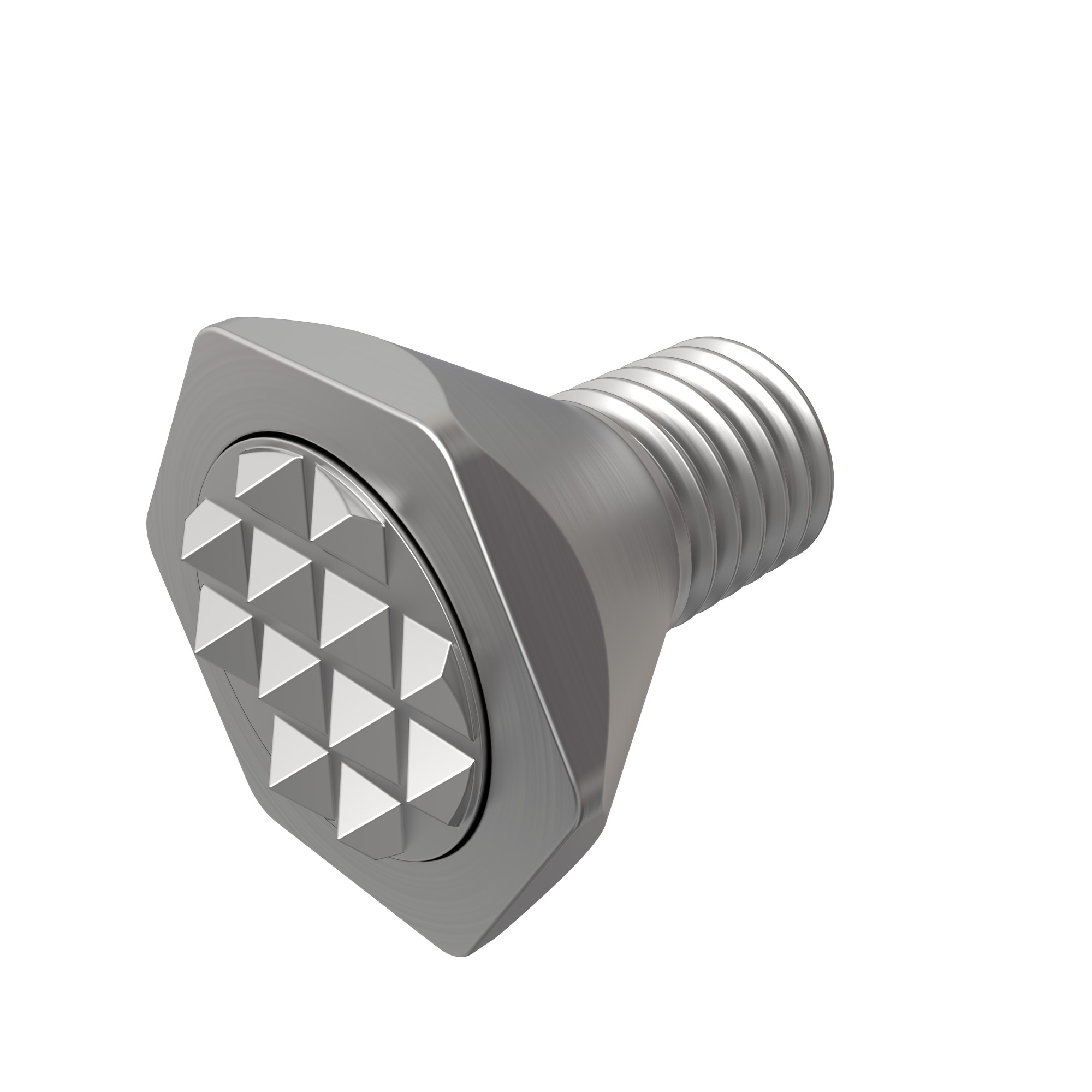

23822 icon_cad Inch Carbide 1/2 0.125 0.46 0.25 1/4-28 6 0.498
23823 icon_cad Inch Carbide 3/4 0.187 0.7 0.38 3/8-16 8 0.745
