Swing Cylinder Arms
Jergens Swing Cylinder Arms are connected and secured to our Swing Cylinders. The variety in sizes allows parts to be clamped at various distances from our Swing Cylinders.
Features, Benefits, & Product Specifications:
-
Material: 4140 Cast Steel
-
Heat Treatment: Hardened & Drawn, RC 32-36
Swing Cylinder Arms
Select a part number for CAD drawings, price and stock availability.

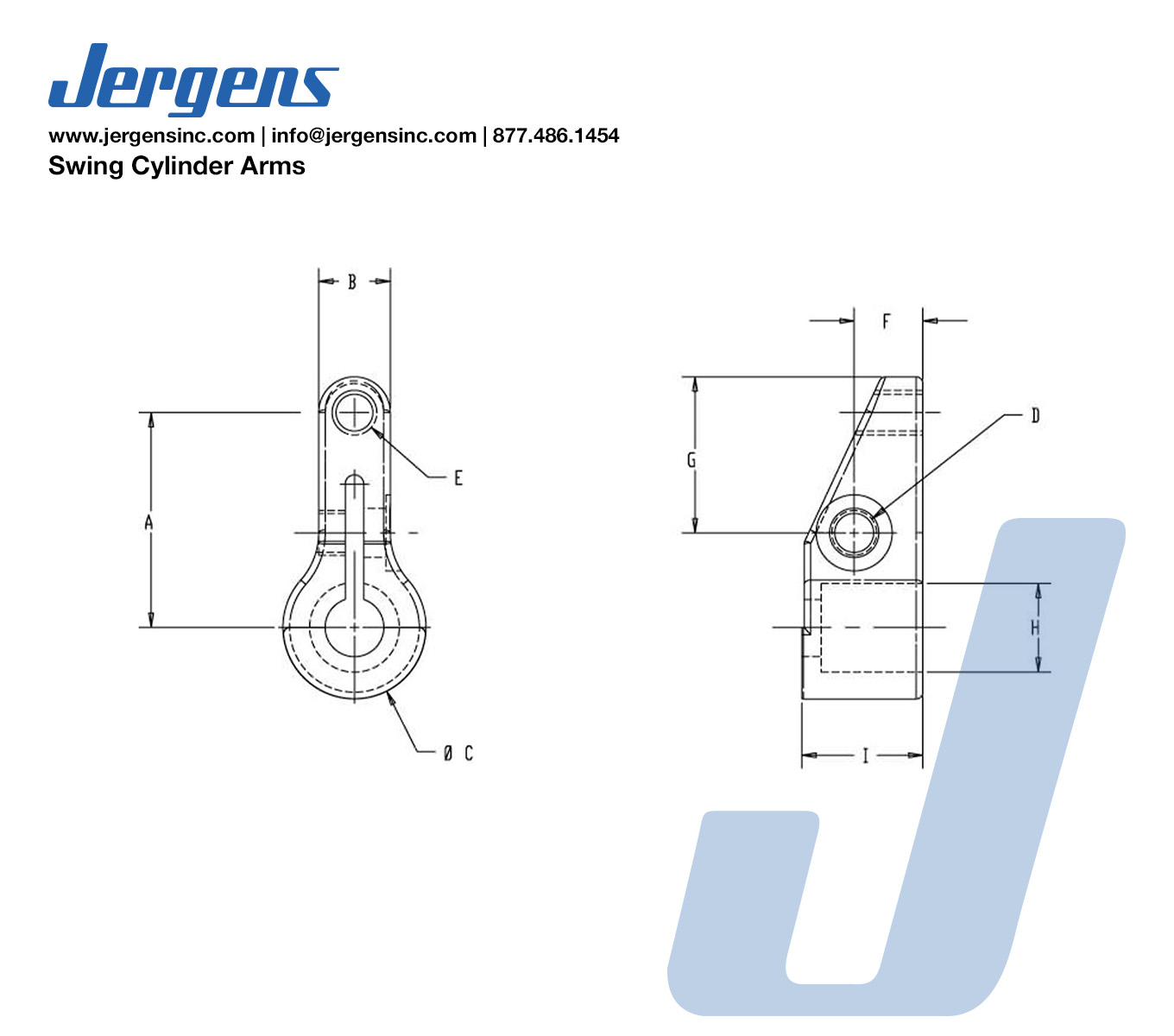

| Part Number | CAD | Unit | Style | Arm Length A (In) | Arm Width B (In) | Diameter C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60930 |
|
Inch | Single Arms - Standard Length | 1 1/2 | 1/2 | 1 | 5/16 - 24 | 5/16 - 18 | 31/64 | 1 3/32 | .6225/.6275 | 27/32 |
| 60931 |
|
Inch | Single Arms - Standard Length | 2 | 3/4 | 1 3/8 | 3/8 - 24 | 3/8 - 16 | 43/64 | 1 9/16 | .8755/.8775 | 1 5/32 |
| 60932 |
|
Inch | Single Arms - Standard Length | 2 1/2 | 1 1/4 | 1 7/8 | 5/8 - 18 | 5/8 - 11 | 7/8 | 1 7/8 | 1.2505/1.2525 | 1 21/32 |
| 60933 |
|
Inch | Single Arms - Long | 5 3/8 | 1/2 | 1 | 5/16 - 24 | 31/64 | 21/32 | 1/2 | .6255/.6275 | 27/32 |
| 60934 |
|
Inch | Single Arms - Long | 6 3/8 | 3/4 | 1 3/8 | 3/8 - 24 | 43/64 | 13/16 | 5/8 | .8755/.8775 | 1 5/32 |
| 60935 |
|
Inch | Single Arms - Long | 6 1/2 | 1 1/4 | 1 7/8 | 5/8 - 18 | 7/8 | 1 1/4 | 3/4 | 1.2505/1.2525 | 1 21/32 |
| 60936 |
|
Inch | Double Arms - Long | 8 3/4 | 1/2 | 1 | 5/16 - 24 | 31/64 | 21/32 | 1/2 | .6255/.6275 | 7/8 |
| 60937 |
|
Inch | Double Arms - Long | 10 3/4 | 3/4 | 1 3/8 | 3/8 - 24 | 43/64 | 13/16 | 5/8 | .8755/.8775 | 1 13/64 |
| 60938 |
|
Inch | Double Arms - Long | 11 | 1 1/4 | 1 7/8 | 5/8 - 18 | 7/8 | 1 1/4 | 3/4 | 1.2505/1.2525 | 1 45/64 |
