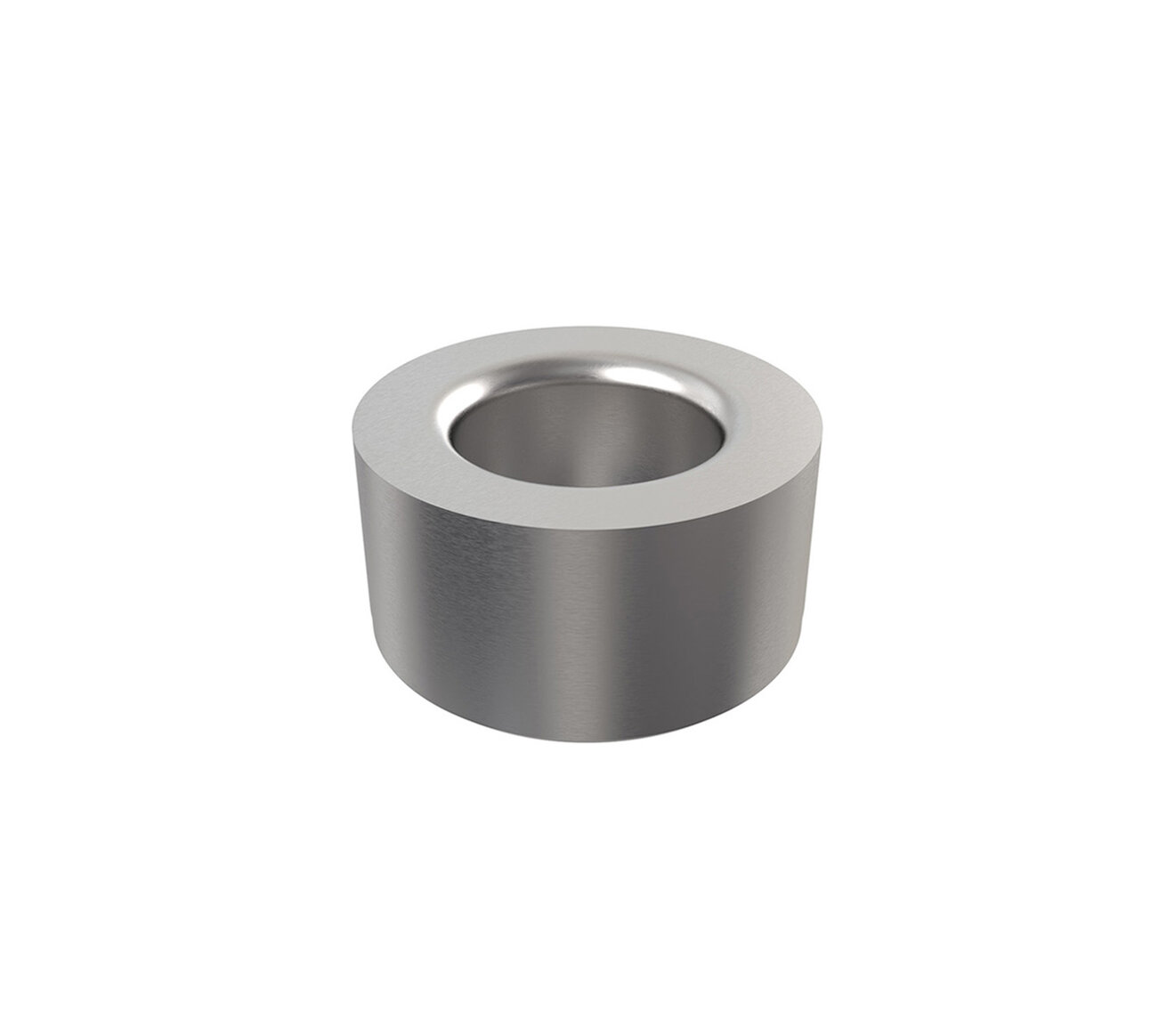

Stainless Steel Ball Lock® Liners
Locating repeatability will determine if (1) primary and (1) secondary or (2) primary liners are needed. With (2) primary liners, repeatability of ±0.0005" (±0.003mm) can be maintained if the (2) holes for receiver bushings are held to a centerline distance of ±0.0002" (±0.005mm) tolerance.
Features, Benefits, & Product Specifications:
-
Material: 17-4 PH Stainless Steel
-
Heat Treat: 40-45 RC
On Installation of Press Fit Liners & Back Mount Style Receiver Bushings:
To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm).
Stainless Steel Ball Lock® Liners
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Liner Type | Fixture Plate Thickness (In) | Shank Diameter (mm) | Liner Outside Diameter +0.0000/-0.0004 (In) |
|---|---|---|---|---|---|---|
| 49701SS |
|
Inch | Primary | 0.75 | 20 | 1.3772 |
| 49702SS |
|
Inch | Primary | 1.00 | 20 | 1.3772 |
| 49705SS |
|
Inch | Primary | 0.50 | 13 | 0.7518 |
| 49706SS |
|
Inch | Primary | 0.75 | 13 | 0.7518 |
| 49707SS |
|
Inch | Primary | 0.50 | 16 | 1.0018 |
| 49708SS |
|
Inch | Primary | 0.75 | 16 | 1.0018 |
| 49711SS |
|
Inch | Primary | 0.75 | 25 | 1.3772 |
| 49712SS |
|
Inch | Primary | 1.00 | 25 | 1.3772 |
| 49721SS |
|
Inch | Primary | 0.75 | 30 | 1.7523 |
| 49722SS |
|
Inch | Primary | 1.00 | 30 | 1.7523 |
| 49731SS |
|
Inch | Primary | 0.75 | 35 | 1.7523 |
| 49732SS |
|
Inch | Primary | 1.00 | 35 | 1.7523 |
| 49733SS |
|
Inch | Primary | 1.50 | 35 | 1.7523 |
| 49734SS |
|
Inch | Primary | 2.00 | 35 | 1.7523 |
| 49741SS |
|
Inch | Primary | 0.75 | 50 | 2.5025 |
| 49742SS |
|
Inch | Primary | 1.00 | 50 | 2.5025 |
| 49743SS |
|
Inch | Primary | 1.50 | 50 | 2.5025 |
| 49744SS |
|
Inch | Primary | 2.00 | 50 | 2.5025 |
| 49801SS |
|
Inch | Secondary | 0.75 | 20 | 1.3772 |
| 49802SS |
|
Inch | Secondary | 1.00 | 20 | 1.3772 |
| 49805SS |
|
Inch | Secondary | 0.50 | 13 | 0.7518 |
| 49806SS |
|
Inch | Secondary | 0.75 | 13 | 0.7518 |
| 49808SS |
|
Inch | Secondary | 0.75 | 16 | 1.0018 |
| 49811SS |
|
Inch | Secondary | 0.75 | 25 | 1.3772 |
| 49812SS |
|
Inch | Secondary | 1.00 | 25 | 1.3772 |
| 49821SS |
|
Inch | Secondary | 0.75 | 30 | 1.7523 |
| 49822SS |
|
Inch | Secondary | 1.00 | 30 | 1.7523 |
| 49831SS |
|
Inch | Secondary | 0.75 | 35 | 1.7523 |
| 49832SS |
|
Inch | Secondary | 1.00 | 35 | 1.7523 |
| 49833SS |
|
Inch | Secondary | 1.50 | 35 | 1.7523 |
| 49834SS |
|
Inch | Secondary | 2.00 | 35 | 1.7523 |
| 49841SS |
|
Inch | Secondary | 0.75 | 50 | 2.5025 |
| 49842SS |
|
Inch | Secondary | 1.00 | 50 | 2.5025 |
| 49843SS |
|
Inch | Secondary | 1.50 | 50 | 2.5025 |
| 49844SS |
|
Inch | Secondary | 2.00 | 50 | 2.5025 |
| Part Number | CAD | Unit | Type | Fixture Plate Thickness (mm) | Shank Diameter (mm) | Liner Outside Diameter +0.00/-0.01 (mm) | Liner Inside Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 49751SS |
|
Metric | Primary | 20 | 20 | 35.042 | 20.01 |
| 49752SS |
|
Metric | Primary | 25 | 20 | 35.042 | 20.01 |
| 49755SS |
|
Metric | Primary | 13 | 13 | 19.040 | 13.01 |
| 49756SS |
|
Metric | Primary | 20 | 13 | 19.040 | 13.01 |
| 49757SS |
|
Metric | Primary | 20 | 16 | 25.042 | 16.01 |
| 49758SS |
|
Metric | Primary | 25 | 16 | 25.042 | 16.01 |
| 49761SS |
|
Metric | Primary | 20 | 25 | 35.042 | 25.01 |
| 49762SS |
|
Metric | Primary | 25 | 25 | 35.042 | 25.01 |
| 49771SS |
|
Metric | Primary | 20 | 30 | 45.042 | 30.01 |
| 49772SS |
|
Metric | Primary | 25 | 30 | 45.042 | 30.01 |
| 49781SS |
|
Metric | Primary | 20 | 35 | 45.042 | 35.01 |
| 49782SS |
|
Metric | Primary | 25 | 35 | 45.042 | 35.01 |
| 49783SS |
|
Metric | Primary | 40 | 35 | 45.042 | 35.01 |
| 49784SS |
|
Metric | Primary | 50 | 35 | 45.042 | 35.01 |
| 49791SS |
|
Metric | Primary | 20 | 50 | 63.546 | 50.01 |
| 49792SS |
|
Metric | Primary | 25 | 50 | 63.546 | 50.01 |
| 49793SS |
|
Metric | Primary | 40 | 50 | 63.546 | 50.01 |
| 49794SS |
|
Metric | Primary | 50 | 50 | 63.546 | 50.01 |
| 49851SS |
|
Metric | Secondary | 20 | 20 | 35.042 | 20.04 |
| 49852SS |
|
Metric | Secondary | 25 | 20 | 35.042 | 20.04 |
| 49855SS |
|
Metric | Secondary | 13 | 13 | 19.040 | 13.04 |
| 49856SS |
|
Metric | Secondary | 20 | 13 | 19.040 | 13.04 |
| 49858SS |
|
Metric | Secondary | 25 | 16 | 25.042 | 16.04 |
| 49861SS |
|
Metric | Secondary | 20 | 25 | 35.042 | 25.04 |
| 49862SS |
|
Metric | Secondary | 25 | 25 | 35.042 | 25.04 |
| 49881SS |
|
Metric | Secondary | 20 | 35 | 45.042 | 35.04 |
| 49882SS |
|
Metric | Secondary | 25 | 35 | 45.042 | 35.04 |
| 49883SS |
|
Metric | Secondary | 40 | 35 | 45.042 | 35.04 |
| 49884SS |
|
Metric | Secondary | 50 | 35 | 45.042 | 35.04 |
| 49891SS |
|
Metric | Secondary | 20 | 50 | 63.546 | 50.04 |
| 49892SS |
|
Metric | Secondary | 25 | 50 | 63.546 | 50.04 |
| 49893SS |
|
Metric | Secondary | 40 | 50 | 63.546 | 50.04 |
| 49894SS |
|
Metric | Secondary | 50 | 50 | 63.546 | 50.04 |
