Shortie Spring Plungers - Short Travel
Jergens Shortie Spring Plungers are made to the same quality standards as the Solid Drive plungers. Our Shortie Spring Plungers are made with full standard spring plunger stroke in a short body. Also, a screwdriver slot is substituted for the hex drive due to its smaller size.
Features & Benefits:
-
Single-unit construction for better reliability
-
No set screw to separate from the plunger body
-
No need for “easy-out” tools
-
Close tolerance between tip and body
-
Conforms to TCMA dimensional standards
-
Patch-style locking element
-
Slot in the rear for insertion
-
Special materials and sizes available upon requests
Material Specifications:
-
Body Material: 303 Stainless Steel
-
Spring Material: 303 Stainless Steel
-
Tip Material: Stainless Steel or Delrin
-
Thread: 2A-UNC
Note(s):
UNF Thread for Part No.'s 27603, 27623, 27604, & 27624
Shortie Spring Plungers - Short Travel
Select a part number for CAD drawings, price and stock availability.

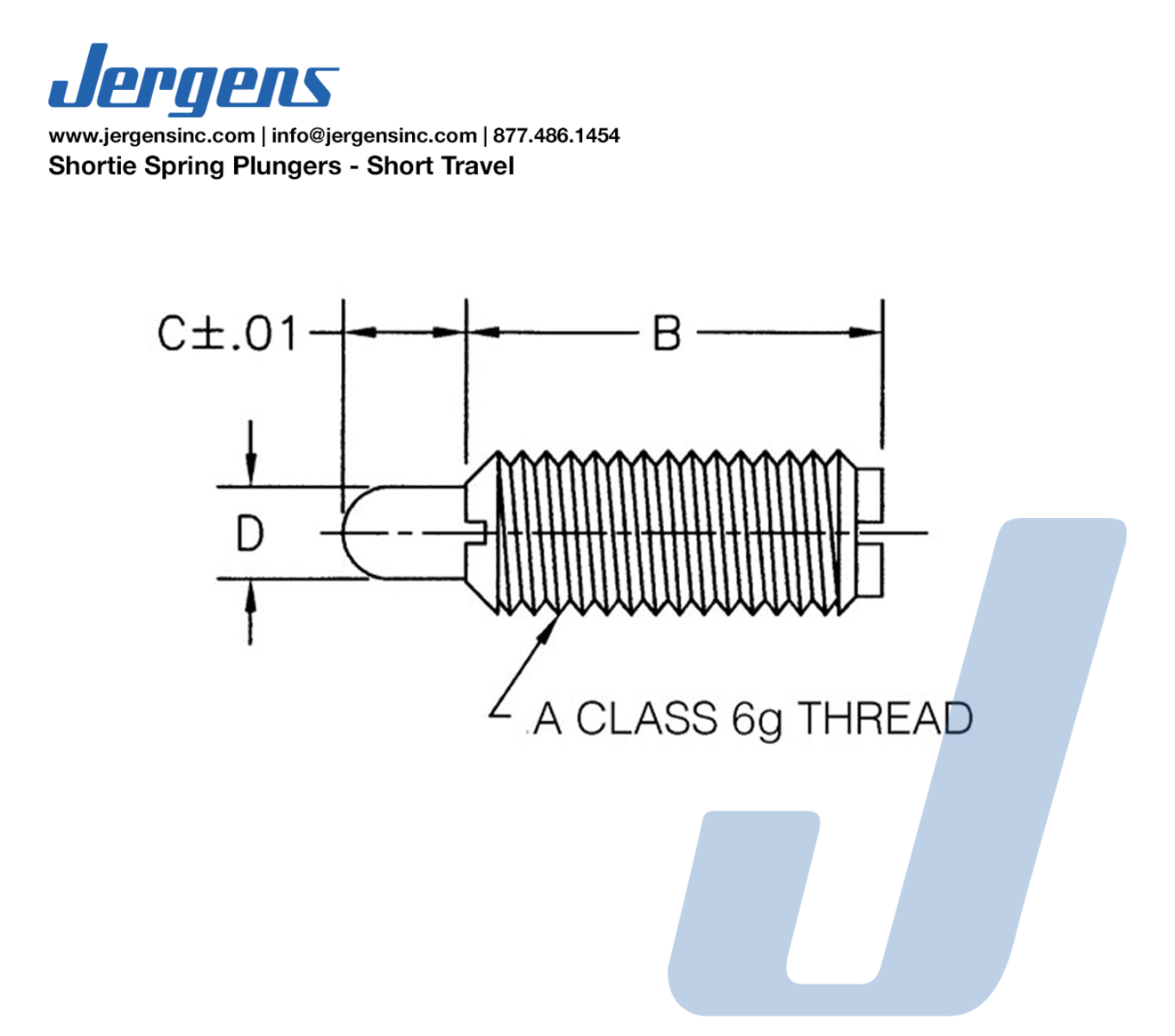

| Part Number | CAD | Unit | Tip Material | Thread Size A | Initial Force (lbs) | Final Force (lbs) | B (In) | C (In) | D (In) | Locking Element |
|---|---|---|---|---|---|---|---|---|---|---|
| 27601 |
|
Inch | Stainless Steel | 8-32 | 0.50 | 1.50 | 7/16 | 0.052 | 0.070 | Yes |
| 27602 |
|
Inch | Stainless Steel | 8-32 | 1.50 | 4.75 | 7/16 | 0.052 | 0.070 | Yes |
| 27603 |
|
Inch | Stainless Steel | 8-36 (UNF) | 0.50 | 1.50 | 7/16 | 0.052 | 0.070 | Yes |
| 27604 |
|
Inch | Stainless Steel | 8-36 (UNF) | 1.50 | 4.75 | 7/16 | 0.052 | 0.070 | Yes |
| 27605 |
|
Inch | Stainless Steel | 10-32 | 0.75 | 2.50 | 15/32 | 0.065 | 0.093 | Yes |
| 27606 |
|
Inch | Stainless Steel | 10-32 | 1.75 | 6.25 | 15/32 | 0.065 | 0.093 | Yes |
| 27607 |
|
Inch | Stainless Steel | 1/4-20 | 1.00 | 3.50 | 17/32 | 0.078 | 0.119 | Yes |
| 27608 |
|
Inch | Stainless Steel | 1/4-20 | 3.00 | 10.5 | 17/32 | 0.078 | 0.119 | Yes |
| 27609 |
|
Inch | Stainless Steel | 5/16-18 | 1.00 | 4.00 | 9/16 | 0.084 | 0.135 | Yes |
| 27610 |
|
Inch | Stainless Steel | 5/16-18 | 3.75 | 15.5 | 9/16 | 0.084 | 0.135 | Yes |
| 27611 |
|
Inch | Stainless Steel | 3/8-16 | 1.50 | 5.00 | 5/8 | 0.110 | 0.186 | Yes |
| 27612 |
|
Inch | Stainless Steel | 3/8-16 | 4.50 | 18.5 | 5/8 | 0.110 | 0.186 | Yes |
| 27613 |
|
Inch | Stainless Steel | 1/2-13 | 1.75 | 5.50 | 3/4 | 0.151 | 0.248 | Yes |
| 27614 |
|
Inch | Stainless Steel | 1/2-13 | 5.00 | 28.0 | 3/4 | 0.151 | 0.248 | Yes |
| 27621 | Inch | Delrin | 8-32 | 0.50 | 1.50 | 7/16 | 0.052 | 0.070 | Yes | |
| 27622 | Inch | Delrin | 8-32 | 1.50 | 4.75 | 7/16 | 0.052 | 0.070 | Yes | |
| 27623 | Inch | Delrin | 8-36 (UNF) | 0.50 | 1.50 | 7/16 | 0.052 | 0.070 | Yes | |
| 27625 | Inch | Delrin | 10-32 | 0.75 | 2.50 | 15/32 | 0.065 | 0.093 | Yes | |
| 27626 | Inch | Delrin | 10-32 | 1.75 | 6.25 | 15/32 | 0.065 | 0.093 | Yes | |
| 27627 | Inch | Delrin | 1/4-20 | 1.00 | 3.50 | 17/32 | 0.078 | 0.119 | Yes | |
| 27628 | Inch | Delrin | 1/4-20 | 3.00 | 10.5 | 17/32 | 0.078 | 0.119 | Yes | |
| 27629 | Inch | Delrin | 5/16-18 | 1.00 | 4.00 | 9/16 | 0.084 | 0.135 | Yes | |
| 27630 | Inch | Delrin | 5/16-18 | 3.75 | 15.5 | 9/16 | 0.084 | 0.135 | Yes | |
| 27631 | Inch | Delrin | 3/8-16 | 1.50 | 5.00 | 5/8 | 0.110 | 0.186 | Yes | |
| 27633 | Inch | Delrin | 1/2-13 | 1.75 | 5.50 | 3/4 | 0.151 | 0.248 | Yes | |
| 27634 | Inch | Delrin | 1/2-13 | 5.00 | 28.0 | 3/4 | 0.151 | 0.248 | Yes |
