Rod Ends
Jergens Rod Ends are forged and finished for applications not requiring flat contact with the head. All holes are reamed. Rod Ends can be used with spherical flange assemblies, flange nuts, and clamp assemblies.
Features, Benefits, & Product Specifications:
-
Materials: Available in Alloy Steel or 303 Stainless Steel
-
Finish: Black Oxide (for Alloy Steel Rod Ends)
-
Heat Treat: 32-36 RC (for Alloy Steels Rod Ends)
-
Thread: Class 2A-UNC
Note(s):
- Part No.'s 35301, 35318, 35319, 35303, 35306, 35307, 35312, 35314, 35315, & 35321 have 150,000 PSI Tensile Strength.
- Rod Ends are not to be used for lifting.
Documents
Rod Ends
Select a part number for CAD drawings, price and stock availability.

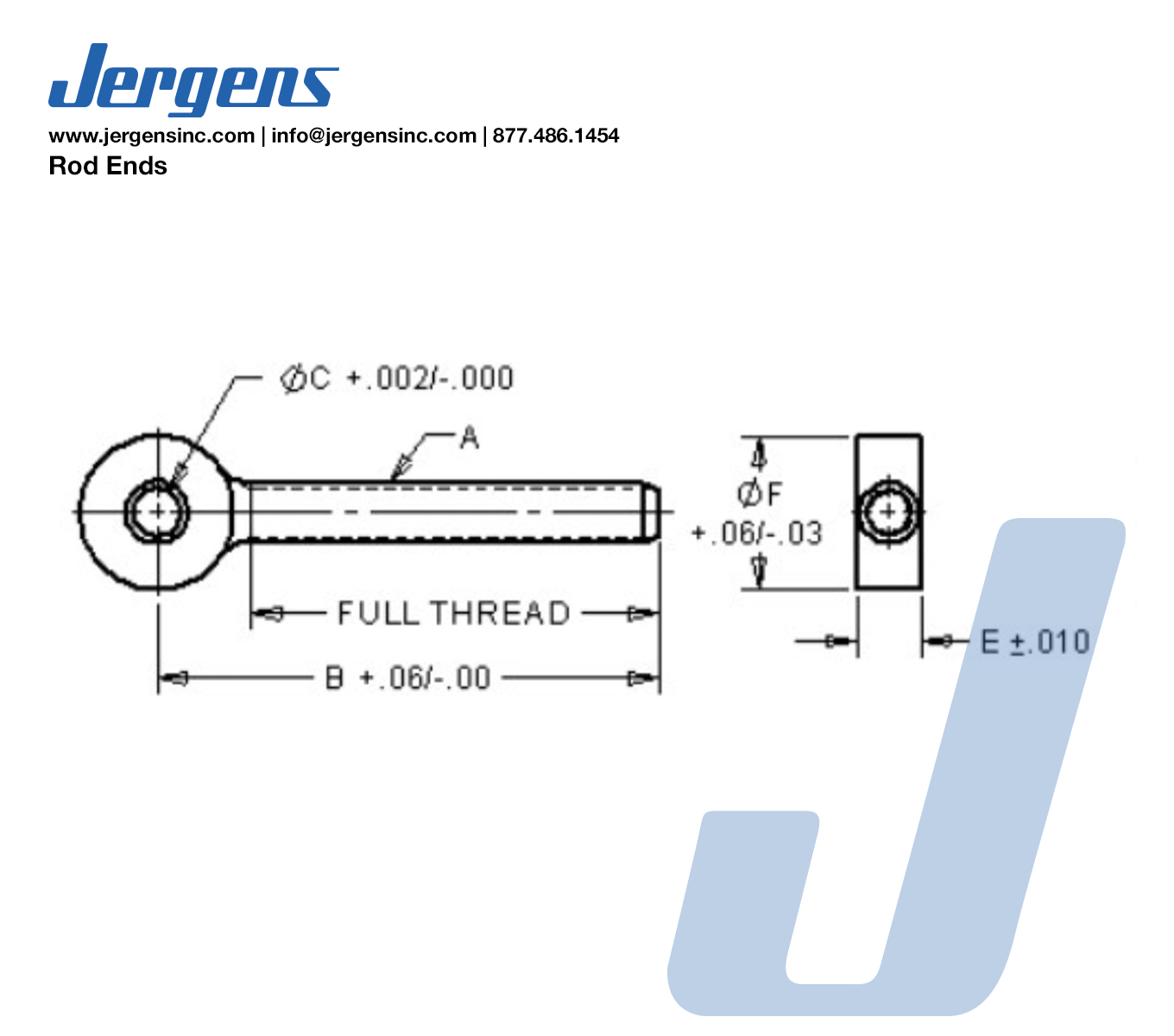

| Part Number | CAD | Unit | Material | Thread Size A | B (In) | C (In) | D (In) | E (In) | F (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35301 |
|
Inch | Steel | 1/4-20 | 2 | 3/16 | - | 1/4 | 39/64 | 0.04 |
| 35302 |
|
Inch | Steel | 1/4-20 | 2 | 1/4 | - | 1/4 | 39/64 | 0.03 |
| 35303 |
|
Inch | Steel | 3/8-16 | 3 | 5/16 | - | 3/8 | 13/16 | 0.11 |
| 35304 |
|
Inch | Steel | 3/8-16 | 2 3/16 | 3/8 | - | 3/8 | 13/16 | 0.08 |
| 35305 |
|
Inch | Steel | 3/8-16 | 3 | 3/8 | - | 3/8 | 13/16 | 0.11 |
| 35306 |
|
Inch | Steel | 3/8-16 | 5 | 3/8 | - | 3/8 | 13/16 | 0.12 |
| 35307 |
|
Inch | Steel | 1/2-13 | 3 3/4 | 3/8 | - | 1/2 | 1 1/32 | 0.25 |
| 35308 |
|
Inch | Steel | 1/2-13 | 2 11/16 | 1/2 | - | 1/2 | 1 1/32 | 0.19 |
| 35309 |
|
Inch | Steel | 1/2-13 | 3 3/4 | 1/2 | - | 1/2 | 1 1/32 | 0.24 |
| 35310 |
|
Inch | Steel | 1/2-13 | 5 | 1/2 | - | 1/2 | 1 1/32 | 0.31 |
| 35311 |
|
Inch | Steel | 5/8-11 | 3 11/16 | 5/8 | - | 5/8 | 1 5/16 | 0.40 |
| 35312 |
|
Inch | Steel | 5/8-11 | 4 1/2 | 5/8 | - | 5/8 | 1 5/16 | 0.46 |
| 35314 |
|
Inch | Steel | 5/8-11 | 6 | 5/8 | - | 5/8 | 1 5/16 | 0.60 |
| 35315 |
|
Inch | Steel | 3/4-10 | 4 1/2 | 3/4 | - | 3/4 | 1 9/16 | 0.73 |
| 35317 |
|
Inch | Steel | 1-8 | 8 | 1 | - | 1 | 2 3/32 | 2.25 |
| 35318 |
|
Inch | Steel | 5/16-18 | 3 | 1/4 | - | 5/16 | 43/64 | 0.08 |
| 35319 |
|
Inch | Steel | 5/16-18 | 3 | 5/16 | - | 5/16 | 43/64 | 0.08 |
| 35320 |
|
Inch | Steel | 3/8-16 | 4 | 5/16 | - | 3/8 | 13/16 | 0.11 |
| 35321 |
|
Inch | Steel | 3/4-10 | 6 | 3/4 | - | 3/4 | 1 9/16 | 1.00 |
| 35701 |
|
|||||||||
| 35702 |
|
|||||||||
| 35703 |
|
|||||||||
| 35721 |
|
Inch | Stainless Steel | 1/4-20 | 2 1/8 | 3/16 | 7/8 | 1/4 | 1/2 | 0.04 |
| 35722 |
|
Inch | Stainless Steel | 1/4-20 | 2 1/8 | 1/4 | 7/8 | 1/4 | 1/2 | 0.08 |
| 35723 |
|
Inch | Stainless Steel | 1/4-20 | 2 1/8 | 3/16 | 7/8 | 1/4 | 1/2 | 0.08 |
| 35724 |
|
Inch | Stainless Steel | 5/16-18 | 3 1/2 | 5/16 | 1 1/2 | 5/16 | 5/8 | 0.08 |
| 35725 |
|
Inch | Stainless Steel | 3/8-16 | 3 1/2 | 3/8 | 1 1/2 | 3/8 | 3/4 | 0.12 |
| 35726 |
|
Inch | Stainless Steel | 3/8-16 | 5 | 3/8 | 2 1/2 | 3/8 | 3/4 | 0.16 |
| 35727 |
|
Inch | Stainless Steel | 1/2-13 | 3 3/4 | 1/2 | 1 1/2 | 1/2 | 1 | 0.24 |
| 35728 |
|
Inch | Stainless Steel | 1/2-13 | 5 | 1/2 | 2 | 1/2 | 1 | 0.31 |
| 35729 |
|
Inch | Stainless Steel | 5/8-11 | 4 1/2 | 5/8 | 3 | 5/8 | 1 1/4 | 0.43 |
| 35730 |
|
Inch | Stainless Steel | 5/8-11 | 6 | 5/8 | 3 | 5/8 | 1 1/4 | 0.70 |
| 35731 |
|
Inch | Stainless Steel | 3/4-10 | 4 1/2 | 3/4 | 2 | 3/4 | 1 1/2 | 0.68 |
| 35732 |
|
Inch | Stainless Steel | 3/4-10 | 6 | 3/4 | 2 1/2 | 3/4 | 1 1/2 | 0.82 |
| Part Number | CAD | Unit | Material | Thread Size A | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35303 |
|
|||||||||
| 35304 |
|
|||||||||
| 35305 |
|
|||||||||
| 35306 |
|
|||||||||
| 35307 |
|
|||||||||
| 35308 |
|
|||||||||
| 35309 |
|
|||||||||
| 35310 |
|
|||||||||
| 35311 |
|
|||||||||
| 35312 |
|
|||||||||
| 35314 |
|
|||||||||
| 35315 |
|
|||||||||
| 35317 |
|
|||||||||
| 35318 |
|
|||||||||
| 35721 |
|
|||||||||
| 35722 |
|
|||||||||
| 35723 |
|
|||||||||
| 35724 |
|
|||||||||
| 35725 |
|
|||||||||
| 35726 |
|
|||||||||
| 35727 |
|
|||||||||
| 35728 |
|
|||||||||
| 35729 |
|
|||||||||
| 35730 |
|
|||||||||
| 35731 |
|
|||||||||
| 35732 |
|
| Part Number | CAD | Unit | Type | Material | Diameter A (In) | B (In) | E (In) | F (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 35701 |
|
Inch | Blank Forging | Stainless Steel | 1/4 | 2 | 1/4 | 1/2 | 0.04 |
| 35702 |
|
Inch | Blank Forging | Stainless Steel | 3/8 | 5 | 3/8 | 3/4 | 0.13 |
| 35703 |
|
Inch | Blank Forging | Stainless Steel | 1/2 | 6 | 1/2 | 1 | 0.44 |
