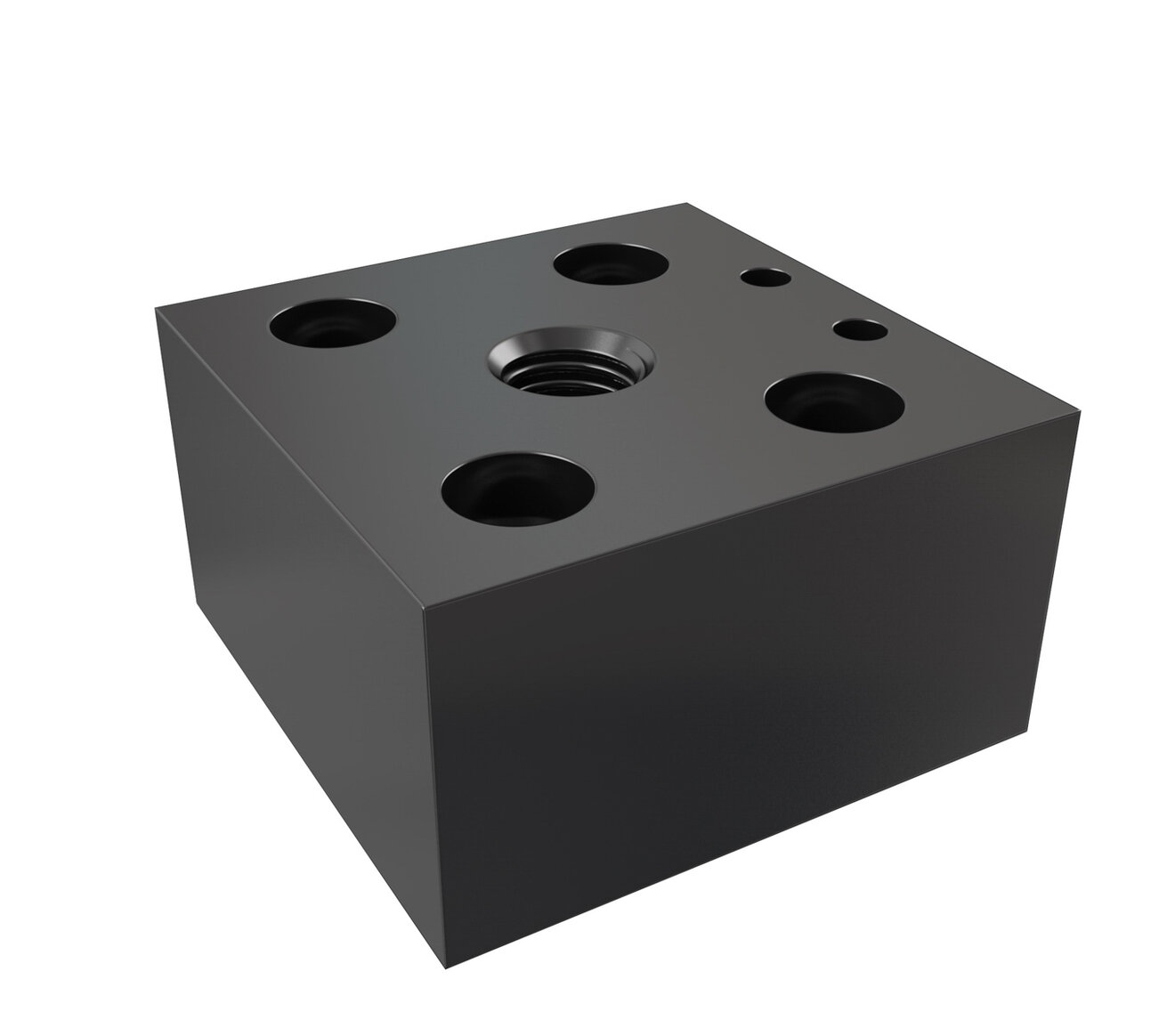

Revolving Clamp Bases
Jergens Revolving Clamp Bases are for use with our Short Bushing Revolving Clamp Assemblies (see Related Products below).
Features, Benefits, & Product Specifications:
-
Stop pin supplied with each Revolving Clamp Base
Revolving Clamp Bases

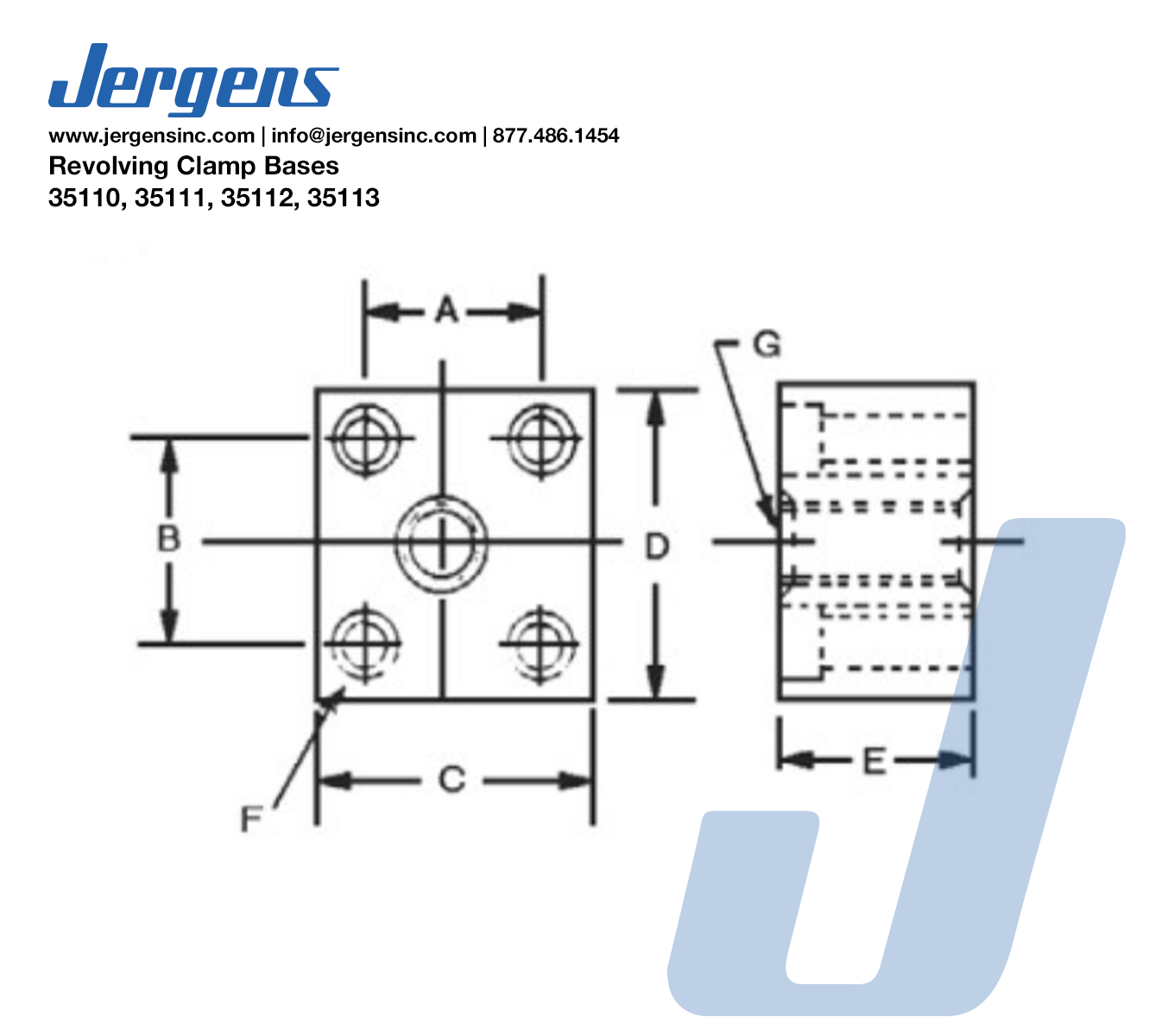

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | Bolt Size F | Mfg. Bolt Size G | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35110 |
|
Inch | 7/8 | 1 | 1 7/16 | 1 1/2 | 1 | #10 | 3/8-16 | 0.6 |
| 35111 |
|
Inch | 1 1/4 | 1 1/2 | 2 1/4 | 2 1/4 | 1 1/4 | 3/8 | 5/8-11 | 1.7 |
| 35112 |
|
Inch | 1 1/8 | 1 3/8 | 2 1/4 | 2 1/4 | 1 1/4 | 1/4 | 1/2-13 | 1.2 |
| 35113 |
|
Inch | 3/4 | 1 | 1 7/16 | 1 1/2 | 1 | #10 | 5/16-18 | 0.5 |
