Plastic Revolving Handles with Steel Through Shank by ELESA®
Jergens Plastic Revolving Handles with Steel Through Shank by ELESA® allow the rotation of the knob on its axis. They are ideal for use on rods or actuating levers to facilitate adequate gripping.
Features, Benefits, & Product Specifications:
-
Handle Material: Phenolic-Based (PF) Duroplast
-
Handle Finish & Color: Glossy, Black
- Shank: Matte Chrome-Plated Steel, cylindrical head with hexagon socket
-
Resistant to solvents, oils, greases, and other chemical agents
Plastic Revolving Handles with Steel Through Shank by ELESA®
Select a part number for CAD drawings, price and stock availability.

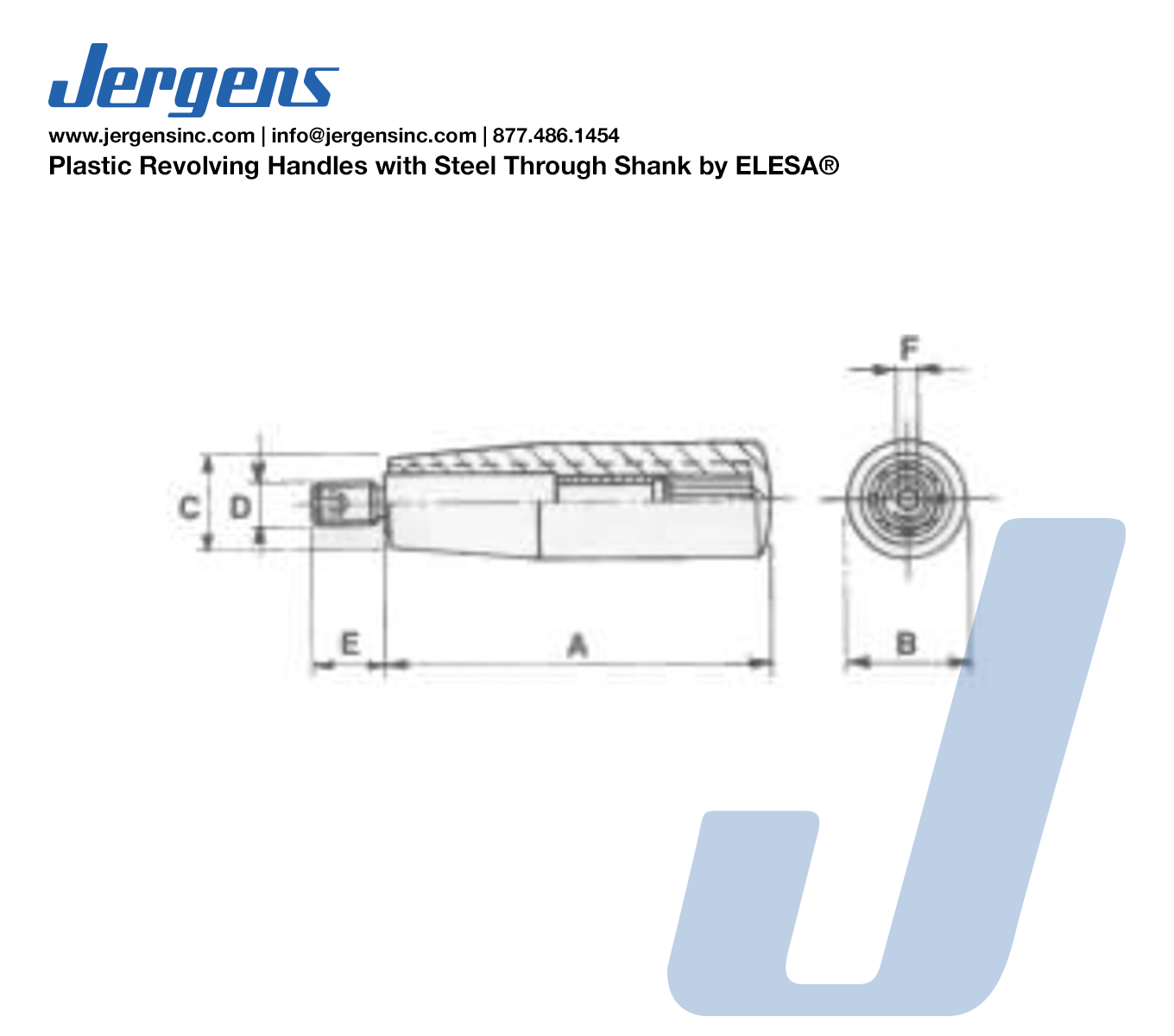

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D | E (In) | F (In) |
|---|---|---|---|---|---|---|---|---|
| 33601 |
|
Inch | 1.57 | 0.71 | 0.59 | 1/4-20 | 0.51 | 5/32 |
| 33602 |
|
Inch | 1.97 | 0.83 | 0.67 | 5/16-18 | 0.59 | 3/16 |
| 33604 |
|
Inch | 2.56 | 0.91 | 0.75 | 5/16-18 | 0.67 | 1/4 |
| 33605 |
|
Inch | 3.15 | 1.02 | 0.83 | 3/8-16 | 0.71 | 1/4 |
| 33606 |
|
Inch | 3.54 | 1.10 | 0.87 | 3/8-16 | 0.71 | 5/16 |
