Plastic Revolving Handles with Steel Shank by ELESA®
Jergens Plastic Revolving Handles with Steel Shank by ELESA® allow the rotation of the knob on its axis. They are ideal for use on rods or actuating levers to facilitate adequate gripping.
Features, Benefits, & Product Specifications:
-
Material: High-Resilience Polypropylene-Based (PP) Technopolymer
-
Finish & Color: Matte, Black
-
Shank: Zinc-Plated Steel, hexagon socket at threaded end
-
Resistant to solvents, oils, greases, and other chemical agents
Note(s):
"D" dimension is in millimeters.
Plastic Revolving Handles with Steel Shank by ELESA®
Select a part number for CAD drawings, price and stock availability.

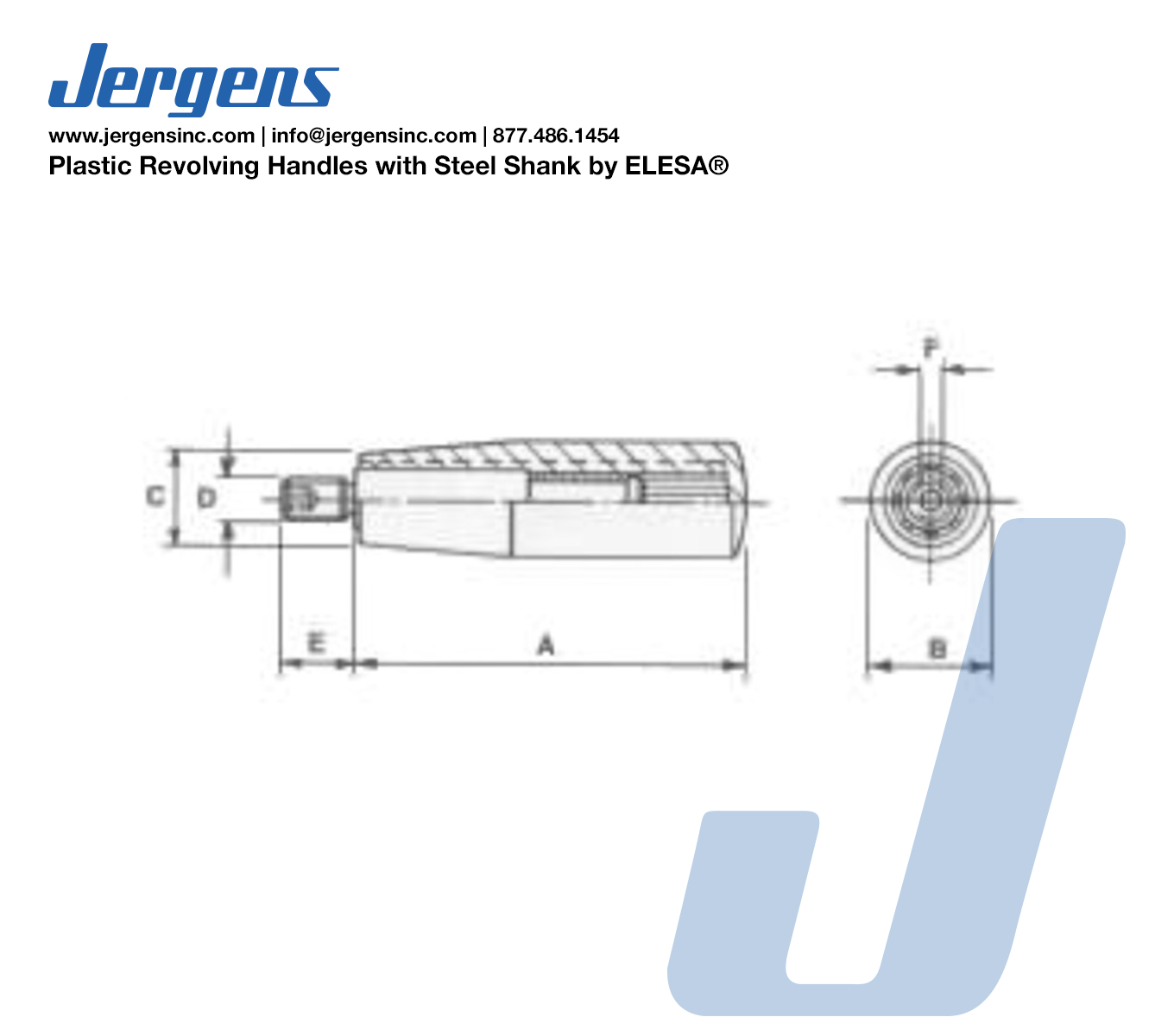

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D | E (In) | F (In) |
|---|---|---|---|---|---|---|---|---|
| 33611 |
|
Inch | 1.57 | 0.71 | 0.59 | M6 | 0.51 | 0.12 |
| 33612 |
|
Inch | 1.97 | 0.83 | 0.67 | M6 | 0.51 | 0.12 |
| 33613 |
|
Inch | 2.20 | 0.87 | 0.71 | M6 | 0.51 | 0.12 |
| 33614 |
|
Inch | 2.56 | 0.91 | 0.75 | M8 | 0.59 | 0.16 |
| 33615 |
|
Inch | 3.15 | 1.02 | 0.83 | M8 | 0.59 | 0.16 |
| 33616 |
|
Inch | 3.54 | 1.10 | 0.87 | M10 | 0.67 | 0.2 |
