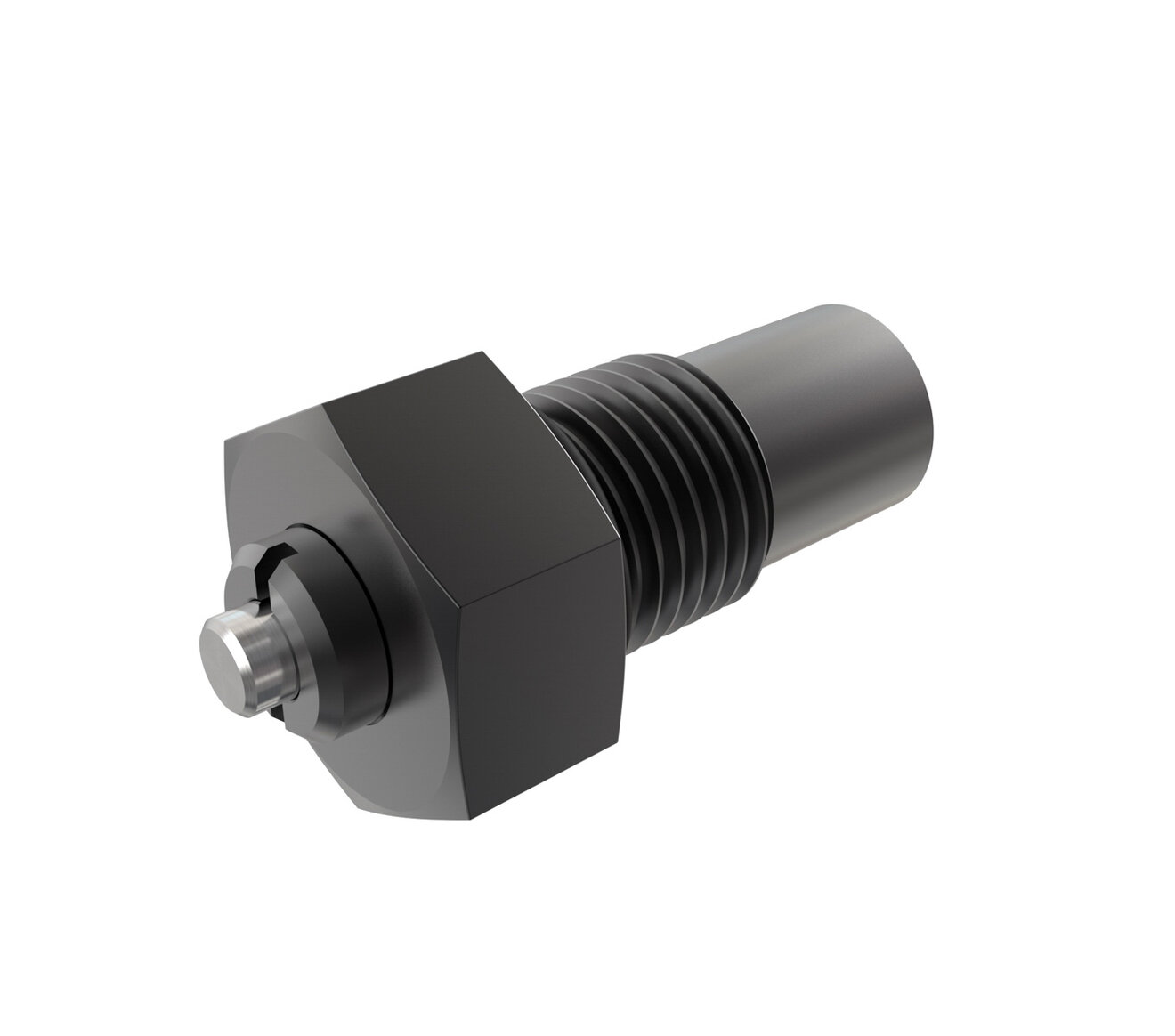

Manifold Mount Cylinders
Features, Benefits, & Product Specifications:
-
Provides for clean installation
-
Eliminates exposed fittings & plumbing
-
Well suited for use in custom design fixtures
Manifold Mount Cylinders
Select a part number for CAD drawings, price and stock availability.

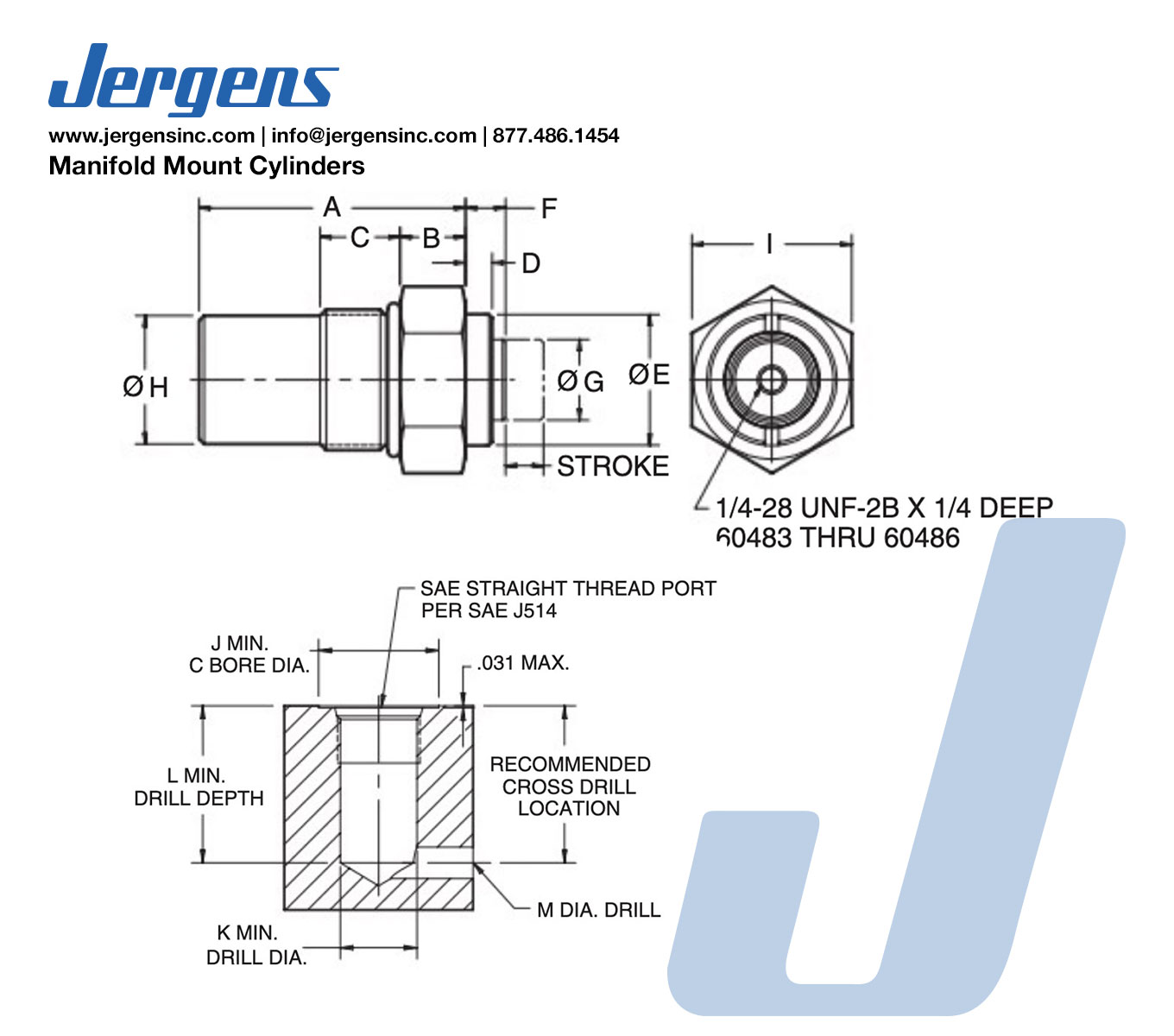

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E Diameter (In) | F (In) | G Diameter (In) | H Diameter (In) | I Hex | J (In) | K (In) | L (In) | M (In) | Body Thread | Stroke (In) | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | SAE No. | Thread Size | Thread Depth | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60481 |
|
Inch | 1 13/32 | 0.375 | 1/2 | 1/8 | 3/8 | 1/4 | 3/16 | 0.48 | 3/4 | 0.970 | 1/2 | 1.09 | 1/4 | 9/16-18 UNF | 3/16 | 3/16 | 0.017 | 0.093 | 200 | 5000 | 465 | 6 | 9/16-18 UNF | 1/2 | 62143 | 0.5 |
| 60482 |
|
Inch | 1 23/32 | 0.375 | 9/16 | 1/8 | 41/64 | 3/8 | 1/4 | 0.66 | 7/8 | 1.19 | 11/16 | 1.41 | 5/16 | 3/4-16 UNF-2A | 1/2 | 1/2 | 0.098 | 0.196 | 200 | 5000 | 980 | 8 | 3/4-16 UNF-2A | 9/16 | 62150 | 0.7 |
| 60483 |
|
Inch | 2 1/2 | 0.615 | 3/4 | 1/4 | 1 7/32 | 5/16 | 3/4 | 1.19 | 1 1/2 | 1.91 | 1 7/32 | 2.00 | 1/2 | 1 5/16-12 UN-2A | 1/2 | 1/2 | 0.393 | 0.785 | 200 psi | 5000 psi | 3925 | 16 | 1 5/16-12 UN-2A | 3/4 | 62151 | 1 |
| 60484 |
|
Inch | 3 | 0.615 | 3/4 | 1/4 | 1 7/32 | 5/16 | 3/4 | 1.19 | 1 1/2 | 1.91 | 1 7/32 | 2.50 | 1/2 | 1 5/16-12 UN-2A | 1 | 1 | 0.785 | 0.785 | 200 | 5000 | 3925 | 15 | 1 5/16-12 UN-2A | 3/4 | 62152 | 1.5 |
| 60485 |
|
Inch | 2 1/2 | 0.615 | 3/4 | 1/4 | 1 47/64 | 5/16 | 1 1/4 | 1.75 | 2 1/8 | 2.56 | 1 13/16 | 2.00 | 9/16 | 1 7/8-12 UN-2A | 1/2 | 1/2 | 0.884 | 1.767 | 200 | 5000 | 8835 | 24 | 1 7/8-12 UN-2A | 3/4 | 2 1/2 | 2 |
| 60486 |
|
Inch | 3 | 0.615 | 3/4 | 1/4 | 1 47/64 | 5/16 | 1 1/4 | 1.75 | 2 1/8 | 2.56 | 1 13/16 | 2.50 | 9/16 | 1 7/8-12 UN-2A | 1 | 1 | 1.767 | 1.767 | 200 | 5000 | 8835 | 24 | 1 7/8-12 UN-2A | 3/4 | 62154 | 2.5 |
