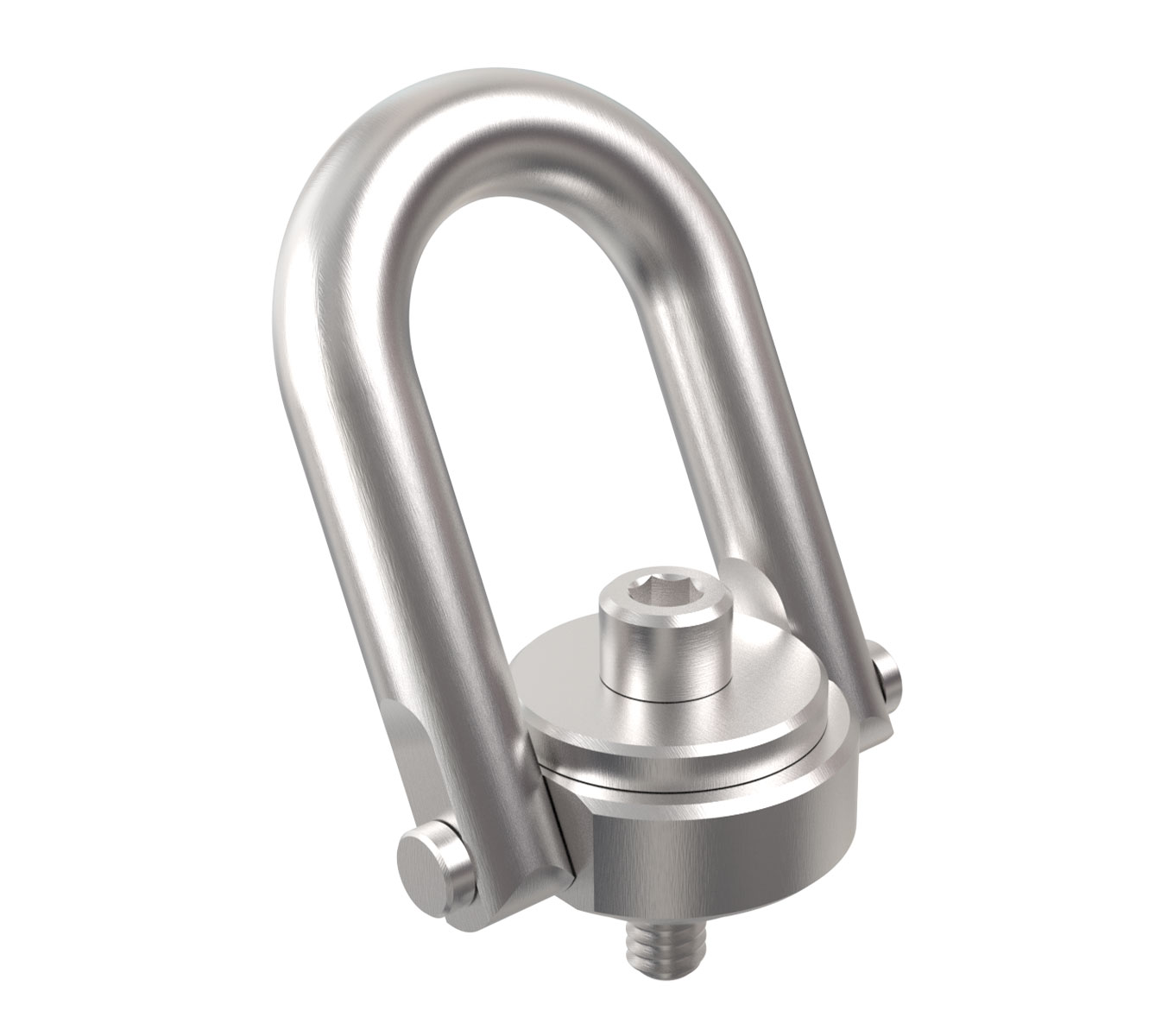

Envirolox™ Center-Pull Hoist Rings with Standard U-Bar

Jergens Envirolox™ Protective Finish is a proprietary nickel-based coating that helps to prevent rusting and other environmental hazards from affecting Jergens Hoist Rings. This coating does not contain cadmium or chromium, is environmentally friendly, and is proven to be effective in extreme conditions. It provides surface hardness, lubricity, and more effective corrosion protection than paints.
Features, Benefits, & Product Specifications:
  • Material: Alloy Steel
  • Finish: Envirolox™ Protective Coating
  • Full 360° swivel and 180° pivot action
  • Proof tested to 200% of its rated load capacity
  • Rated at a 5:1 strength factor
  • Made in the U.S.A.
  • CE Certified
  • U-bar, bolt, pins, base, washer, and bushing are Magnetic Particle Inspected
  • Certificate of Proof Test provided
  • Conforms to ASME B30.26 and MIL-STD-209K
Note(s):
  • Inch Load Capacity: Stated load capacity based on recommended thread torques as shown in the table.
  • Torque: It is recommended that these torques be used when installing hoist rings.
  • All Inch Part No.'s: Available from stock as Standard Clevis.
  • Rated load may be reduced at 90° from vertical for:
    • Inch Part No.'s 23310, 23314, 23315, 23316, 23320, & 23321
    • Metric Part No.'s 23365, 23368, 23371, 23374, & 23383

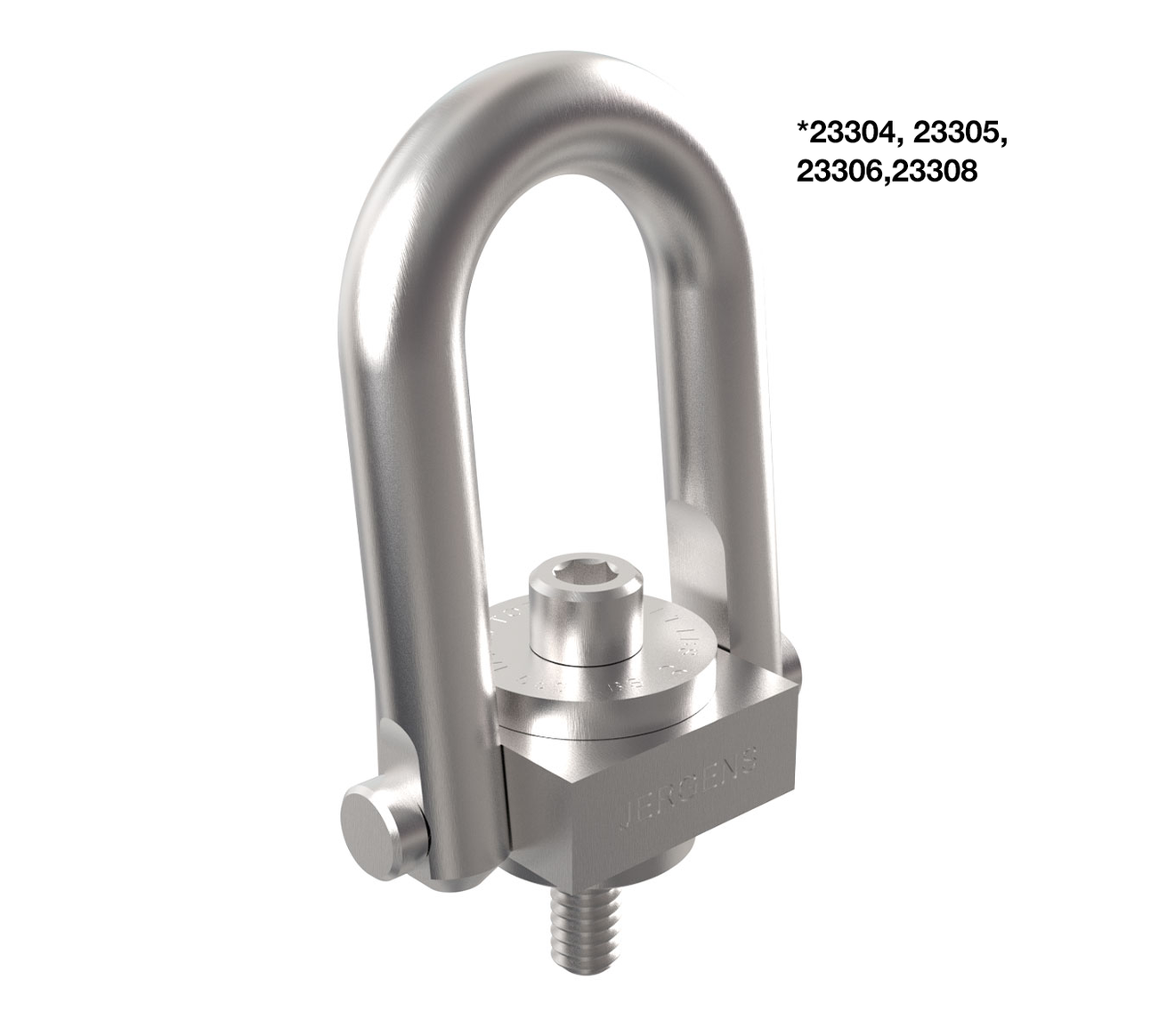

  • Square base for:
    • Inch Part No.'s 23304, 23306, & 23308
    • Metric Part No.'s 23355, 23356, & 23358

If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565. For a self-service alternative, try our Quick Quote form!

Documents

Envirolox™ Center-Pull Hoist Rings with Standard U-Bar

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Thread Size Load Capacity Thread Size A Base Shape B (In) Thread Length C (In) D (In) E (In) F (In) G (In) H (In) Torque (ft. lbs.) Weight (lbs) Bolt Kit Part Number
23304 icon_cad Inch 1/4-20 In 550 lbs Square 2.67 1/2 0.75 0.43 0.38 1.84 1 5/16 2 0.33 23604-E
23305 icon_cad Inch 5/16-18 In 800 lbs Square 2.67 1/4 0.75 0.43 0.38 1.84 1 1/4 7 0.33 23605-E
23306 icon_cad Inch 5/16-18 In 800 lbs Square 2.67 9/16 0.75 0.43 0.38 1.84 1 1/4 7 0.34 23606-E
23308 icon_cad Inch 3/8-16 In 1000 lbs Square 2.67 9/16 0.75 0.43 0.38 1.84 1 1/4 12 0.35 23608-E
23310 icon_cad Inch 1/2-13 In 2500 lbs Round 3.75 1 1/16 1.2 0.67 0.50 2.56 1 25/32 28 1.15 23610-E
23311 icon_cad Inch 1/2-13 In 2500 lbs Round 4.78 3/4 1.5 0.88 0.75 3.52 2 3/8 28 2.47 23611-E
23312 icon_cad Inch 1/2-13 In 2500 lbs Round 4.78 1 1.5 0.88 0.75 3.52 2 3/8 28 2.51 23612-E
23313 icon_cad Inch 1/2-13 In 2500 lbs Round 4.78 1 1/4 1.5 0.88 0.75 3.52 2 3/8 28 2.5 23613-E
23314 icon_cad Inch 5/8-11 In 4000 lbs Round 4.78 1 1.5 0.88 0.75 3.52 2 1/4 60 2.56 23614-E
23315 icon_cad Inch 5/8-11 In 4000 lbs Round 4.78 1 1/4 1.5 0.88 0.75 3.52 2 1/4 60 2.7 23615-E
23316 icon_cad Inch 5/8-11 In 4000 lbs Round 4.78 3/4 1.5 0.88 0.75 3.52 4 3/16 60 2.44 23616-E
23317 icon_cad Inch 3/4-10 In 5000 lbs Round 4.78 1 1.5 0.88 0.75 3.52 2 1/8 100 3 23617-E
23318 icon_cad Inch 3/4-10 In 5000 lbs Round 4.78 1 1/2 1.5 0.88 0.75 3.52 2 1/8 100 2.7 23618-E
23320 icon_cad Inch 3/4-10 In 7000 lbs Round 6.52 1 2.31 1.4 1.00 5.14 2 15/16 100 7 23620-E
23321 icon_cad Inch 3/4-10 In 7000 lbs Round 6.52 1 1/2 2.31 1.4 1.00 5.14 2 15/16 100 7.6 23621-E
23323 icon_cad Inch 7/8-9 In 8000 lbs Round 6.52 1 2.31 1.4 1.00 5.14 2 13/16 160 7.6 23623-E
23324 icon_cad Inch 7/8-9 In 8000 lbs Round 6.52 1 1/4 2.31 1.4 1.00 5.14 2 13/16 160 7.6 23624-E
23325 icon_cad Inch 1-8 In 10000 lbs Round 6.52 1 1/4 2.31 1.4 1.00 5.14 2 11/16 230 7.5 23625-E
23326 icon_cad Inch 1-8 In 10000 lbs Round 6.52 1 1/2 2.31 1.4 1.00 5.14 2 11/16 230 7.84 23626-E
23327 icon_cad Inch 1-8 In 10000 lbs Round 6.52 2 1/4 2.31 1.4 1.00 5.14 2 11/16 230 7.91 23627-E
23329 icon_cad Inch 1 1/4-7 In 15000 lbs Round 8.73 1 7/8 3.19 1.75 1.25 6.5 4 1/4 470 14.82 23629-E
23329-08 Inch 1 1/4-8 In 15000 lbs Round 8.73 1 7/8 3.19 1.75 1.25 6.5 4 1/4 470 14.7 23629-08E
23333 icon_cad Inch 1 1/2-6 In 24000 lbs Round 12.47 2 3/4 4.19 1.75 1.75 8.55 6 1/2 800 37.8 23633-E
23333-08 Inch 1 1/2-8 In 24000 lbs Round 12.47 2 3/4 4.19 1.75 1.75 8.55 6 1/2 800 28.32 23633-08E
23335 icon_cad Inch 2-4 1/2 In 30000 lbs Round 12.47 3 1/8 4.19 2.25 1.75 8.55 6 1/8 800 40 23635-E
23338 icon_cad Inch 2 1/2-4 In 50000 lbs Round 16.50 4 5.75 3 2.25 11.72 8.5 2100 89 23638-E
23358 icon_cad
23362 icon_cad
Part Number CAD Unit Thread Size Load Capacity Thread Size A Thread Length C (In) B (In) D (In) E (In) F (In) G (In) H (In) Torque (ft. lbs.) Weight (lbs) Bolt Kit Part Number
23312 icon_cad
23321 icon_cad
23324 icon_cad
23327 icon_cad
Part Number CAD Length (In) Thread Size Load Capacity Thread Size A Unit Thread Length C (mm) B (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Torque (Nm) Weight (kgs) Bolt Kit Part Number
23312 icon_cad
23321 icon_cad
23324 icon_cad
23327 icon_cad
23355 icon_cad
23362 icon_cad
23365 icon_cad
23368 icon_cad
23371 icon_cad
23374 icon_cad
23378 icon_cad
23379 icon_cad
23383 icon_cad
23384 icon_cad
23385 icon_cad
23388 icon_cad
Part Number CAD Unit Thread Size Load Capacity Thread Size A Base Shape B (mm) Thread Length C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Torque (Nm) Weight (kgs) Bolt Kit Part Number
23355 icon_cad Metric M6 x 1.0 200 kgs Square 67.8 13.5 19 10.9 9.7 46.7 34 0.6 0.20 23655-E
23356 icon_cad Metric M8 x 1.25 400 kgs Square 67.8 12.5 19 10.9 9.7 46.7 32 1 0.19 23656-E
23358 icon_cad Metric M10 x 1.50 450 kgs Square 67.8 17.5 19 10.9 9.7 46.7 30 1.7 0.20 23658-E
23362 icon_cad Metric M12 x 1.75 1050 kgs Round 123.0 19.0 38.1 22.4 19.0 89.4 60.5 3.8 1.13 23662-E
23365 icon_cad Metric M16 x 2.0 1900 kgs Round 123.0 29.0 38.1 22.4 19.0 89.4 56.5 8.2 1.18 23665-E
23368 icon_cad Metric M20 x 2.5 2150 kgs Round 123.0 34.0 38.1 22.4 19.0 89.4 52.5 13.6 1.25 23668-E
23371 icon_cad Metric M20 x 2.5 3000 kgs Round 163.0 32.0 58.7 35.6 25.4 130.6 73 13.6 3.17 23671-E
23374 icon_cad Metric M24 x 3.0 4200 kgs Round 163.0 37.0 58.7 35.6 25.4 130.6 69 31 3.54 23674-E
23378 icon_cad Metric M30 x 3.5 7000 kgs Round 221.7 46.0 81 44.5 31.7 165.1 107.4 60 6.35 23678-E
23379 icon_cad Metric M30 x 3.5 7000 kgs Round 221.7 66.0 81 44.5 31.7 165.1 107.4 60 6.70 23679-E
23383 icon_cad Metric M36 x 4.0 11000 kgs Round 316.7 68.0 106.4 57.2 44.4 217.2 166.5 100 17.23 23683-E
23384 icon_cad Metric M42 x 4.5 12500 kgs Round 316.7 68.0 106.4 57.2 44.4 217.2 160.5 100 14.97 23684-E
23385 icon_cad Metric M48 x 5.0 13500 kgs Round 316.7 88.0 106.4 57.2 44.4 217.2 154.5 100 16.33 23685-E
23388 icon_cad Metric M64 x 6.0 22500 kgs Round 419.1 96.0 146 76.2 57.15 297.6 210 290 40.36 23688-E
