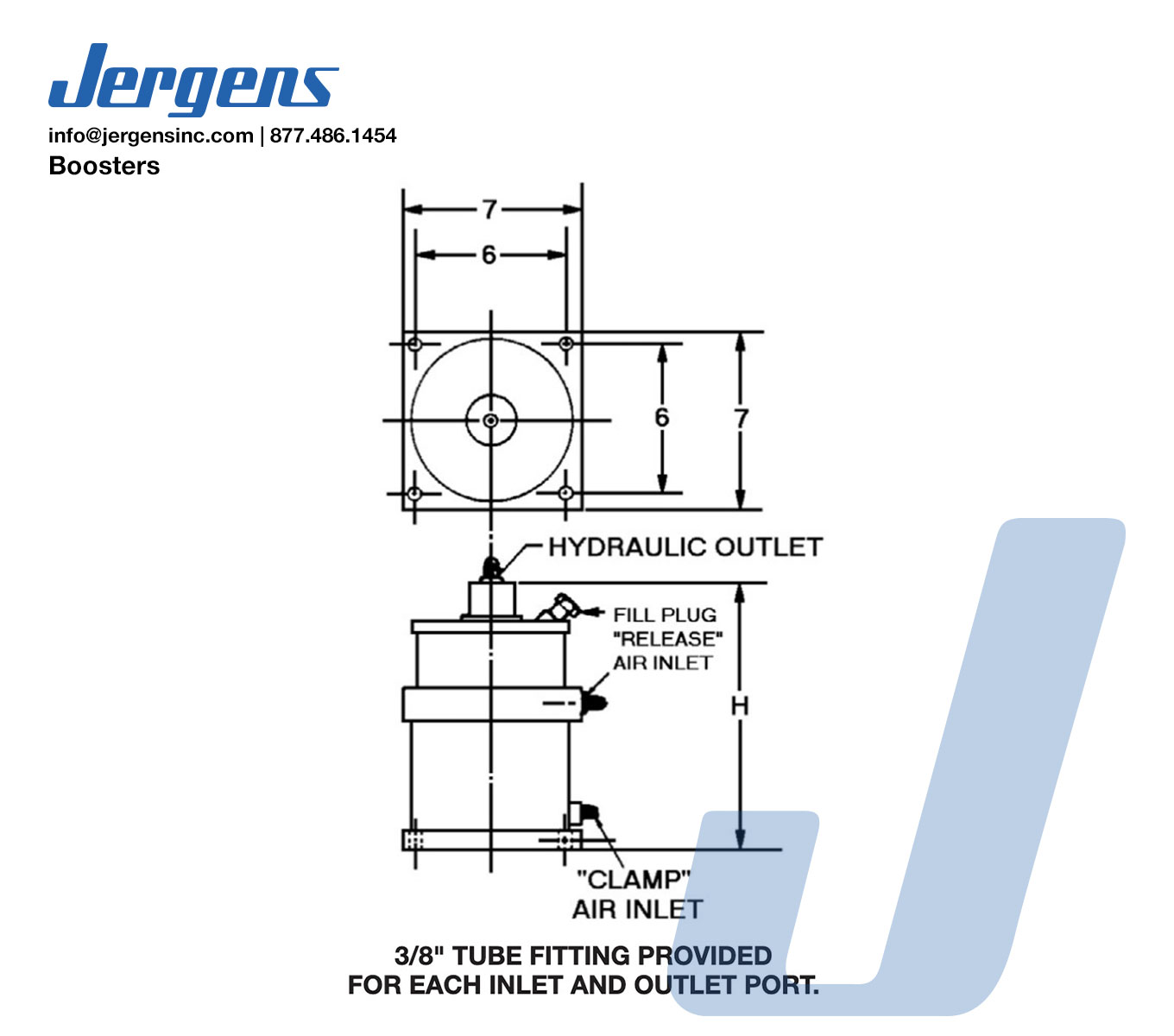

Boosters
Jergens Boosters are ideal for permanent fixtures, special machines, or O.E.M. applications. The volume of oil available to operate the work circuit depends upon the high-pressure capacity of the booster. Work circuits using standard boosters require manual bleeding.
Features, Benefits, & Product Specifications:
-
Easy to view reservoir
-
15:1 and 30:1 boost ratios available
-
May be mounted vertically or horizontally
Documents
Boosters
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Reservoir Capacity (cu. in.) | High Pressure Volume (cu. in.) | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Height (In) | Weight (lbs) | Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 61709 |
|
Inch | 15 | 4 | 20 | 125 | 15:1 | 1875 | 10 7/16 | 20 | 62109 |
| 61710 |
|
Inch | 15 | 7 1/2 | 20 | 125 | 15:1 | 1875 | 14 7/16 | 24 | 62109 |
| 61711 |
|
Inch | 18 | 3 3/4 | 20 | 125 | 30:1 | 3750 | 14 7/16 | 22 | 62110 |
