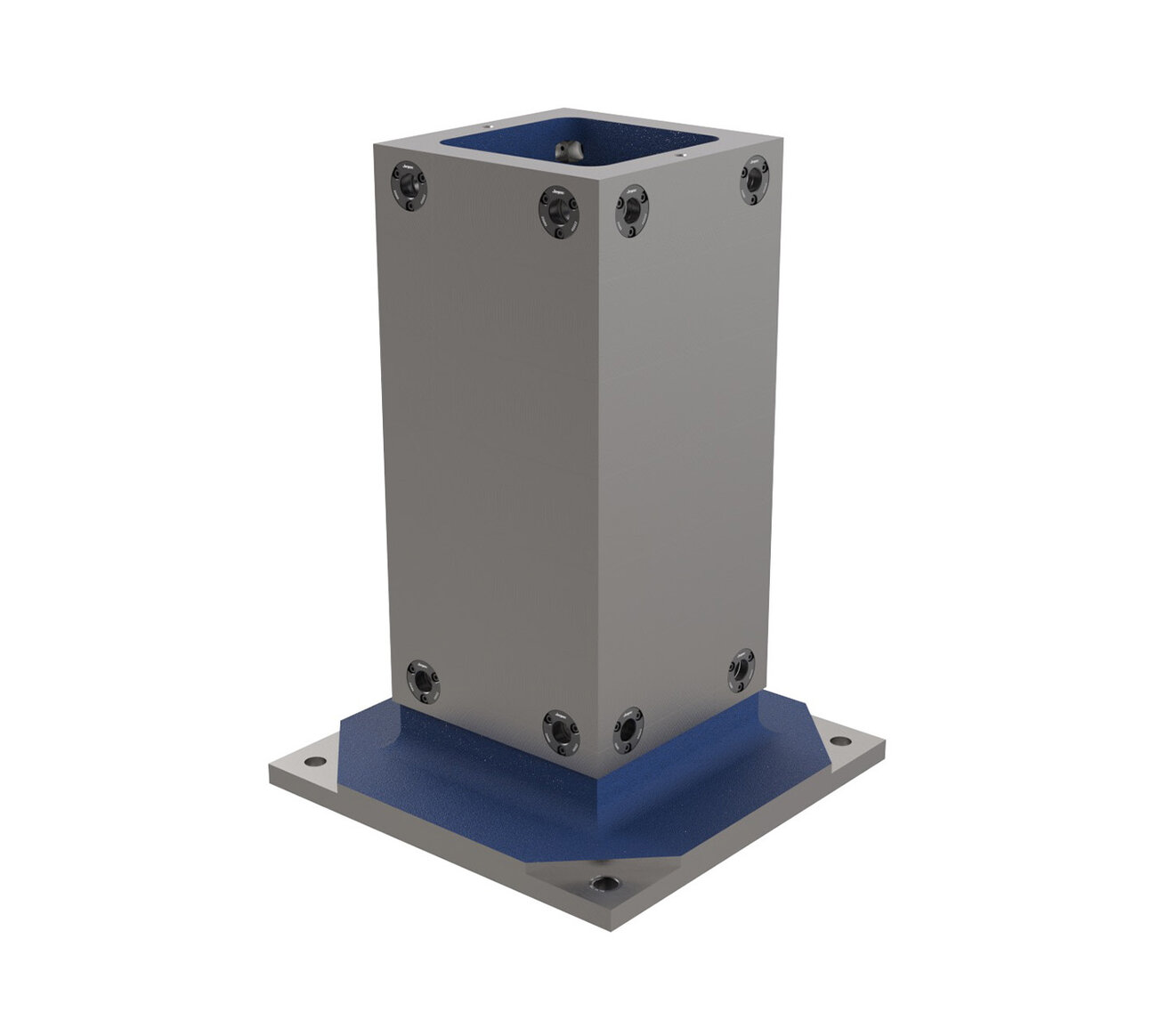

Ball Lock® 4-Sided Tooling Columns
Jergens Ball Lock® Tooling Columns provide an accurate fixturing base for CNC machining centers.
Features, Benefits, & Product Specifications:
-
Material: Class 40 Cast Iron (also available in Aluminum)
-
Ball Lock® Receiver Bushings & Liners installed
-
Perpendicularity is 0.001" per foot (0.025mm per 250mm)
-
Order Hoist Ring (Part No. 23411) for lifting & handling
Custom Sizes Available with or without Ball Lock®
We are able to quote you on your special requirement with or without the Ball Lock® Mounting System. Call 1 (877) 426-2504 for design specification information.
Ball Lock® 4-Sided Tooling Columns
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Pallet Size (mm) | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | L (In) | M (In) | N (In) | O (mm) | P (mm) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69001 |
|
Inch | 400 | 10 | 10 | 20 | 1 | 16 | 16 | 18 | 6.75 | 14 | 14 | 1.75 | 23.875 | 4.875 | 3.875 | 20 | 20 | 510 |
| 69011 |
|
Inch | 500 | 12 | 12 | 25 | 1 | 20 | 20 | 22 | 8 | 17 | 17 | 1.625 | 28.875 | 5.375 | 3.875 | 25 | 25 | 736 |
| 69021 |
|
Inch | 630 | 16 | 16 | 26 | 1.5 | 25 | 25 | 23 | 11.5 | 21 | 21 | 2 | 29.875 | 5.375 | 3.875 | 35 | 25 | 1122 |
| Part Number | CAD | Unit | Pallet Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | O (mm) | P (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69001 |
|
|||||||||||||||||||
| 69051 |
|
Metric | 400 | 250 | 250 | 505 | 25 | 400 | 400 | 450 | 150 | 350 | 350 | 40 | 600 | 125 | 95 | 20 | 20 | 225 |
| 69061 | Metric | 500 | 300 | 300 | 630 | 25 | 500 | 500 | 550 | 175 | 425 | 425 | 40 | 725 | 137.5 | 95 | 25 | 25 | 320 | |
| 69071 |
|
Metric | 630 | 400 | 400 | 655 | 40 | 630 | 630 | 575 | 275 | 525 | 525 | 45 | 750 | 137.5 | 95 | 35 | 25 | 495 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
