6" (150mm) Production Vises

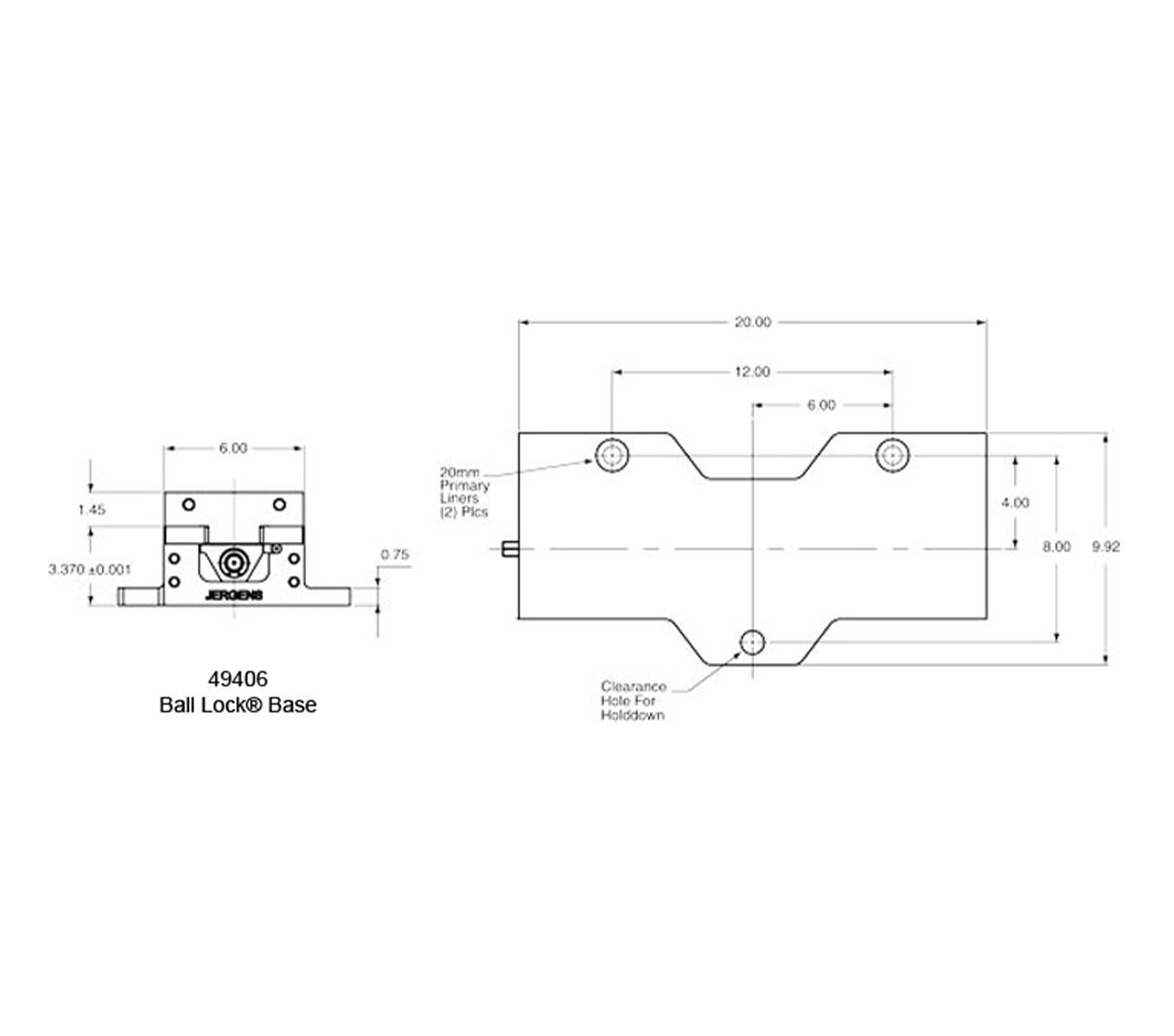

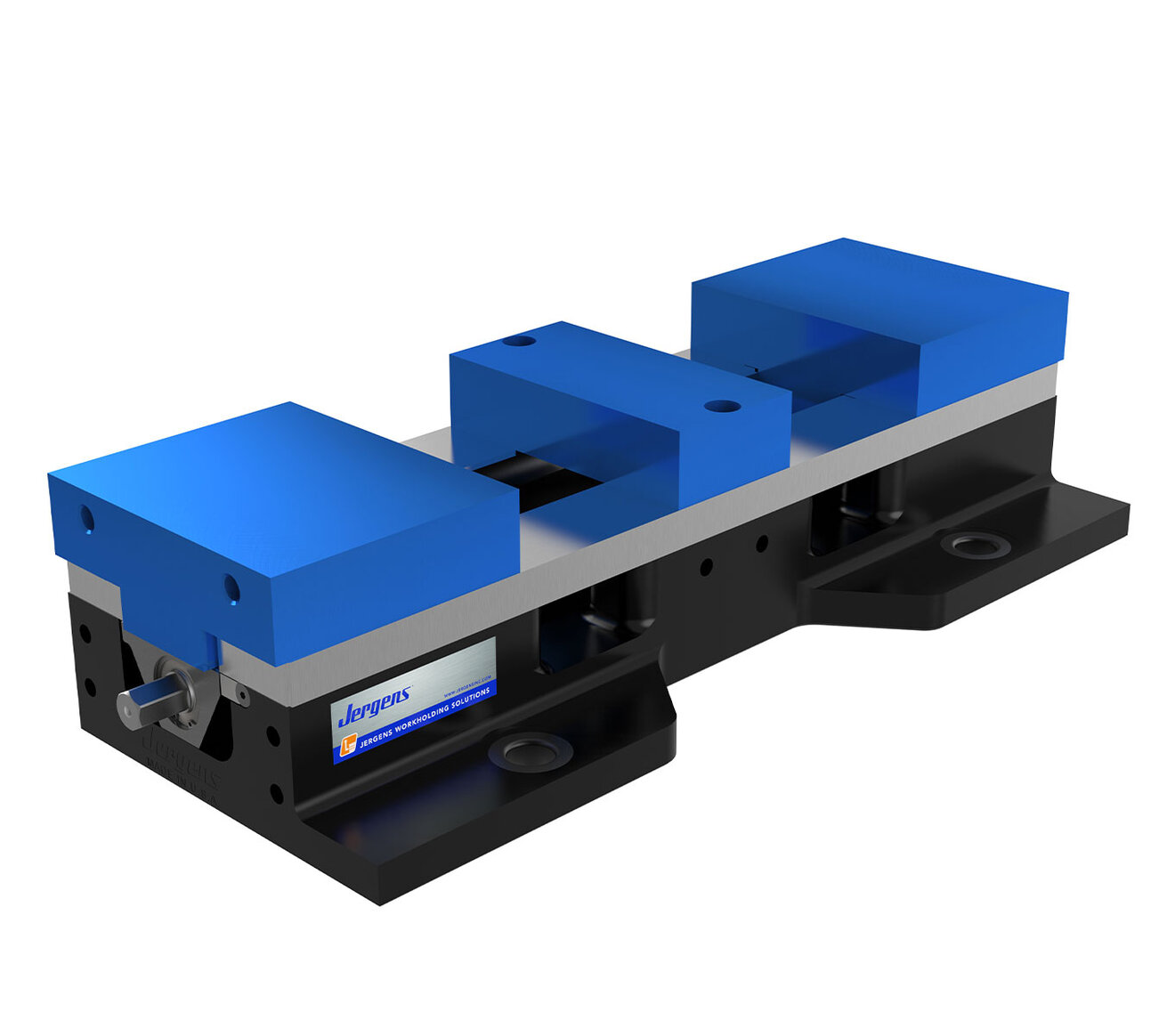

Ball Lock® Base Production Vises:
Integrate with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on Ball Lock® subplates.

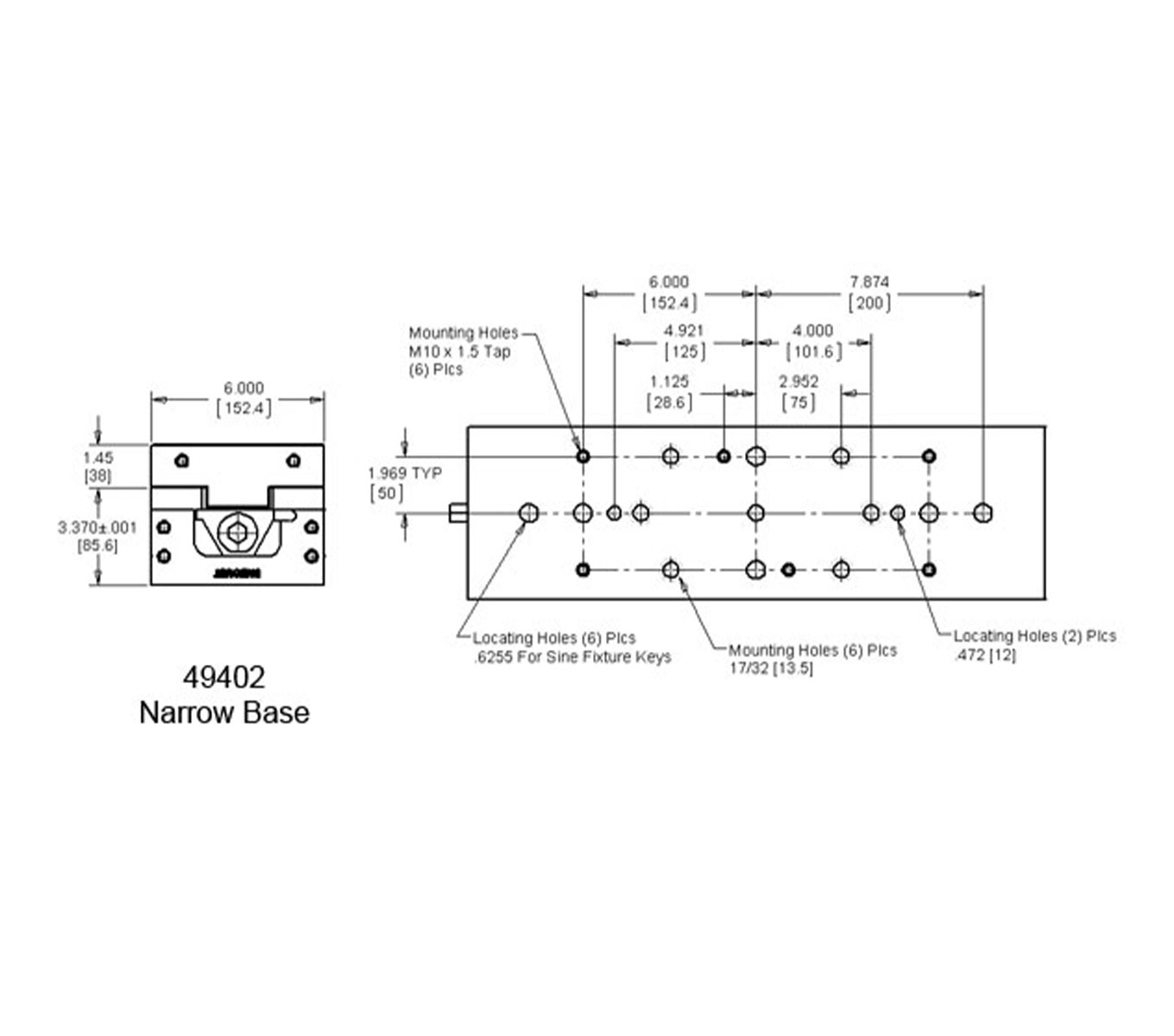

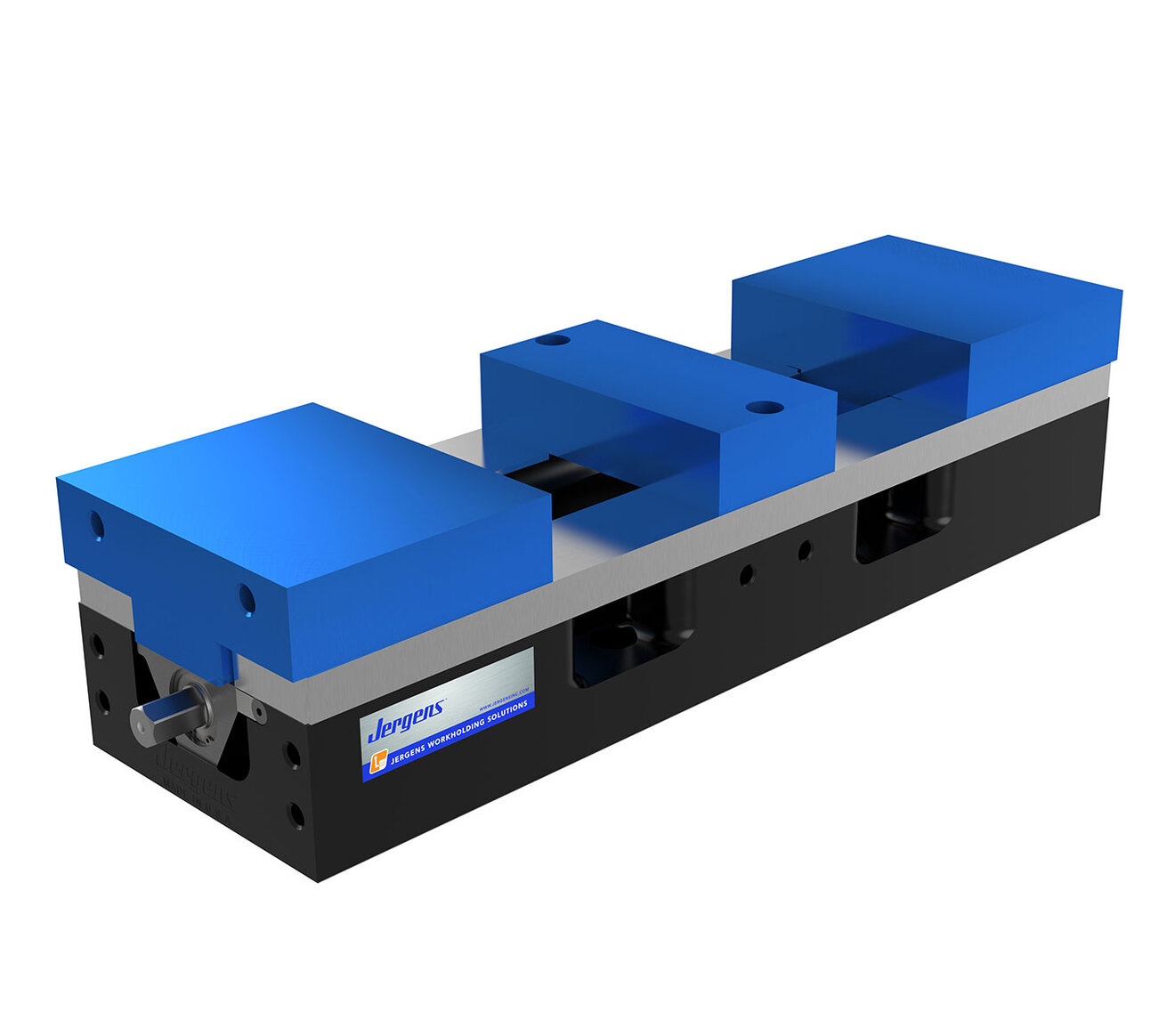

Narrow Base Production Vises:
Designed for stand alone or fixture plate mounting. Their slim design enables high density mounting.

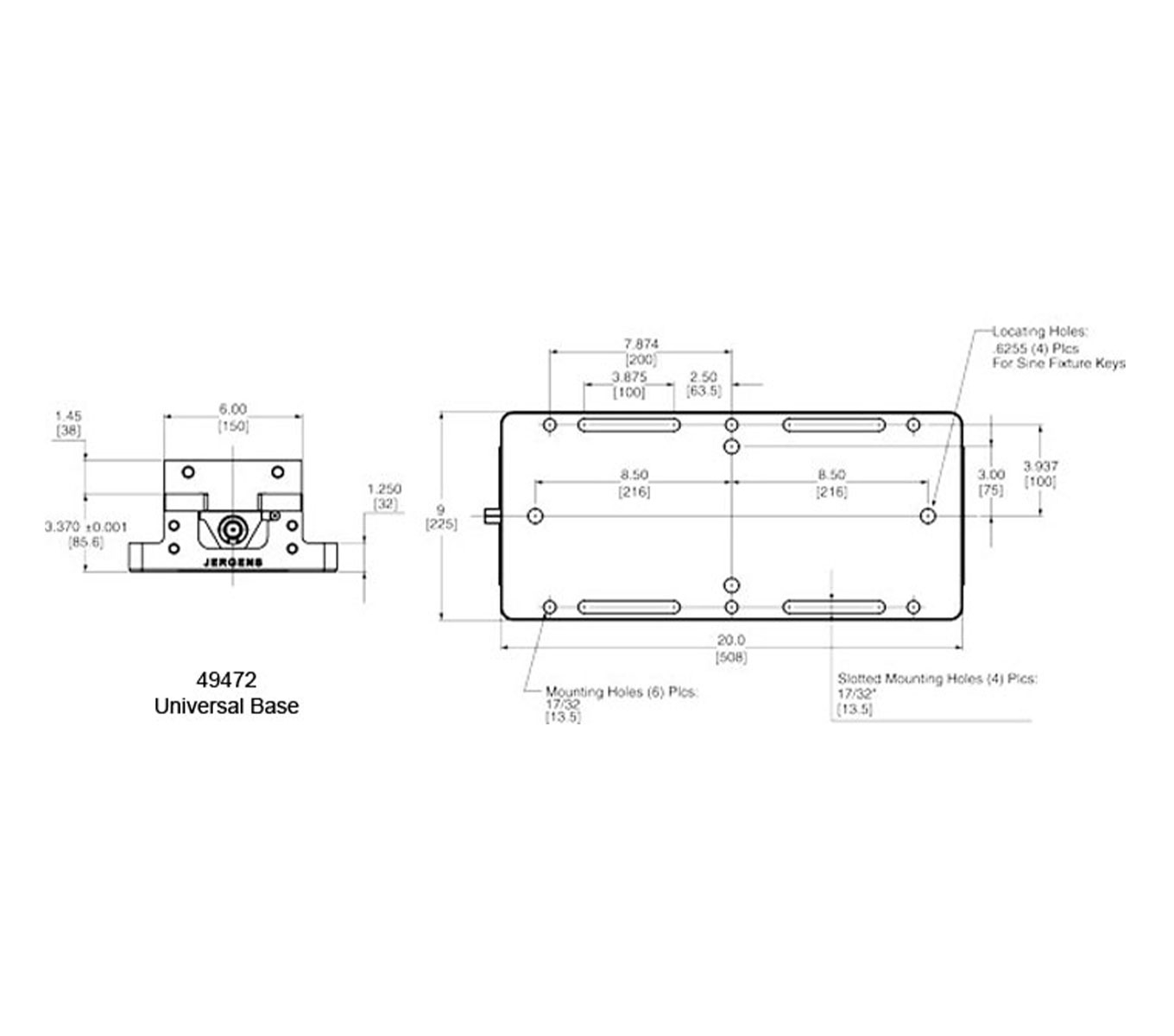

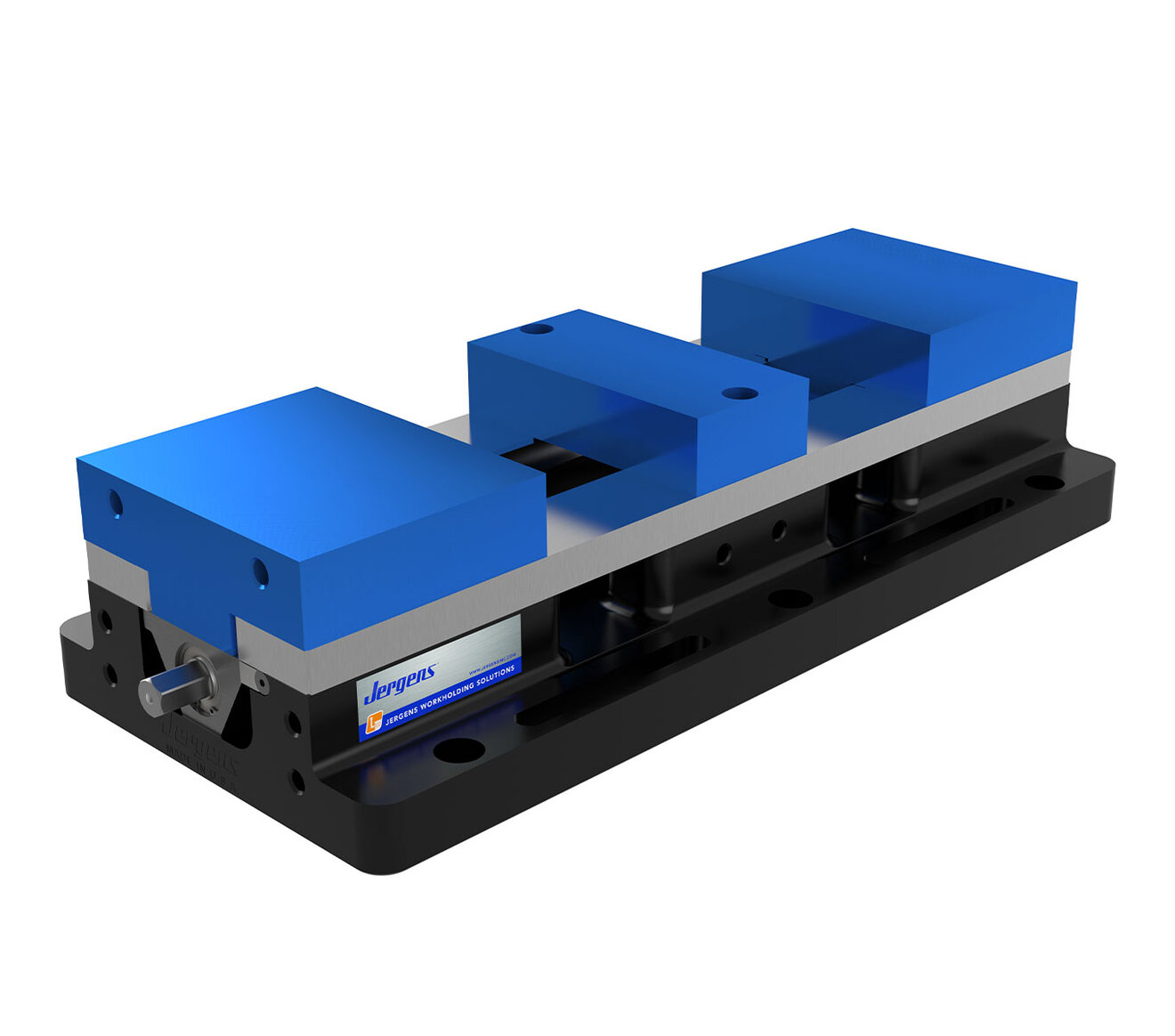

Universal Base Production Vises:
Easy to mount directly to machine tables. Their slotted mounting holes fit most machines.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Fully sealed, patented lead screw assembly for long maintenance free service
-
Openings allow chips to flow out of the vise base
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Supplied with fully machineable & reversible aluminum soft jaws

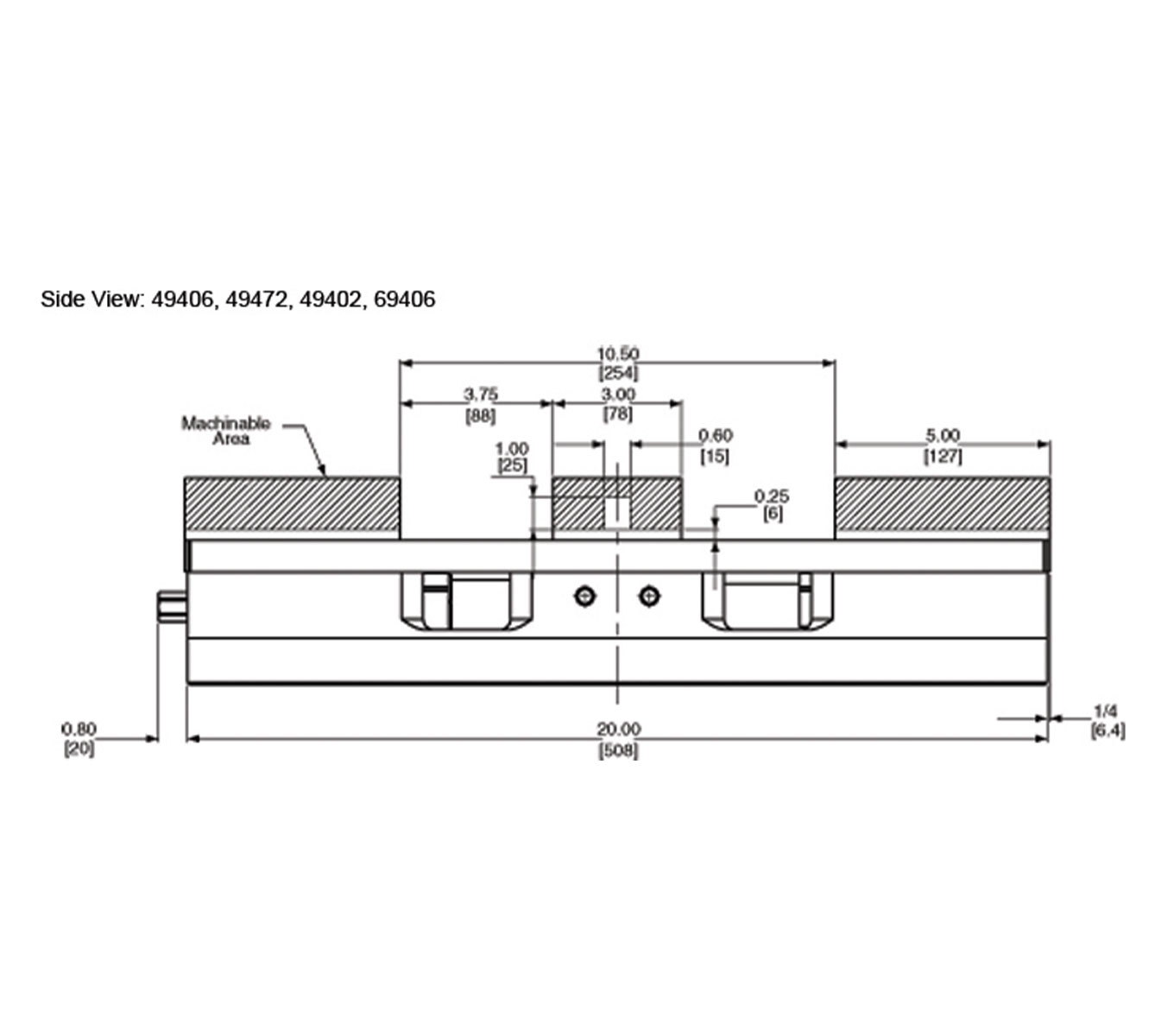

6" (150mm) Production Vises
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base Type | Length (In) | Height (In) | Width (In) | Self-Centering Vise Part Number | Hydraulic Vise Part Number | Ball-Lock Shank Part Number | Shank Size | Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|
49402 | Inch | Narrow Base | 20 | 3.370 | 6 | 49402SC | 49488 | - | - | 66 | |
49406 | Inch | Ball Lock® Base | 20 | 3.370 | 9.92 | 49406SC | 49486 | 49601 | 20mm x 3/4" | 68 | |
49472 | Inch | Universal Base | 20 | 3.370 | 9 | 49472SC | 49484 | - | - | 68 |
Part Number | CAD | Unit | Base Type | Length (mm) | Height (mm) | Width (mm) | Self-Centering Vise Part Number | Hydraulic Vise Part Number | Ball Lock Shank Part Number | Shank Size | Weight (kgs) |
---|---|---|---|---|---|---|---|---|---|---|---|
69406 | Metric | Ball Lock® Base | 508 | 85.6 | 250 | 69406SC | 49488 | 49651 | 20mm x 20mm | 31 |
Documents and Videos
- Operating Manual
- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
