37° Flare Fittings
Jergens 37° Flare Fittings are a type of mechanical tube fitting used to connect tubes and hoses in hydraulic and pneumatic systems.
Features, Benefits, & Product Specifications:
-
High resistance to vibration
-
Excellent sealing capability
-
Easy assembly & disassembly
Documents
37° Flare Fittings
Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Type | Tube |
---|---|---|---|---|

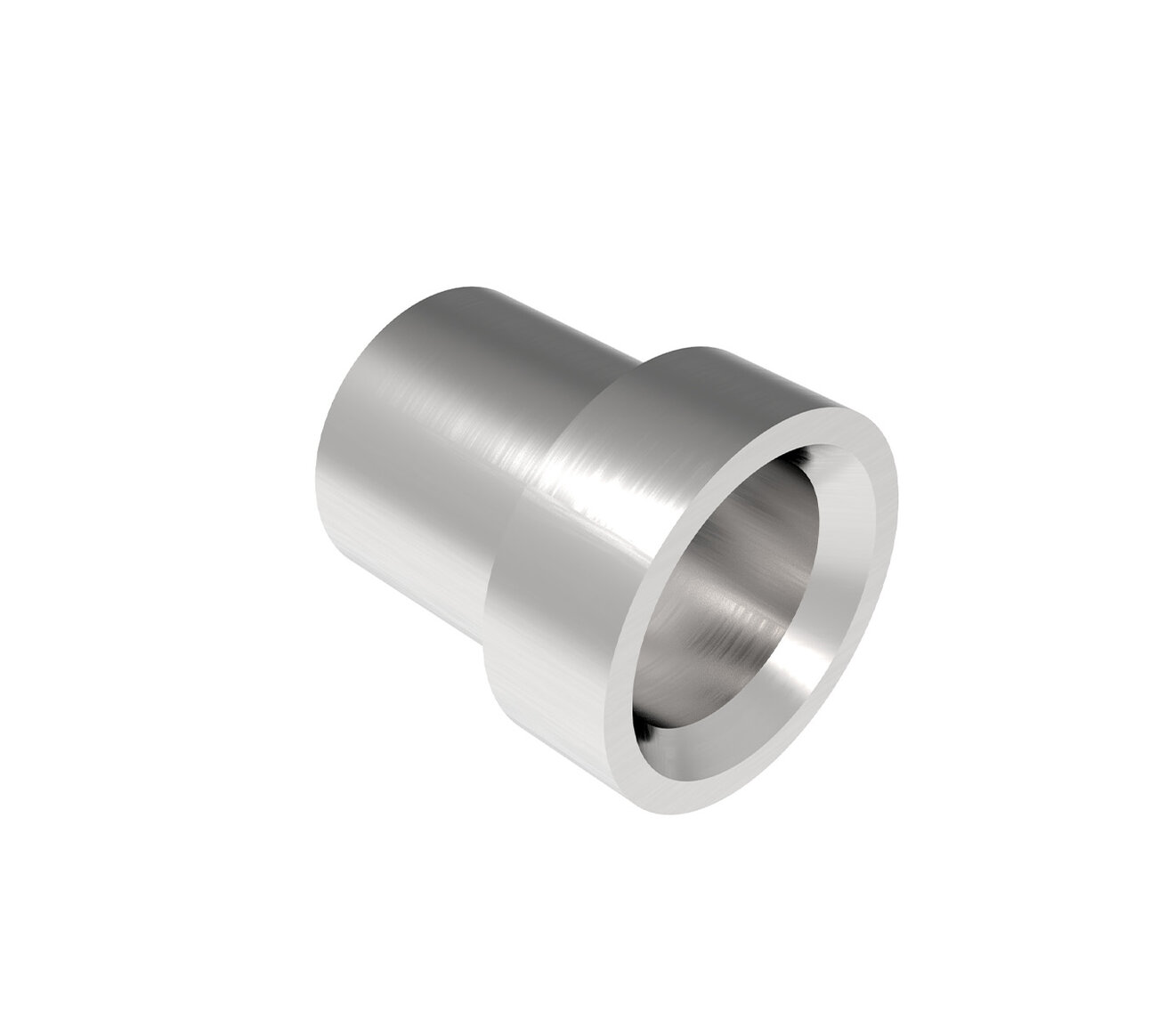

61001 | Inch | Sleeve | 1/4 | |
61002 | Inch | Nuts | 1/4 | |
61015 | Inch | Sleeve | 3/8 | |
61016 | Inch | Nuts | 3/8 | |
61049 | Inch | Sleeve | 1/2 | |
61050 | Inch | Nuts | 1/2 | |
61056 | Inch | Caps | 1/4 | |
61057 | Inch | Caps | 3/8 | |
61058 | Inch | Plugs | 1/4 | |
61063 | Inch | Reducer | 1/4 Tube 3/8 Female |
